Description

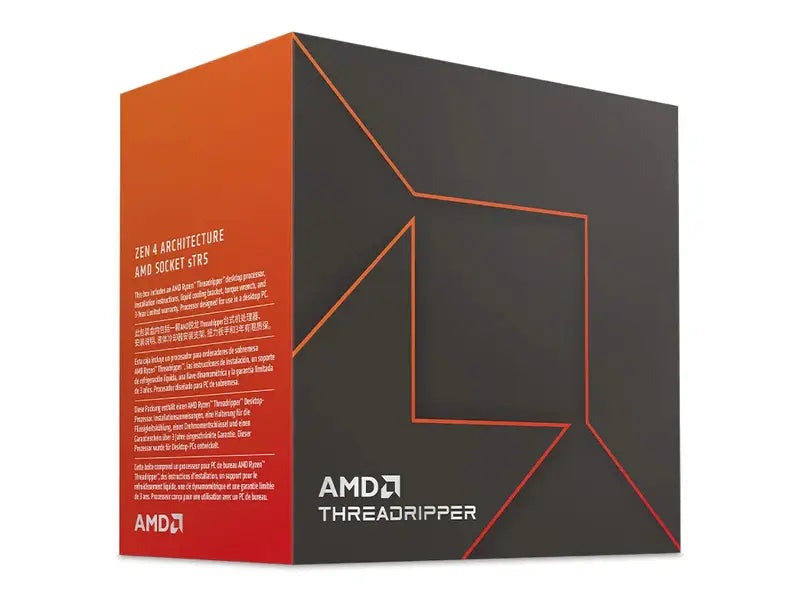

AMD Ryzen Threadripper 7970X 32-Core sTR5 Unlocked CPU Processor
General Specifications |
|
---|---|
Platform | Desktop |
Market Segment | Enthusiast Desktop |
Product Family | AMD Ryzen™ Processors |
Product Line | AMD Ryzen™ Threadripper™ Processors |
AMD PRO Technologies | No |
Commercial Use | No |
Regional Availability | Global |
Former Codename | "Storm Peak" |
Architecture | "Zen 4" |
# of CPU Cores | 32 |
Multithreading (SMT) | Yes |
# of Threads | 64 |
Max. Boost Clock | Up to 5.3GHz |
Base Clock | 4.0GHz |
L1 Cache | 2MB |
L2 Cache | 32MB |
L3 Cache | 128MB |
Default TDP | 350W |
Processor Technology for CPU Cores | TSMC 5nm FinFET |
Processor Technology for I/O Die | TSMC 6nm FinFET |
CPU Compute Die (CCD) Size | 71mm² |
I/O Die (IOD) Size | 388mm² |
Package Die Count | 5 |
Unlocked for Overclocking | Yes |
AMD EXPO™ Memory Overclocking Technology | Yes |
Precision Boost Overdrive | Yes |
Curve Optimizer Voltage Offsets | Yes |
CPU Socket | sTR5 |
Supporting Chipsets | TRX50 |
CPU Boost Technology | Precision Boost 2 |
Instruction Set | x86-64 |
Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
Thermal Solution (PIB) | Not included |
Thermal Solution (MPK) | NA |
Max. Operating Temperature (Tjmax) | 95°C |
Launch Date | 10/19/2023 |
*OS Support | Windows 11 - 64-Bit Edition |
RHEL x86 64-Bit | |
Ubuntu x86 64-Bit | |
*Operating System (OS) support will vary by manufacturer. | |
Connectivity |
|
USB Type-C® Support | No |
Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
Native SATA Ports | 2 |
PCI Express® Version | PCIe 5.0 |
Native PCIe® Lanes (Total/Usable) | 92 / 88 |
NVMe Support | Boot, RAID0, RAID1, RAID10, RAID5 |
System Memory Type | DDR5 |
Memory Channels | 4 |
System Memory Subtype | RDIMM |
System Memory Specification | Up to 5200MT/s |
ECC Support | Yes (Default Enabled) |
Graphics Capabilities |
|
Integrated Graphics | No |
Graphics Model | Discrete Graphics Card Required |
USB Type-C® DisplayPort™ Alternate Mode | n/a |
Product IDs |
|
Product ID Boxed | 100-100001351WOF |
Product ID Tray | 100-000001351 |
Security, Virtualization, and Manageability |
|
DASH support | Yes |
AMD Memory Guard | Yes |
AMD Secure Processor Support | Yes |
Windows Secure Boot Support | Yes |
UEFI Secure Boot Support | Yes |
Windows Device Guard Support | Yes |
Guest Mode Execution (GMET) Trap Support | Yes |
Virtualization-Based Security (VBS) Support | Yes |
Windows Secured-Core PC Support | Yes |
Firmware TPM | Yes |
AMD-V (SVM) Support | Yes |
AMD-V Nested Paging (RVI) Support | Yes |
AMD AVIC (Interrupt Virtualization) Support | Yes |
AMD-Vi (I/O MMU Virtualization) Support | Yes |
Second Level Address Translation (SLAT) Supported | Yes |
Advanced Encryption Standard New Instructions (AES-NI) | Yes |
AMD Enhanced Virus Protection (NX bit) | Yes |
FIPS Certification | In Review |
Key Features |
|
Supported Technologies | AMD EXPO™ Technology |
AMD Ryzen™ Technologies |
