Description
Overview

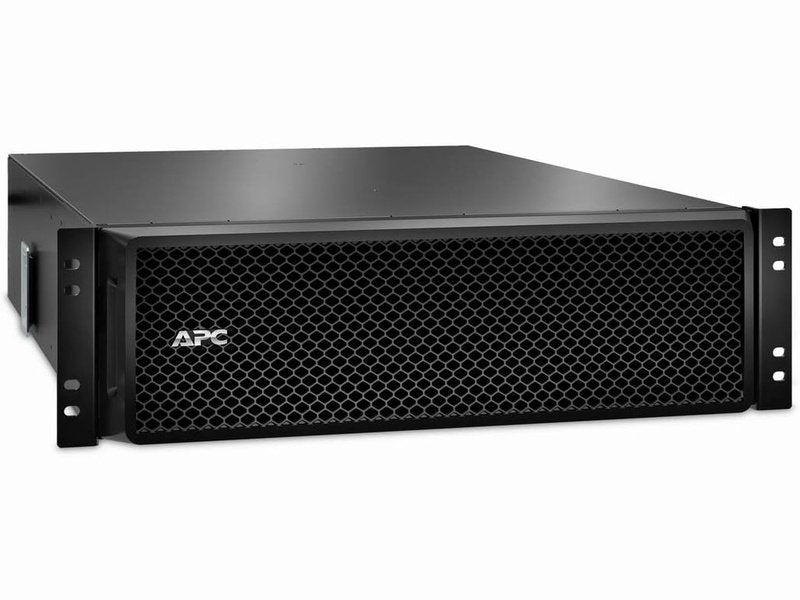

This product is part of the Smart-UPS battery systems, providing extended runtime to SRT mission critical applications. This extendable-run battery pack provides extended runtime during prolonged power outages. Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health. It is a lead-acid battery with a 2-year warranty. Its dimensions are 683mm (depth) x 432mm (height) x 130mm (width) and weighs 91.0kg. Ideal for Smart-UPS on-line mission critical applications. It conforms to OSHPD.
Specifications
This product is part of the Smart-UPS battery systems, providing extended runtime to SRT mission critical applications. This extendable-run battery pack provides extended runtime during prolonged power outages. Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health. It is a lead-acid battery with a 2-year warranty. Its dimensions are 683mm (depth) x 432mm (height) x 130mm (width) and weighs 91.0kg. Ideal for Smart-UPS on-line mission critical applications. It conforms to OSHPD.
Specifications
Number of rack unit | 3U |
---|---|
Battery Type | Lead-Acid battery |
Provided Equipment | Installation guide Warranty card Rack Mounting brackets |
Battery Slots Empty | 0 |
Included Battery Modules | 0 |
Device mounting | Stand alone battery stack |
Battery Voltage | +/- 192 V |
RBC Quantity | 2 |
Replacement battery | APCRBC140 |
Color | Black |
Height | 5.12 in (13 cm) |
Width | 17.01 in (43.2 cm) |
Depth | 26.88 in (68.27 cm) |
Net Weight | 200.62 lb(US) (91 kg) |
Mounting Mode | Rack-mounted |
Standards | OSHPD |
Ambient Air Temperature for Operation | 32…104 °F (0…40 °C) |
Operating altitude | 0...10000 ft |
Relative Humidity | 0…95 % non-condensing |
Ambient Air Temperature for Storage | 5…113 °F (-15…45 °C) |
Storage altitude | 0…50000 ft (0.00…15240.00 m) |
Storage Relative Humidity | 0…95 % non-condensing |
GTIN | 731304292753 |
Country of origin | PH |
Unit Type of Package 1 | PCE |
Number of Units in Package 1 | 1 |
Package 1 Height | 16.54 in (42 cm) |
Package 1 Width | 23.62 in (60 cm) |
Package 1 Length | 39.37 in (100 cm) |
Package 1 Weight | 232.59 lb(US) (105.5 kg) |
