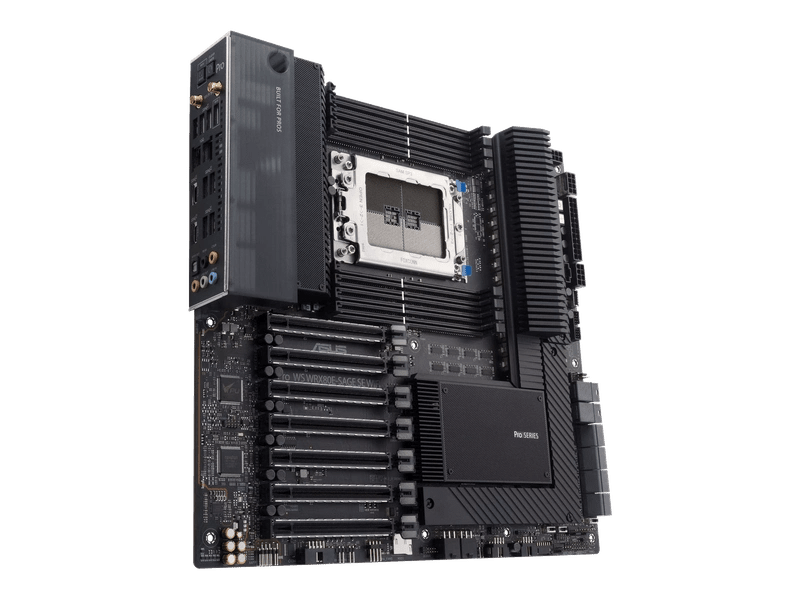

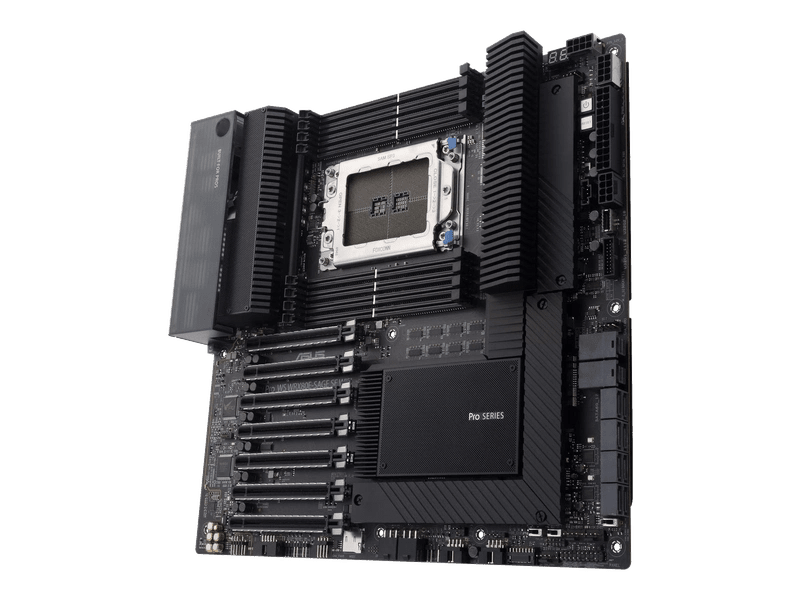

ASUS AMD Pro WS WRX80E-SAGE SE WIFI Workstation Motherboard

ASUSSKU: PRO WS WRX80E-SAGE SE WIFI

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$1,972.00
Contact Us for ETA

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Overview

AMD WRX80 Ryzen™ Threadripper™ PRO extended-ATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages
  • AMD sWRX8 socket: Ready for AMD Ryzen™ Threadripper™ PRO Series Processors
  • Ultrafast connectivity: USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card and Intel® X550-AT2 dual 10Gb Ethernet
  • ASMB9-iKVM remote management: BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency
  • Powerful performance: 16 power stages, multi-GPU support and R-DIMM memory support
  • Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security

Ultimate power for professional productivity

ASUS Pro WS WRX80E-SAGE SE WIFI is engineered to unleash the incredible power of the latest AMD® Ryzen® Threadripper™ Pro series processors and is a reliable foundation for professional creative workloads that benefit from multi-core CPUs, such as video editing and 3D rendering. Additionally, seven PCIe 4.0 slots with SafeSlot fortification deliver exceptional performance with the latest high-power graphics cards.

Low-profile professionalism​​

With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS WRX80E-SAGE SE WIFI presents a professional, low-profile look for content creators.​

Multi-GPU support

Pro WS WRX80E-SAGE SE WIFI features seven PCIe® 4.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling and simulation, and rendering applications.

3 M.2 PCIe 4.0

Pro WS WRX80E-SAGE SE WIFI includes three M.2 and two U.2 slots wired to PCIe 4.0 x4 bandwidth. Creators working with massive video files can RAID together multiple NVMe devices for massive I/O bandwidth and seamless playback in their editing bays. These three slots rest under dedicated heatsinks to prevent SSD throttling under heavy loads.

More storage

With NVMe RAID support for Ryzen™ Threadripper™ PRO processors, unused CPU PCIe® 4.0 lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs to provide incredible throughput — up to 8x faster than individual PCIe® 3.0 x4 SSDs. RAID can also be configured with PCIe® 3.0 SSDs.

* With included ASUS Hyper M.2 x16 Gen 4 card. RAID is limited to a maximum of 10 NVMe SSDs on the AMD WRX80 platform.

ECC memory support

AMD Ryzen™ Threadripper™ PRO processors offer unrivaled memory bandwidth and supports 8 memory channels, up to 2048 GB. It supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure your creativity consistency and stability.

Intel® WiFi 6

The Intel® WiFi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

16 Power stages

Pro WS WRX80E-SAGE SE WIFI’s VRM is comprised of 16 power stages, delivering the power and efficiency that the latest AMD processors demand.

6-pin Power connectors

Two additional PCIe 6-pin power connectors can add power output stability when creators use many graphic cards onboard.

Actively cooled heatsink

The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path. The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan.

* L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum.
M.2 heatsinks

Three M.2 slots are covered by heatsinks to combat
temperature-induced throttling that can affect performance during heavy, sustained storage loads.

Side-mounted connectors

Unique side-mounted connectors on the front-panel of the chassis keep cables away from the graphics cards and provide cleaner routing, easier management and a streamlined installation process.

Pre-mounted I/O shield

The patented I/O shield is finished in sleek matte black and comes pre-mounted for easy installation on the motherboard and is designed to allow air flow to keep the heat away from the board.

BIOS Flashback™

Users can place a BIOS file onto a FAT32-formatted USB drive and simply plug it into the USB BIOS FlashBack™ port and press a button to update the (UEFI) BIOS. Updates can be made even if memory or CPU aren't present.


Specifications


Model Pro WS WRX80E-SAGE SE WIFI
News & Updates Socket sWRX8
CPU AMD Socket sWRX8 for AMD Ryzen™ Threadripper™ PRO Series Processors*
* Refer to www.asus.com for CPU support list.
Chipset AMD WRX80 Chipset
Memory 8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, 3DS R-DIMM and LR-DIMM Memory*
8 Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Expansion Slots AMD Ryzen™ Threadripper™ PRO Series Processors
7 x PCIe 4.0/3.0 x16 slot(s)*
* Support PCIe bandwidth bifurcation for RAID on CPU function.
Multi-GPU Support Supports NVIDIA 4-Way/3-Way/2-Way SLI® Technology
Storage Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports
AMD Ryzen™ Threadripper™ PRO Series Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices*
AMD WRX80 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices*
4 x SATA 6Gb/s ports
ASMedia ASM1061 Controller
4 x SATA 6Gb/s ports
Supports NVMe RAID configurations via M.2 storages
*The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately.
Ethernet 1 x Intel® X550-AT2 dual 10Gb Ethernet
Wireless & Bluetooth Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2
USB Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)

Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®)
1 x Wi-Fi Module
2 x Intel® X550-AT2 dual 10Gb Ethernet ports
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
6 x 4-pin Chassis Fan header(s)
1 x VRM heatsink Fan header
1 x Chipset Fan header

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
2 x 6-pin PCIe Graphics Card connector
1 x 8-pin PCIe Power connector

Storage related
3 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
2 x U.2 slots

USB
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

BMC Related
1 x BMC switch
1 x IPMI switch
1 x Messange LED header
1 x Micro SD card socket
2 x LAN LED header(s)
1 x Location LED header
1 x Location button header
1 x PSU_SMB header
1 x SMART_PSU switch
1 x VGA switch
1 x VGA header
1 x VPP_I2C header

Miscellaneous
1 x COM Port header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x Start button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x RTC Battery header
1 x Thermal Sensor header
Special Features ASUS Q-Design
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink

ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot

Bespoke Motherboard Design & Business Focused Features
- Event Log in ASMB9-iKVM
- 24/7 Reliability
- Overcurrent Protection
ASMB9-iKVM for KVM-over-Internet
Software Features ASUS Exclusive Software
Armoury Crate
ASUS CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS:X® Ultra
Norton Anti-virus software (Free Trial version)
WinRAR

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
6 x SATA 6Gb/s cables
1 x VGA cable

Miscellaneous
1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
1 x Hyper M.2 X16 Gen 4 Card
4 x M.2 Rubber Package(s)
6 x M.2 SSD screw package(s)
1 x Q-connector

Installation Media
1 x Support DVD

Documentation
1 x User manual
Operating System Windows® 10 64-bit
Form Factor EATX(EEB) Form Factor
12.2 inch x 13 inch (30.98 cm x 33.02 cm)
