Description

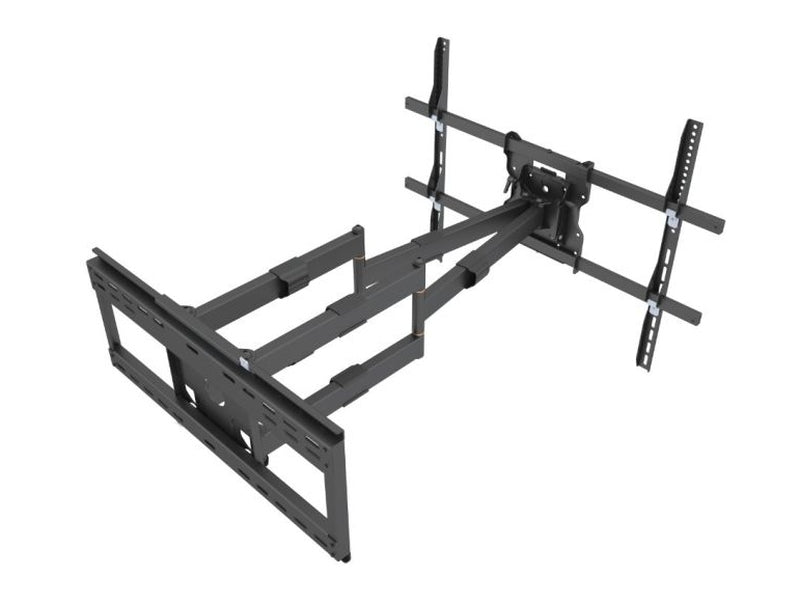

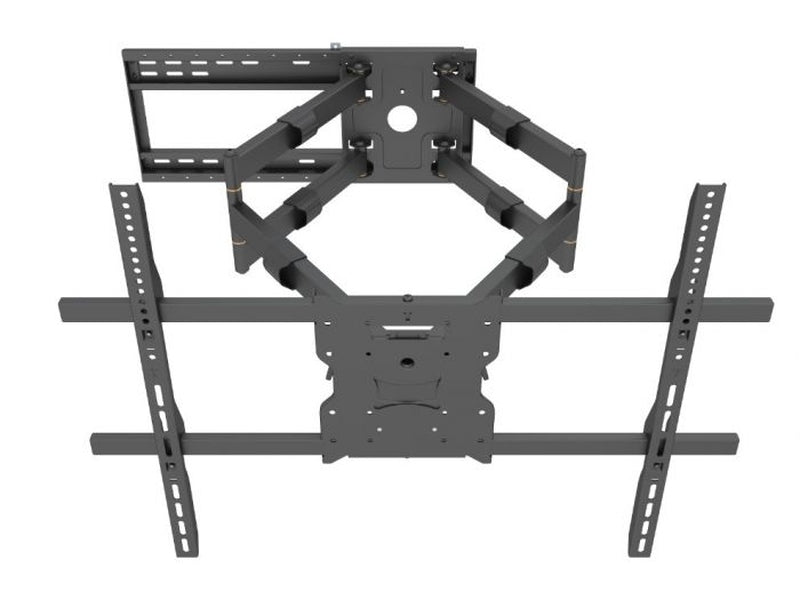

Atdec AD-WM-9080 Full Motion Wall Mount Up To 90Kg, VESA up to 800x600
AD-WM-9080 is designed for large and/or heavy displays, in installations requiring full motion and extremely long arm extension. AD-WM-9080 enables the lateral shift of the centre of the display, upward and downward tilt, and rotational display adjustment – plus almost a metre extension from the wall. The mount accommodates use on stud walls with 24” stud spacing.
This mount is rated for 90.7kg (200lbs) displays and a recommended size of 50” to 100”. When used with displays at the lower end of the size range, even greater freedom of movement is available.
AD-WM-9080’s flexibility starts with precise display positioning, due to its +/- 200mm (+/- 7.9”) lateral shift capability. Lateral shift is done during installation or while the display is dismounted. Once installed, the AD-WM-9080 sits 110mm (4”) from the wall and can extend to a maximum distance of 980mm (39”). The mounted display can pan +/- 90°, tilt +5° to -10° upward and downward, and rotationally adjust +/- 5° for optimal audience viewing. Standard VESA patterns 100x100 to 200x200 are expanded on with universal mounting patterns to 800x600. These features make AD-WM-9080 one of the most versatile and adaptive full motion wall mounts available.
Constructed primarily of steel for heavy duty operation and long service life, AD-WM-9080 is finished in black and has integrated cable management. It suits commercial, retail, domestic, and light industrial environments, and serves virtually all applications. Curved and displays with offset VESA exert different force that may affect the stated weight range - contact Atdec with any questions. 10 year warranty.
Designed for easy installation, AD-WM-9080 arrives pre-assembled with all display mounting fasteners. Wall mounting hardware is not included.
Key features:
- Arm extension to 980mm (39”) from wall
- Lateral shift during installation
- Pan, up/down tilt, and rotational adjustment with display mounted
- Integrated cable management
- VESA mounting pattern 100x100 to 800x600
- Pre-assembled for quick and easy installation
- 10 year warranty
Specifications
Product Description | Atdec AD-WM-9080 mounting kit - full-motion - for LCD display - black |
Product Type | Mounting kit (full-motion) |
Mounting Components | Wall mount, 39" extension arm |
Adjustable Depth | 11-98 cm |
Tilt | -10? to 5? |
Pan | -90? to 90? |
Rotation | -5? to +5? |
Adjustments | Pan, tilt, swivel, depth |
Recommended Use | LCD display |
Recommended Display Size | 50"-100" |
VESA Mounting Interface | 100 x 100 mm, 200 x 200 mm, 400 x 300 mm, 400 x 200 mm, 400 x 400 mm, 800 x 400 mm, 600 x 400 mm, 600 x 200 mm, 300 x 200 mm, 300 x 100 mm, 200 x 100 mm, 800 x 600 mm, 800 x 200 mm, 300 x 300 mm, VESA, 100 x 200 mm, 400 x 600 mm, 400 x 800 mm |
Max Load Weight | 90 kg |
Mounting Stud Centers | 24" |
Material | Steel |
Colour | Black |
Package Content | 4 x M8x25 screws, 4 x M4x16 screws, 4 x M6x16 screws, 4 x M5x16 screws, spanner, drilling template, 4 x M8x45 screws, 4 washers, 4 x M5x8 screws |
Manufacturer Warranty | 10 years warranty |
