Description

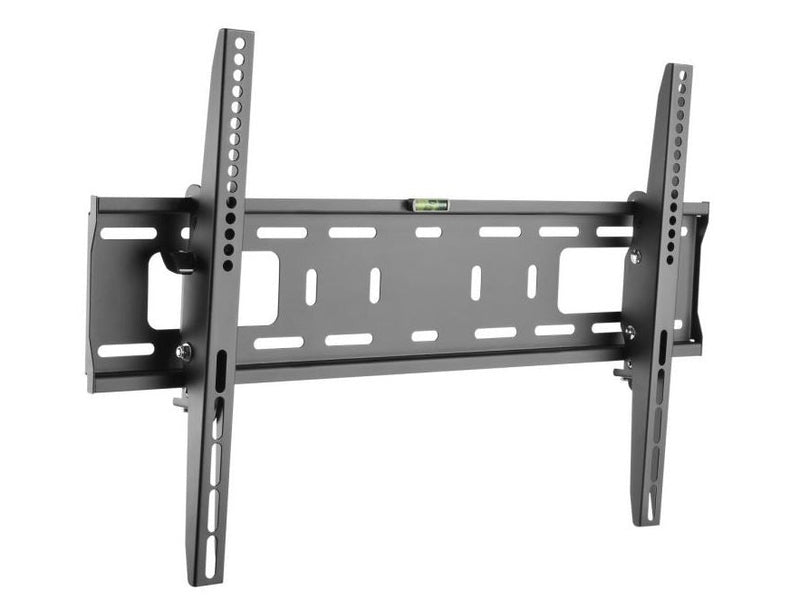

Atdec AD-WT-5060 Tilt Wall Mount, Up to 50KG, VESA up to 600x400
AD-WT-5060 suits applications that require a tilted display, space behind the display for device/s, and fixture to stud walls with 24” stud spacing.
This wall mount is designed for displays to 50kg (110lbs) and universal VESA patterns to 600x400.

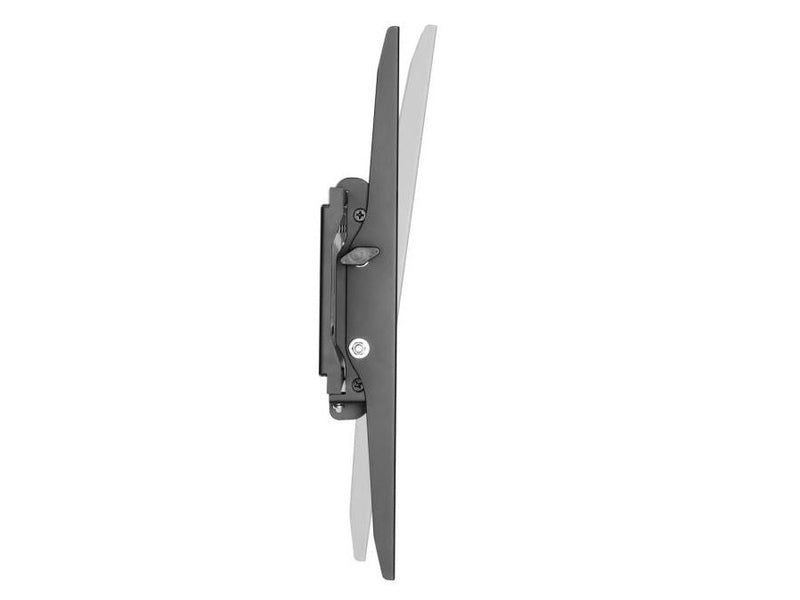

The AD-WT-5060 mounts displays tilted -10° to +5° to the wall, with 56mm (2.2”) space at rear in which devices may be concealed. Its versatility and construction makes AD-WF-5060 suitable for commercial, domestic, and most light industrial environments.
AD-WT-5060 suits most types of walls (with appropriate hardware*) and demonstrates Atdec’s easy installation ethos, with an integrated spirit level and slotted mounting holes. The brackets allow minor lateral adjustment to position the display precisely as desired.
Consider AD-WT-5040 for narrower stud spacing.
* wall mount hardware not included
Choose me for:
- Stud walls with 24” spacing
- Tilted display capability
- Space behind display
- Robust functionality & long service life
- Easy, safe & tidy installation
- Superseding Atdec's TH-3060-UT
Specifications
Product code | AD-WT-5060 |
Material | Steel |
Warranty | 10 years |
Flat screen: maximum supported weight, kg | 50.00 |
VESA mounting hole pattern, mm | Universal, 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 |
Range of motion | Tilt |
Landscape to portrait screen rotation | No |
Minimum distance from wall (mm) | 56mm (2.2") |
Maximum distance from wall (mm) | 56mm (2.2") |
