Description

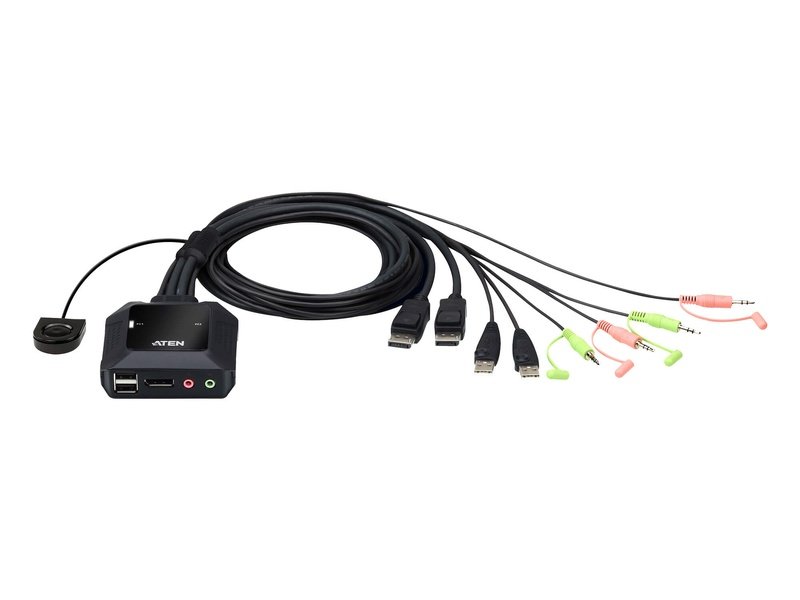

2-Port USB DisplayPort Cable KVM Switch with Remote Port Selector
CS22DP
- One KVM console controls two USB DisplayPort computers
- Superior video quality – up to 4096 x 2160 @ 30 Hz
- Multiplatform support – Windows, Mac, and Linux
- Bus-powered design
Overview
Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.
Plug in. Power on
The CS22DP supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Applications
The CS22DP Cable KVM Switch allows for an ideal desktop setup in office, media design work and entertainment.
Features
The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, users can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.
The CS22DP supports multiplatform operations allowing users to switch between two PC’s running different operating systems. Moreover, the compact design allows for an efficient and tidy installation, providing an ideal space-saving solution for keeping the desk well-organized.
It’s fast and easy to set up the CS22DP. Users can simply plug the KVM cables into their respective ports on the CS22DP and on the computers. There is no need to install software or configure devices – just plug and play.
Note:
To connect a VGA/DVI/HDMI monitor to the DisplayPort console port, it requires a separate purchase of DisplayPort to VGA/DVI/HDMI adapter with its own power supply.
- One KVM console controls two USB DisplayPort computers
- Superior video quality – up to 4096 x 2160 @ 30Hz
- Computer selection via Remote Port Selector
- Multiplatform support – Windows, Mac, and Linux
- Supports microphone and speakers
- The console USB ports can be used for USB peripheral sharing1
- Supports USB hot-plugging
- DisplayPort 1.1 compliant; HDCP compliant2
- Compatible with widescreen LCD monitors
- Bus-powered
1. The CS22DP may require an external power supply via the USB Micro-B Power Port. For the USB Micro-B cable connecting to the USB Micro-B Power Port, it requires a separate purchase based on the type of the power supply you use.
2. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.1 to avoid compatibility issue.
Specifications
Computer Connections | 2 |
Port Selection | Remote Port Selector |
Connectors | |

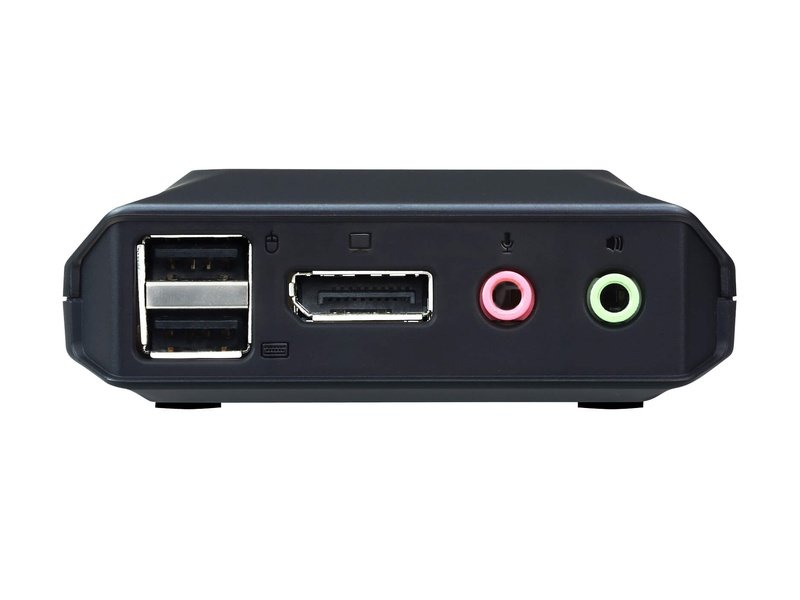

Console Ports | 1 x DisplayPort Female |
2 x USB Type A Female | |
1 x 3.5mm Audio Jack Female (Green) | |
1 x 3.5mm Audio Jack Female (Pink) | |

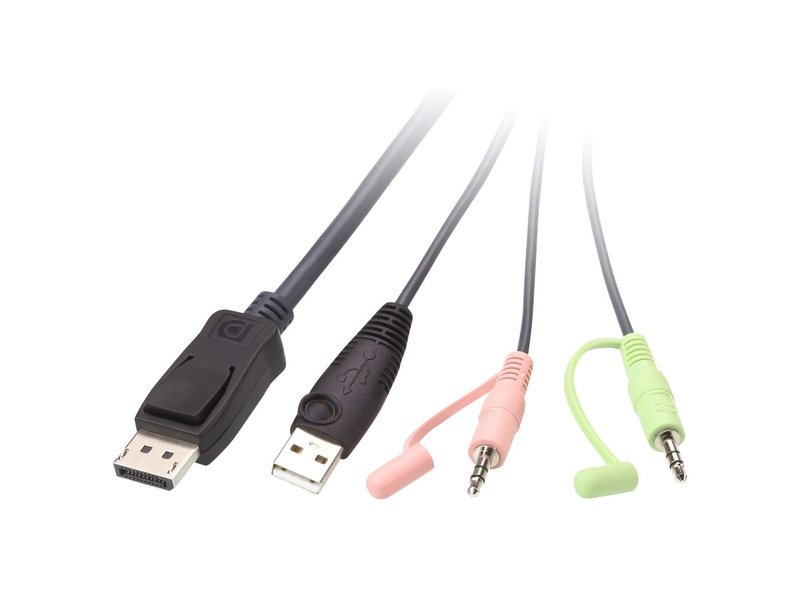

KVM (Computer) Ports | 2 x DisplayPort Male |
2 x USB Type A Male | |
2 x 3.5mm Audio Jack Male (Green) | |
2 x 3.5mm Audio Jack Male (Pink) | |
Power (Optional) | 1 x USB Micro Type B Female |
LEDs | |
KVM Port (On Line /Selected) | 2 (White) |
Cable Length | |
KVM | 2 x 1.2 m |
Remote Port Selector | 1.8 m |
Emulation | |
Keyboard / Mouse | N/A |
Video | 4096 x 2160 @ 30Hz |
Power Consumption | DC5V:1.38W:28BTU |
Environmental | |
Operating Temperature | 0 - 50°C |
Storage Temperature | -20 - 60°C |
Humidity | 0-80% RH, Non-condensing |
Physical Properties | |
Housing | Plastic |
Weight | 0.35 kg ( 0.77 lb ) |
Dimensions (L x W x H) | 8.34 x 8.42 x 3.04 cm |
(3.28 x 3.31 x 1.2 in.) | |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
