Description

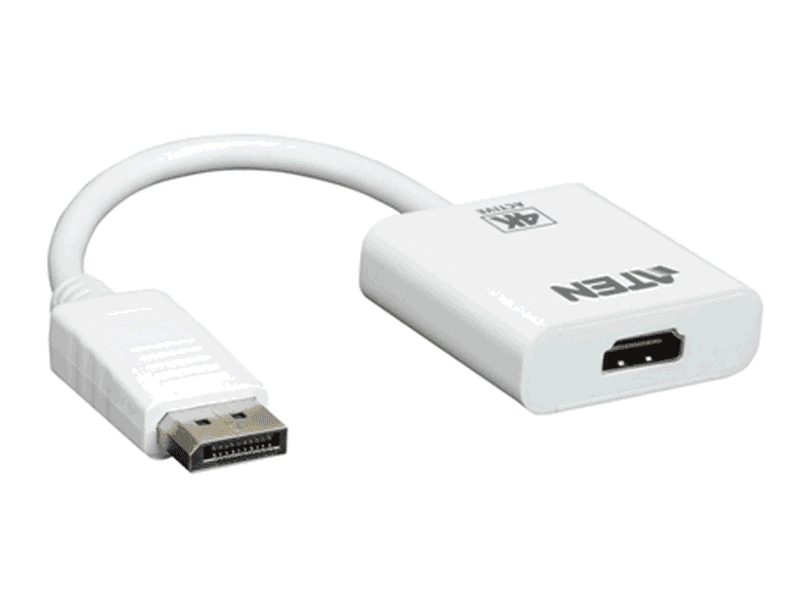

The VC986 is an active DisplayPort to HDMI adapter that allow you to connect
your Mini Display Port/Display Port output device to the HDMI input of a 4K TV
or other display.
The ATEN VC986 is an active adapter, featuring
advanced chips which ensure stable video signal conversion even when the video
source does not support dual-mode DisplayPort (DP++).* Moreover, support for
resolutions up to 4K make this adapter ideal for users who require a high
performance signal conversion solution.
Dual-mode DisplayPort
(DP++) can directly process the signal from DisplayPort to HDMI or DVI signals.
Features
Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and
resolutions up to 4K UHD
Active adapter – features an advanced chip which
ensures stable video signal conversion even when the video source does not
support dual-mode DisplayPort (DP++)*
Supports AMD Eyefi nity™ Technology
(multi-screen setups)
Audio supported
No software or driver
installation required
Specifications
Video Input:
Interfaces: 1 x DisplayPort Male (White)
Video Output:
Interfaces:
1 x HDMI Type A Female (Black)
Video:
Max. Pixel Clock: 297 MHz
Max. Resolution: 3840x2160@30Hz, 1920 x 1200@60Hz.
Compliance:
DP1.2a, HDMI (3D, Deep Color, 4K), HDCP 1.3
Audio:
Output: 1 x
HDMI Type A Female (Black)
Environmental:
Operating Temperature: 0
- 50 ºC
Storage Temperature: -20–60 ºC
Humidity: 0 - 80% RH,
Non-Condensing
Physical Properties:
Housing: Plastic
Weight: 0.04 kg (0.09 lb)
Dimensions (L x W x H): 18.00 x 4.50 x 1.50 cm
(7.09 x 1.77 x 0.59 in.)
