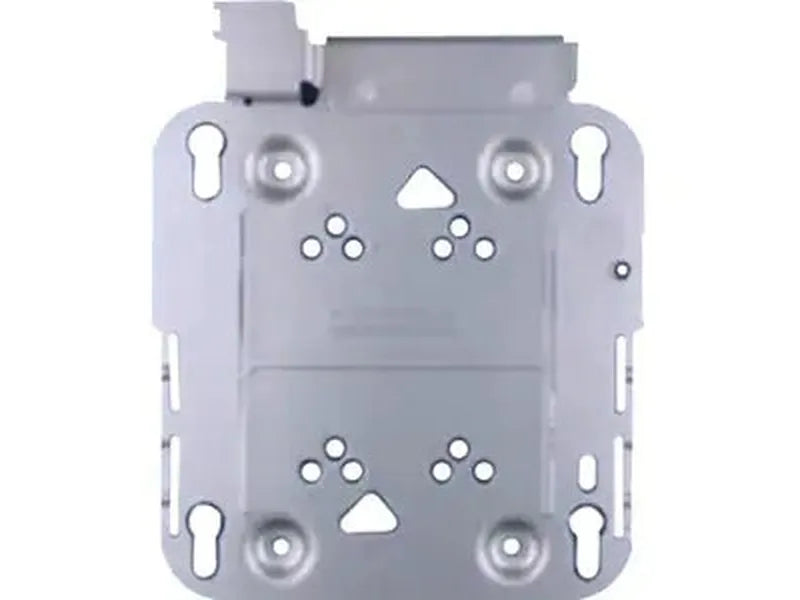

Cisco Low Profile Mounting Bracket for Aironet Access Points [AIR-AP-BRACKET-1=]

Low-Profile Mounting Bracket Details






1

Access point mounting keyholes

2

Security hasp

3

Hard surface mounting holes



Universal Mounting Bracket Details






1

Access point mounting keyholes

3

Cable access opening

2

Security hasp

4

Hard surface mounting holes



Specifications

Compatibility

Cisco Aironet Access Points:

    • AP1130
    • AP1040
    • AP1140
    • AP1260
    • AP3500i
    • AP3500e
Product Type Mounting Bracket
Manufacturer Part Number AIRAPBRACKET1WITHEQUAL
Manufacturer Website Address http://www.cisco.com/c/en_au
Manufacturer Cisco Systems, Inc
Product Model AIR-AP-BRACKET-1=
Product Name Mounting Bracket
Brand Name Cisco



More Information

Mounting Brackets

The two most common mounting brackets are:

  • The low-profile bracket (AIR-AP-BRACKET-1), provides a tight fit between the access point and the ceiling but does not accommodate network or electrical boxes or above ceiling mounts. Figure 1 shows the low-profile bracket installed on an access point.
  • The universal bracket (AIR-AP-BRACKET-2) is versatile (it works with electrical boxes, can be used for wall mounting, and above ceiling installations) but leaves a significant gap between the mounting surface and the access point than the low-profile bracket. A substantial gap is necessary for some locations because it allows space for cable routing. shows the universal bracket installed on an access point.

Figure 1 Low-Profile Mounting Bracket Installed on an Access Point




Figure 2 Universal Bracket Installed on an Access Point




Ceiling Grid Clips

You use a ceiling grid clip to mount an access point on a suspended ceiling. The ceiling tiles or rails will determine which clip best works for the installation. There are two types of ceiling grid clips:

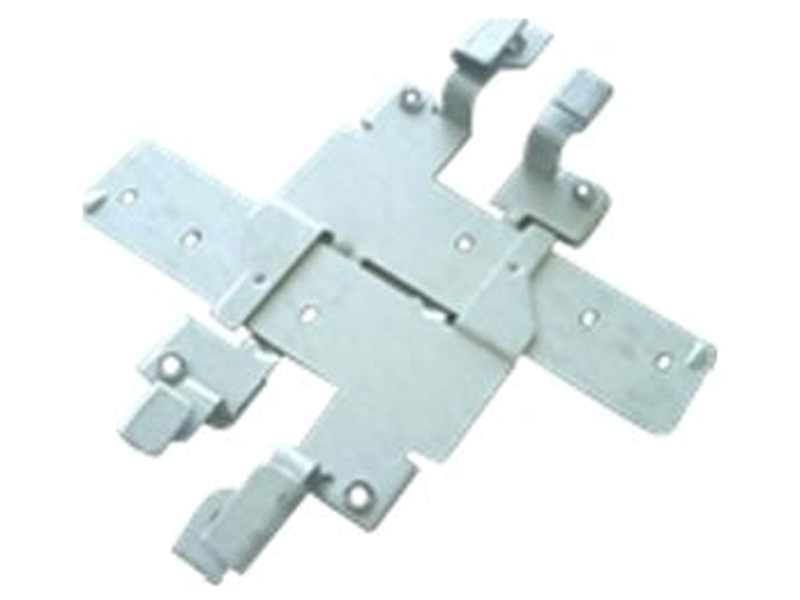

  • Ceiling Grid Clip, Recessed (AIR-AP-T-RAIL-R): If you have a recessed ceiling tile, this clip best fits between the AP and the ceiling.
  • Ceiling Grid Clip, Flush (AIR-AP-T-RAIL-F): If you have a flat ceiling tile, this clip provides a snug fit between the AP and the ceiling.

For more details about the ceiling clips, see the Types of Ceiling Rails and Tiles section.

Figure 3 shows a ceiling grid clip.

Figure 3 Ceiling Grid Clip



121758.ps



1

Locking screws

3

T-rail width detents (A, B, or C)

2

Bracket screw holes

Additional Adapters for Channel and Beam Ceiling Rails

The T-rail is the most common type of ceiling rail (the supports for the ceiling tiles). You can attach a ceiling grid clip directly to a T-rail ceiling rail. However, other types of ceiling rails, such as channel rails and beam rails, require an additional adapter clip (AIR-CHNL-ADAPTER). You need two adapter clips for each access point. Set screws on the clips and hold them securely on the ceiling rail.

Figure 4 shows the three types of ceiling rails: T-rail, channel, and beam. Figure 5 shows an access point installed with a mounting bracket, ceiling grid clip, and adapter clips.

Figure 4 Ceiling Rails and Tiles




Figure 5 Adapter Clips Installed with Ceiling Grid Clips




Mounting an Access Point Below a Suspended Ceiling

Follow these steps to mount the access point below a standard or recessed, suspended ceiling. Figure 6 shows an access point mounted on a T-rail ceiling rail using a ceiling grid clip.

Figure 6 Suspended Ceiling Mounting Details






1

Access point mounting keyhole

3

Access point cable access opening

2

Ceiling grid clip

4

Ceiling T-rail
