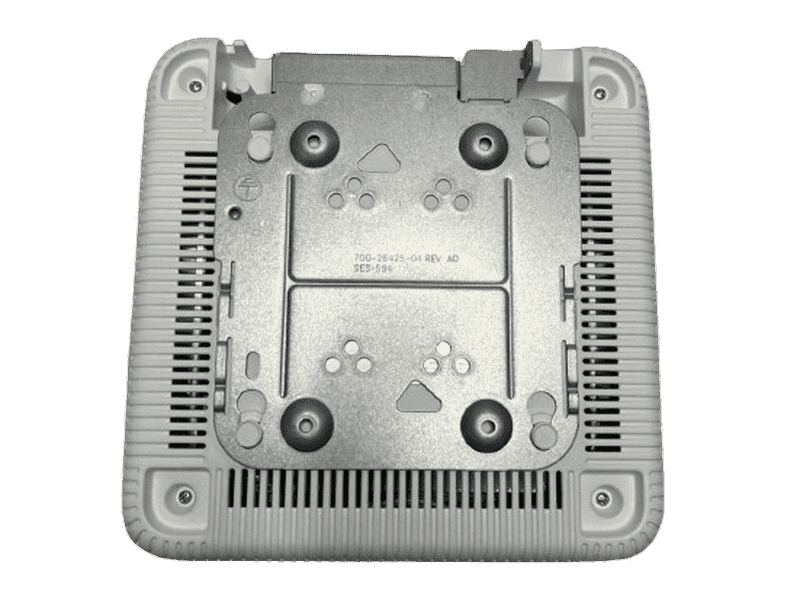

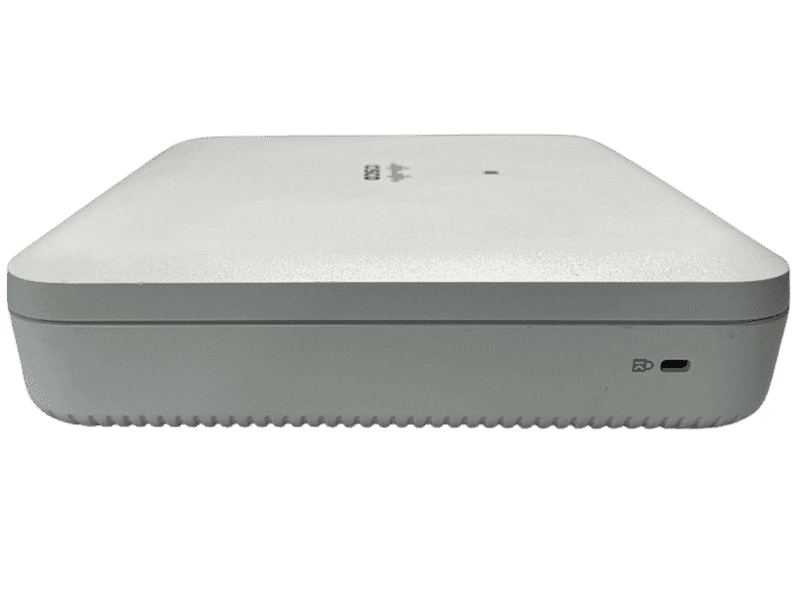

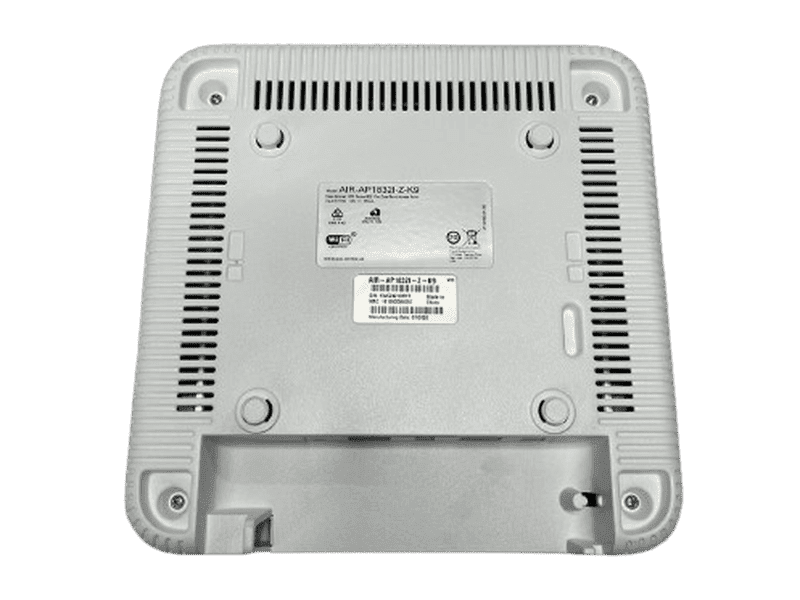

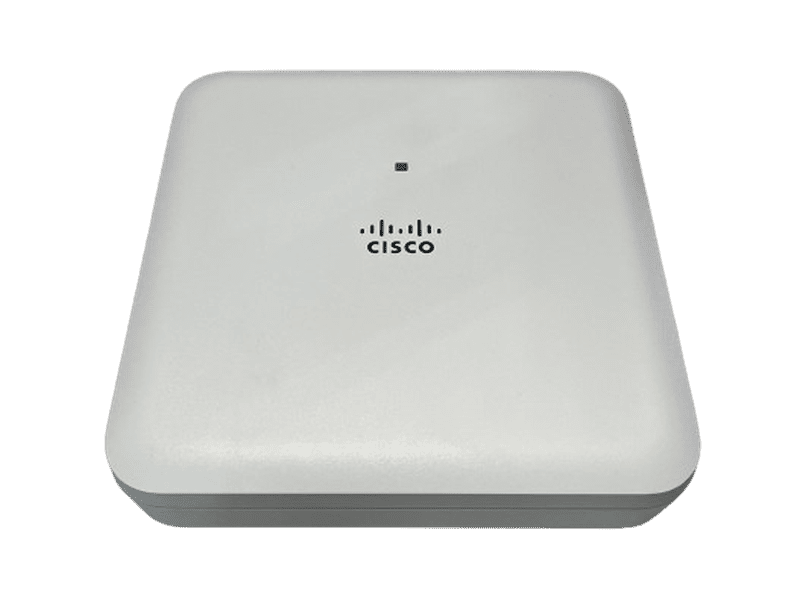

**Used/Refurbished** Cisco Aironet 1832i Access Point with bracket - AIR-AP1832I-Z-K9

CiscoSKU: RF-AIR-AP1832I-Z-K9

Availability:

✅ In Stock at PC LAN Store

Price:
Sale price$89.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store or have access to your credit card details.
Enjoy 0% surcharge on credit card payments.

Description

Cisco Aironet 1832i Access Point with bracket PoE 802.11ac 3x3:2 Internal Antenna*Used *

Part Number: AIR-AP1832I-Z-K9

Used with 90 Days Warranty

Condition

  • Good condtion
  • Some of them has cosmitic scratch

AIR-AP1832I-Z-K9 Overview

AIR-AP1832I-Z-K9 is one of the Cisco Aironet 1830 Series Access Points. Cisco 1830 AP series is ideal for small and medium-sized networks. This series supports the latest Wi-Fi standard, the 802.11ac Wave 2 standard. The 1830 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support. The model AIR-AP1832I-Z-K9 provides Z Regulatory Domain and internal antennas.

Quick Specs

Table 1 shows the quick specs of AIR-AP1832I-Z-K9.

Part Number

AIR-AP1832I-Z-K9

Description

802.11ac Wave 2 AP, 3x3:2, Internal Antenna, Z Regulatory Domain

Features

- 3x3 MIMO with two spatial streams, single-user or multiuser MIMO

- MRC

- 802.11ac beamforming (transmit beamforming)

- 20-, 40-, and 80-MHz channels

- PHY data rates up to 867 Mbps (80 MHz in 5 GHz)

- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

- 802.11 DFS

- CSD support

Regulatory Domain

Z (Z regulatory domain):

- 2.412 to 2.462 GHz; 11 channels

- 5.180 to 5.320 GHz; 8 channels

- 5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

- 5.745 to 5.825 GHz; 5 channels

Integrated antenna

- 2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°

- 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°

Interfaces

- 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)

- Management console port (RJ-45)

- USB 2.0 (enabled via future software)

Dimensions (W x L x H)

8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)

Weight

3.12 lb (1.41 kg)

Product Details

Figure 1 shows the AIR-AP1832I LED Indicator Position.

AIR-AP1832I LED Indicator Position

Note: ① LED indicator position

Table 2 shows the AP LED indicators’ descriptions.

Message Type

LED State

Message Meaning

Association status

Chirping Green

Normal operating condition, but no wireless client associated

Green

Normal operating condition, at least one wireless client association

Boot loader status

Green

Executing boot loader

Boot loader error

Red

Boot loader signing verification failure

Access point regulatory domain priming status

Blinking Amber

AP priming to a new regulatory domain by Neighbor Discovery Protocol (NDP), in progress

Cycling Red, Green and off

AP waiting to be primed

Chirping Red

AP primed to a wrong regulatory domain

Operating status

Blinking amber

Software upgrade in progress

Cycling through green, red, and amber

Discovery/join process in progress

Rapidly cycling through red, green, amber, and off.

Access point location command invoked from controller web interface.

Access point operating system errors

Cycling through red, green, amber, and off

General warning; insufficient inline power

Figure 2 shows AIR-AP1832I Ports and Connections.

AIR-AP1832I Ports and Connections

Note:

Mode button

PoE-In port (Ethernet Uplink port)

RJ-45 console port

48 V DC input power port

USB 2.0 port

Compare to Similar Items

Table 3 shows the comparison between two AP.

Part Number

AIR-AP1832I-Z-K9

AIR-AP1832I-Z-K9C

Description

802.11ac Wave 2 AP, 3x3:2

802.11ac Wave 2 AP, 3x3:2

★ Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image.

Integrated antenna

Yes

Yes

Regulatory Domain

Z (Z regulatory domain):

- 2.412 to 2.462 GHz; 11 channels

- 5.180 to 5.320 GHz; 8 channels

- 5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

- 5.745 to 5.825 GHz; 5 channels

Z (Z regulatory domain):

- 2.412 to 2.462 GHz; 11 channels

- 5.180 to 5.320 GHz; 8 channels

- 5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

- 5.745 to 5.825 GHz; 5 channels

AIR-AP1832I-Z-K9 Specification

AIR-AP1832I-Z-K9 Specification

Description

802.11ac Wave 2 AP, 3x3:2, Internal Antenna, Z Regulatory Domain

Software

Cisco Unified Wireless Network Software Release with AireOS wireless controllers:

  • 8.1.121.0 or later for the Cisco Aironet 1830 Series Access Points

Deployment modes

Centralized, standalone, sniffer, Cisco FlexConnect™, monitor, OfficeExtend, mesh

Supported wireless LAN controllers

  • Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst®6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco 5520 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 8540 Series Wireless Controllers, Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3650 and 3850 Series Switches with integrated controller
  • Cisco Mobility Express

802.11n version 2.0 (and related) capabilities

  • 3x3 MIMO with two spatial streams
  • Maximal ratio combining (MRC)
  • 20- and 40-MHz channels
  • PHY data rates up to 300 Mbps (40 MHz with 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 dynamic frequency selection (DFS)
  • Cyclic shift diversity (CSD) support

802.11ac Wave 1 and 2 capabilities

  • 3x3 MIMO with two spatial streams, single-user or multiuser MIMO
  • MRC
  • 802.11ac beamforming (transmit beamforming)
  • 20-, 40-, and 80-MHz channels
  • PHY data rates up to 867 Mbps (80 MHz in 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 DFS
  • CSD support

Regulatory Domain

Z (Z regulatory domain):

- 2.412 to 2.462 GHz; 11 channels

- 5.180 to 5.320 GHz; 8 channels

- 5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

- 5.745 to 5.825 GHz; 5 channels

Integrated antenna

  • 2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°
  • 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°

Interfaces

  • 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
  • Management console port (RJ-45)
  • USB 2.0 (enabled via future software)

Indicators

  • Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions

(W x L x H)

  • Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)

Weight

  • 3.12 lb (1.41 kg)

Environmental

Cisco Aironet 1830i

  • Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
  • Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
  • Operating temperature: 32° to 104°F (0° to 40°C)
  • Operating humidity: 10% to 90% (noncondensing)
  • Operating altitude test: 40˚C, 9843 ft.

System memory

  • 1 GB DRAM
  • 256 MB flash

Input power requirements

  • AP1830: 44 to 57 VDC
  • Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz

Power draw

  • 15.4W

Note: When deployed using a PoE specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable.

Powering options

  • 802.3af/802.3at
  • Enhanced PoE
  • Cisco local power supply, AIR-PWR-C=
  • Cisco power injector, AIR-PWRINJ5= (Note:This injector supports 802.3af only), AIR-PWRINJ6=

Note: If 802.3af PoE is the source of power, the USB port is disabled.
