Description

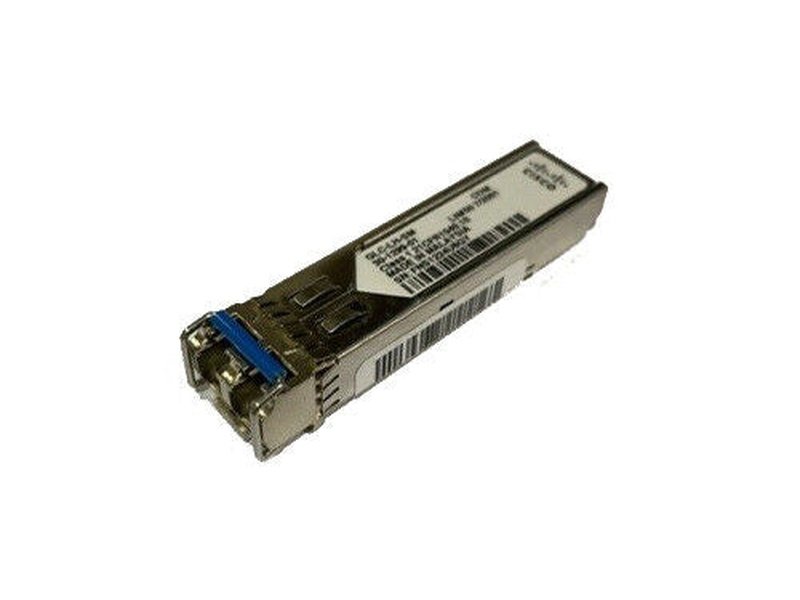

Cisco GLC-LH-SM 30-1299-01 1000BASE-LX/LH 1310nm 10km LC MMF/SMF SFP Transceiver
Part Number: 30-1299-01
Used with 30 Days Warranty
This item will be sent by registered mail. For Parcel Locker and Parcel Collect service please contact us by eBay message.
Form Factor
SFP
Max Data Rate
1.25Gbps
Wavelength
1310nm
Max Cable Distance
550m@MMF/10km@SMF
Connector
LC duplex
Media
SMF/MMF
Transmitter Type
FP
Receiver Type
PIN
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
TX Power
-9.5 ~ -3dBm
Receiver Sensitivity
< -23dBm
Power Consumption
≤1W
Receiver Overload
-3dBm
Bit Error Ratio (BER)
1E-12
Extinction Ratio
>9dB
EMC (Electro Magnetic Compatibility)
Supported
MTBF
1,000,000 Hours
Protocols
IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
