Overview
The Catalyst 9300-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300-M provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. The Catalyst 9300-M delivers resiliency with fast stack convergence and StackPower. The Catalyst 9300-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.
Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as “IOT device” & “Guest.” The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.
By pooling & distributing power across C9300-Ms using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.
A Catalyst 9300 switch can also be migrated to a Meraki-managed persona, where it would function as its Catalyst Meraki 9300 equivalent. For details on the migration process, please refer to our Getting started: Cisco Catalyst 9300 with Meraki Dashboard guide.
Models
Number of Ports | Model | Description |
---|---|---|
Fiber |
C9300-24S-M | 24-port SFP switch |
C9300-48S-M | 48-port SFP switch | |
24 Ports |
C9300-24T-M | 24-port GbE switch |
C9300-24P-M | 24-port GbE PoE+ switch | |
C9300-24U-M | 24-port GbE UPoE switch | |
C9300-24UX-M | 24-port mGbE UPoE switch | |
48 Ports |
C9300-48T-M | 48-port GbE switch |
C9300-48P-M | 48-port GbE PoE+ switch; ENERGY STAR®️ certified | |
C9300-48U-M | 48-port GbE UPoE switch | |
C9300-48UXM-M | 36-port 2.5GbE + 12-port mGbE UPoE switch; ENERGY STAR®️ certified | |
C9300-48UN-M | 48-port 5GbE UPOE switch |
Features
Catalyst 9300/L/X-M Licensing
Technical Breakdown
Interfaces Specifications
Model/Persona | Interfaces |
Uplink 10/40GbE (SFP+, QSFP+) |
120G Hardware Stack Port |
Dedicated Management Interface |
PoE/ UPoE Capabilities |
---|---|---|---|---|---|
C9300-24S-M | 24 x 1G SFP | Modular | 2 | 1 | n/a |
C9300-24T-M | 24 x 1GbE RJ45 | Modular | 2 | 1 | n/a |
C9300-24P-M | 24 x 1GbE RJ45 | Modular | 2 | 1 | PoE |
C9300-24U-M | 24 x 1GbE RJ45 | Modular | 2 | 1 | UPoE |
C9300-24UX-M | 24 x 100M/1G/2.5G/5G/10G RJ45 | Modular | 2 | 1 | UPoE |
C9300-48S-M | 48 x 1G SFP | Modular | 2 | 1 | n/a |
C9300-48T-M | 48 x 1GbE RJ45 | Modular | 2 | 1 | n/a |
C9300-48P-M | 48 x 1GbE RJ45 | Modular | 2 | 1 | PoE |
C9300-48U-M | 48 x 1GbE RJ45 | Modular | 2 | 1 | UPoE |
C9300-48UXM-M |
36 x 100M/1G/2.5G + 12 x 100M/1G/2.5G/5G/10G |
Modular | 2 | 1 | UPoE |
C9300-48UN-M | 48 x 100M/1G/2.5G/5G | Modular | 2 | 1 | UPoE |
All models are available with modular uplinks that have been listed under the Accessories list. For supported SFP modules please refer the SFP Datasheet.
Cabling Best Practices for Multi-Gigabit operations: While Category-5e cables can support multigigabit data rates upto 2.5/5 Gbps, external factors such as noise, alien crosstalk coupled with longer cable/cable bundle lengths can impede reliable link operation. Noise can originate from cable bundling, RFI, cable movement, lightning, power surges and other transient event. It is recommended to use Category-6a cabling for reliable multigigabit operations as it mitigates alien crosstalk by design.
Physical Specifications
Model |
Dimensions (h x w x d) W/ Default Power Supply |
Weight | Mount Type | Hot Swap Fans | Operating Temperature | Humidity |
---|---|---|---|---|---|---|
C9300-24S-M |
1.73" x 17.5" x17.7" (4.3 x 44.4 x 44.9cm) |
16.84 lb (7.64 kg) | 1U Rack Mount | Yes, 3x | -5°C to 45°C | 5 to 90% |
C9300-24T-M |
1.73” x 17.5” x 17.7” (4.4 x 44.5 x 44.9cm) |
16.03 lb (7.27 kg) | 1U Rack Mount | Yes, 3x | -5°C to 45°C | 5 to 90% |
C9300-24P-M |
1.73” x 17.5” x 17.7” (4.4 x 44.5 x 44.9cm) |
16.33 lb (7.4 kg) | 1U Rack Mount | Yes, 3x | -5°C to 45°C | 5 to 90% |
C9300-24U-M |
1.73” x 17.5” x 19.2” (4.4 x 44.5 x 44.8cm) |
16.63 lb (7.54 kg) | 1U Rack Mount | Yes, 3x | -5°C to 45°C | 5 to 90% |
C9300-24UX-M |
1.73” x 17.5” x 20.2” (4.4 x 44.5 x 51.3cm) |
18.18 lb (8.25 kg) | 1U Rack Mount | Yes, 3x | -5°C to 45°C | 5 to 90% |
C9300-48S-M |
1.73" x 17.5" x 19.2" (4.3 x 44.4 x 44.9cm) |
17.32 lb (7.86kg) | 1U Rack Mount | Yes, 3x | -5°C to 45°C | 5 to 90% |

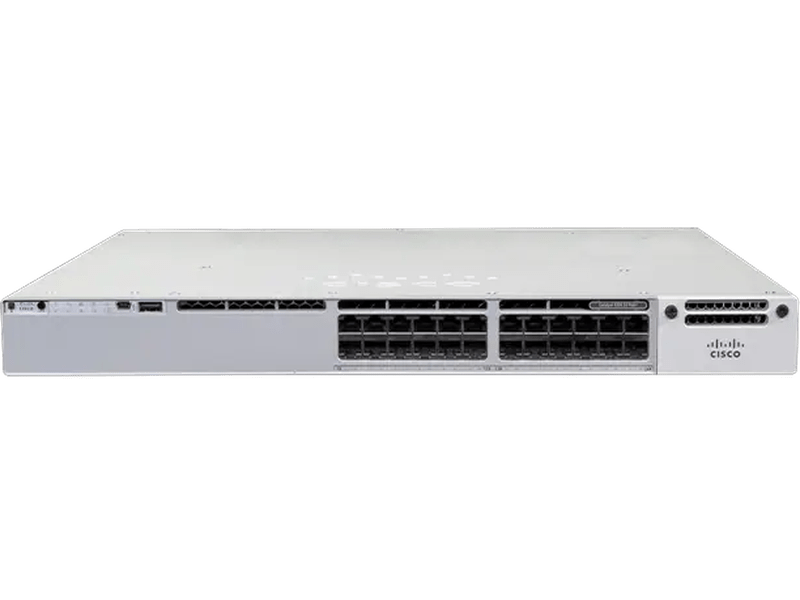

C9300-48T-M |
1.73” x 17.5” x17.7” (4.4 x 44.5 x 44.9cm) |
16.43 lb (7.45 kg) | 1U Rack Mount | Yes, 3x | -5°C to 45°C | 5 to 90% |
C9300-48P-M |
1.73” x 17.5” x17.7” (4.4 x 44.5 x 44.9cm) |
16.73 lb (7.59 kg) | 1U Rack Mount | Yes, 3x | -5°C to 45°C | 5 to 90% |
C9300-48U-M |
1.73” x 17.5” x 19.2” (4.4 x 44.5 x 48.8cm) |
17.03 lb (7.72 kg) | 1U Rack Mount | Yes, 3x | -5°C to 45°C | 5 to 90% |
C9300-48UXM-M |
1.73” x 17.5” x 22.2” (4.4 x 44.5 x 56.4cm) |
20.50 lb (9.34 kg) | 1U Rack Mount | Yes, 3x | -5°C to 45°C | 5 to 90% |
C9300-48UN-M |
1.73” x 17.5” x 22.2” (4.4 x 44.5 x 56.4cm) |
20.05 lb (9.09 kg) | 1U Rack Mount | Yes, 3x | -5°C to 45°C | 5 to 90% |
Performance
Model |
Switching Capacity | Stacking Bandwidth | Forwarding rate |
---|---|---|---|
C9300-24S-M | 208 Gbps | 480 Gbps | 154.76 Mpps |
C9300-24T-M | 208 Gbps | 480 Gbps | 154.76 Mpps |
C9300-24P-M | 208 Gbps | 480 Gbps | 154.76 Mpps |
C9300-24U-M | 208 Gbps | 480 Gbps | 154.76 Mpps |
C9300-24UX-M | 640 Gbps | 480 Gbps | 476.19 Mpps |
C9300-48S-M | 256 Gbps | 480 Gbps | 190.48 Mpps |
C9300-48T-M | 256 Gbps | 480 Gbps | 190.48 Mpps |
C9300-48P-M | 256 Gbps | 480 Gbps | 190.48 Mpps |
C9300-48U-M | 256 Gbps | 480 Gbps | 190.48 Mpps |
C9300-48UXM-M | 580 Gbps | 480 Gbps | 431.54 Mpps |
C9300-48UN-M | 640 Gbps | 480 Gbps | 476.19 Mpps |
Power Supply and Specifications
Model |
Default Power Supply | Hot Swap Power Supply | Available PoE W/ Primary PS | Max Available PoE W/ Secondary PS** |
Power Load (idle/max) |
---|---|---|---|---|---|
C9300-24S-M | PWR-C1-715WAC-P-M | Yes, Dual | n/a | n/a | 84.60 / 124.30 W |
C9300-24T-M | PWR-C1-350WAC-P-M | Yes, Dual | n/a | n/a | 79.2 / 99 W |
C9300-24P-M | PWR-C1-715WAC-P-M | Yes, Dual | 445W | 720W | 84.1 / 554.4 W |
C9300-24U-M | PWR-C1-1100WAC-P-M | Yes, Dual | 830W | 1440W | 85.4 / 990.3 W |
C9300-24UX-M | PWR-C1-1100WAC-P-M | Yes, Dual | 560W | 1440W | 162.7 / 809.9 W |
C9300-48S-M | PWR-C1-715WAC-P-M | Yes, Dual | n/a | n/a | 88.90 / 158.30 W |
C9300-48T-M | PWR-C1-350WAC-P-M | Yes, Dual | n/a | n/a | 83.9 / 109.9 W |
C9300-48P-M | PWR-C1-715WAC-P-M | Yes, Dual | 437W | 1152W | 92.6 / 555 W |
C9300-48U-M | PWR-C1-1100WAC-P-M | Yes, Dual | 822W | 1800W | 145 / 844.9 W |
C9300-48UXM-M | PWR-C1-1100WAC-P-M | Yes, Dual | 490W | 1590W | 218.5 / 785.5 W |
C9300-48UN-M | PWR-C1-1100WAC-P-M | Yes, Dual | 645W | 1745W | 157.9 / 843.8 W |
** The
PoE values are provided considering the secondary PS to be the
default power supply of the respective model.
Note: For
Japan, the recommendation is to deploy the switch with 200V+
outlets. The 1100WAC power supplies will not operate on 100V. Please
reference Table
13. AC Power Cords for the appropriate 250VAC power cable.
