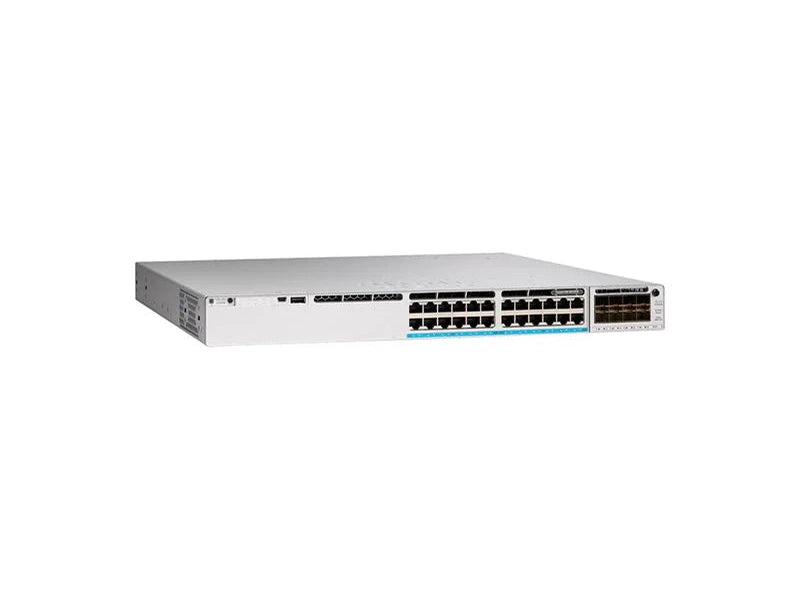

Cisco Meraki (C9300X-24HX-M) C9300X 24-Port MGIG UPoE+ 1100WAC PS W/Meraki

Cisco MerakiSKU: C9300X-24HX-M

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$13,548.00
Contact Us for ETA

Estimate shipping

Overview

The Catalyst 9300X-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300X-M provides multigigabit ports, 1TB stacking, and modular 10/25 or 40/100G uplinks. The Catalyst 9300X-M delivers resiliency with fast stack convergence and StackPower. The Catalyst 9300X-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300X-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.

Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as “IOT device” & “Guest.” The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.

By pooling & distributing power across C9300X-Ms using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.

Cisco Catalyst C9300X-48TX Ethernet Switch

A Catalyst 9300X switch can also be migrated to a Meraki-managed persona, where it would function as its Catalyst Meraki 9300X equivalent. For details on the migration process, please refer to our Getting started: Cisco Catalyst 9300 with Meraki Dashboard guide.

Models

Number of Ports Model Description
12 Ports C9300X-12Y-M 12-port SFP28 Fiber switch



24 Ports

C9300X-24Y-M 24-port SFP28 Fiber switch
C9300X-24HX-M 24-port mGig UPoE+ switch (24 x 10G mGig)



48 Ports

C9300X-48TX-M 48-port mGig switch
C9300X-48HX-M 48-port mGig UPoE+ switch (48 x 10G mGig)
C9300X-48HXN-M 48-port mGig UPoE+ switch (8 x 10G mGig + 40 x 5G mGig)

Features

Category Features
Highlights
  • Layer-3
  • 40G/100G or 10G/25G modular uplink options on all models
  • mGig support
  • 1T/480G Dual Dedicated Hardware Stacking Ports
  • 90W UPoE+ Support (802.3bt)
  • StackPower in a ring topology supporting upto 4 switches
Management
  • Managed via Cisco Meraki Dashboard
  • Zero-touch remote provisioning (no staging needed)
  • Basic configuration capability via local management page
  • Detailed historical per-port and per-client usage statistics
  • Operating System, device, and hostname fingerprinting
  • Automatic firmware upgrades with scheduling control
  • SNMP and SYSLOG support for integration with other network management solutions
Remote Diagnostics
  • Email, SMS and Mobile push notification alerts1
  • Ping, traceroute, cable testing, and link failure detection with alerting
  • Remote packet capture
  • Dynamic and interactive network discovery and topology
  • Combined event and configuration change logs with instant search
Stacking
  • Physically stack up to 8 switches with 1Tbps of stacking bandwidth on all models (backward compatible with 480G)
  • Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
  • Faster convergence
  • StackPower in a ring topology supporting upto 4 switches
Ethernet Switching Capabilities
  • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
  • 802.1Q VLAN and trunking support for up to 4,094 VLANs (1000 active VLANs with STP enabled)

  • Single Instance of 802.1s Multiple Spanning Tree Protocol (interoperable with RSTP, STP, PVST, RPVST)
  • STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
  • Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad Link aggregation with up to 8 ports per aggregate, multi-chassis aggregates supported on stacked switches
  • Port mirroring
  • IGMP snooping for multicast filtering
  • MAC Forwarding Entries: 32K
Layer 3
  • Static routing, OSPFv2
  • Multicast routing (PIM-ASM)
  • Warm Spare (VRRP) *
  • DHCP Server, DHCP Relay
Security
  • Integrated multi-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate wide password policy enforcement
  • IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing
  • Single-Host/Multi-Domain/Multi-Host/Multi Authentication
  • Port security: Sticky MAC, MAC allow list*
  • DHCP snooping, detection and blocking, Dynamic ARP Inspection
  • IPv4 and IPv6 ACLs
  • Secure Connect *
  • Adaptive Policy

* Available in a future software release
