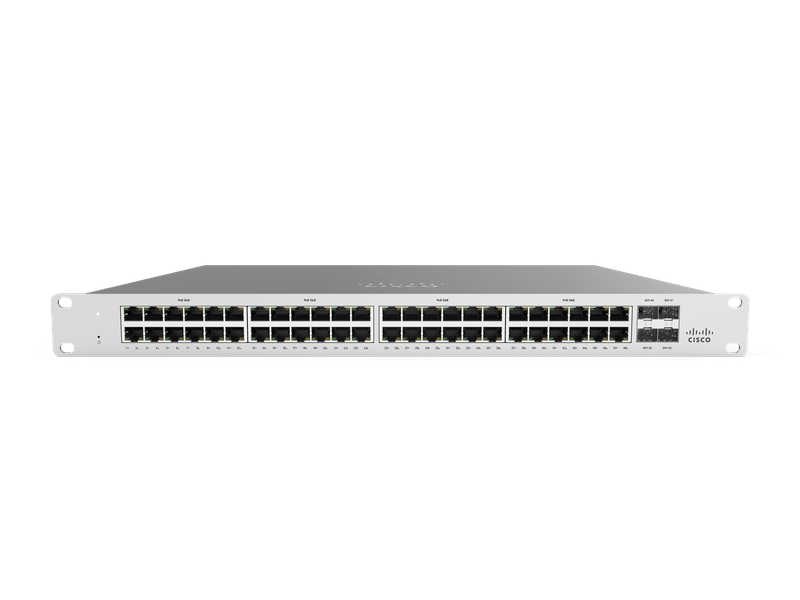

Cisco Meraki MS120-48 1G L2 Cloud Managed 48x GigE Switch

Cisco MerakiSKU: MS120-48-HW

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$2,975.00
Contact Us for ETA

Estimate shipping

Overview

Cisco Meraki MS120 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS120 series features a variety of power options designed to meet the diverse needs of branch and campus deployments.

With 5 different models capable of providing up to 740 W of power over a variety of port densities, including Small-Form Factor Pluggable (SFP) capable uplinks, the MS120 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.



MS120 front panel with 24 ports.MS120 front panel with 48 ports.



Features

  • Managed via Cisco Meraki dashboard
  • Remote packet papture pools via Meraki dashboard
  • Automatic firmware upgrades
  • Simple Network Management Protocol (SNMP)/Syslog integration
  • IPv4/6 Access Control List (ACL) support
  • 802.1q VLAN tagging
  • DHCP snooping
  • 802.1X authentication
  • 10/100/1000 Mbps RJ45
  • 4x 1000 Mbps SFP models available
  • Power over Ethernet (PoE) and PoE+ models available for device-level powering

Technical Breakdown

Hardware Breakdown

MS120-8 Models

  MS120-8 MS120-8LP MS120-8FP
1GbE RJ45

8

8 8
1GbE SFP 2 2 2
Dedicated Management Interface - - -

MS120-24/48 Models

  MS120-24 MS120-24P MS120-48 MS120-48LP MS120-48FP
1GbE RJ45 24 24 48 48 48
1GbE SFP 4 4 4 4 4
Dedicated Mgmt Interface 1 1 1 1 1



Throughput and Capabilities

MS120-8 Models

  MS120-8 MS120-8LP MS120-8FP
PoE/PoE+ Capable - Yes, 67 W Yes, 124 W
Switching Capacity 20 Gbps 20 Gbps 20 Gbps
Power Supply External External Fixed Internal

MS120-24/48 Models

  MS120-24 MS120-24P MS120-48 MS120-48LP MS120-48FP
PoE/PoE+ Capable - Yes, 370 W - Yes, 370 W Yes, 740 W
Switching Capacity 56 Gbps 56 Gbps 104 Gbps 104 Gbps 104 Gbps
Power Supply Fixed Internal Fixed Internal Fixed Internal Fixed Internal Fixed Internal



Physical

MS120-8 Models

  MS120-8 MS120-8LP MS120-8FP
Mount Type - - -
Dimensions (h x w x d)

1.1 x 8.74 x 6 in

(2.8 x 22 x 15 cm)

1.1 x 8.74 x 6 in

(2.8 x 22 x 15 cm)

1.75 x 9 x 8.58 in

(4.4 x 23 x 23 cm)

Weight 2.36 lb (1.07 kg) 2.76 lb (1.25 kg) 3.42 lb (1.55 kg)
Power Load (idle/max) 5 / 9 W 7 / 88 W 9 / 161 W
Operating Temperature  32°F - 113°F
0°C - 45°C
32°F - 113°F
0°C - 45°C
32°F - 113°F
0°C - 45°C
Humidity 5% to 95% 5% to 95% 5% to 95%

MS120-24/48 Models

  MS120-24 MS120-24P MS120-48 MS120-48LP MS120-48FP
Mount Type 1U Rack Mount 1U Rack Mount 1U Rack Mount 1U Rack Mount 1U Rack Mount
Dimensions (h x w x d)

1.73 x 17.32 x 10 in

(4.4 x 44 x 25 cm)

1.73 x 17.32 x 10 in

(4.4 x 44 x 25 cm)

1.73 x 17.32 x 10 in

(4.4 x 44 x 25 cm)

1.73 x 17.32 x 13.4 in

(4.4 x 44 x 34 cm)

1.73 x 17.32 x 13.4 in

(4.4 x 44 x 34 cm)

Weight 8.09 lb (3.67 kg) 9.26 lb (4.20 kg) 8.97 lb (4.06 kg) 12.70 lb (5.70 kg) 12.70 lb (5.70 kg)
Power Load (idle/max) 8 / 18 W 28 / 425 W 16 / 36 W 37 / 477 W 37 / 908 W
Operating Temperature 32°F - 113°F
0°C - 45°C
32°F - 113°F
0°C - 45°C
32°F - 113°F
0°C - 45°C
32°F - 113°F
0°C - 45°C
32°F - 113°F
0°C - 45°C
Humidity 5% to 95% 5% to 95% 5% to 95% 5% to 95% 5% to 95%
