Overview
Cisco Meraki MS120 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS120 series features a variety of power options designed to meet the diverse needs of branch and campus deployments.
With 5 different models capable of providing up to 740 W of power over a variety of port densities, including Small-Form Factor Pluggable (SFP) capable uplinks, the MS120 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.
Features
|
|
Technical Breakdown
Hardware Breakdown

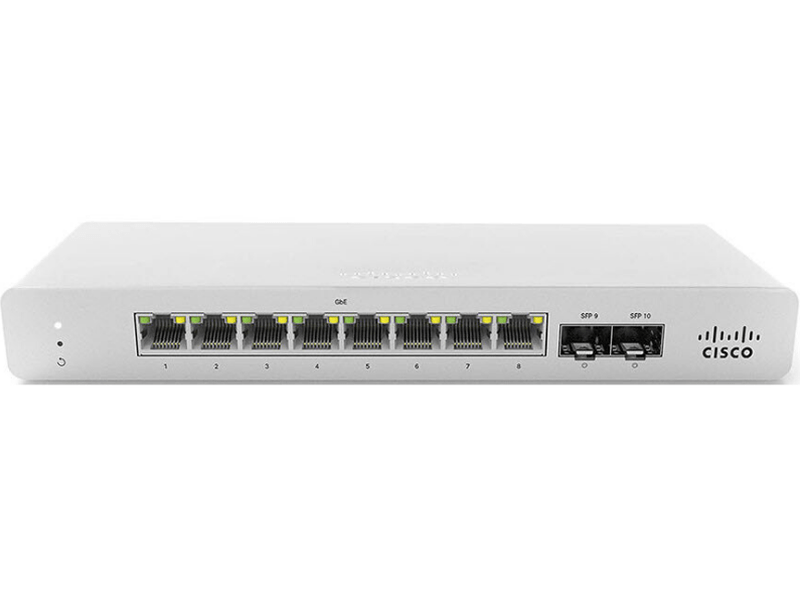

MS120-8 Models
MS120-8 | MS120-8LP | MS120-8FP | |
1GbE RJ45 |
8 |
8 | 8 |
1GbE SFP | 2 | 2 | 2 |
Dedicated Management Interface | - | - | - |
MS120-24/48 Models
MS120-24 | MS120-24P | MS120-48 | MS120-48LP | MS120-48FP | |
1GbE RJ45 | 24 | 24 | 48 | 48 | 48 |
1GbE SFP | 4 | 4 | 4 | 4 | 4 |
Dedicated Mgmt Interface | 1 | 1 | 1 | 1 | 1 |
Throughput and Capabilities
MS120-8 Models
MS120-8 | MS120-8LP | MS120-8FP | |
PoE/PoE+ Capable | - | Yes, 67 W | Yes, 124 W |
Switching Capacity | 20 Gbps | 20 Gbps | 20 Gbps |
Power Supply | External | External | Fixed Internal |
MS120-24/48 Models
MS120-24 | MS120-24P | MS120-48 | MS120-48LP | MS120-48FP | |
PoE/PoE+ Capable | - | Yes, 370 W | - | Yes, 370 W | Yes, 740 W |
Switching Capacity | 56 Gbps | 56 Gbps | 104 Gbps | 104 Gbps | 104 Gbps |
Power Supply | Fixed Internal | Fixed Internal | Fixed Internal | Fixed Internal | Fixed Internal |
Physical
MS120-8 Models
MS120-8 | MS120-8LP | MS120-8FP | |
Mount Type | - | - | - |
Dimensions (h x w x d) |
1.1 x 8.74 x 6 in (2.8 x 22 x 15 cm) |
1.1 x 8.74 x 6 in (2.8 x 22 x 15 cm) |
1.75 x 9 x 8.58 in (4.4 x 23 x 23 cm) |
Weight | 2.36 lb (1.07 kg) | 2.76 lb (1.25 kg) | 3.42 lb (1.55 kg) |
Power Load (idle/max) | 5 / 9 W | 7 / 88 W | 9 / 161 W |
Operating Temperature |
32°F - 113°F 0°C - 45°C |
32°F - 113°F 0°C - 45°C |
32°F - 113°F 0°C - 45°C |
Humidity | 5% to 95% | 5% to 95% | 5% to 95% |
MS120-24/48 Models
MS120-24 | MS120-24P | MS120-48 | MS120-48LP | MS120-48FP | |
Mount Type | 1U Rack Mount | 1U Rack Mount | 1U Rack Mount | 1U Rack Mount | 1U Rack Mount |
Dimensions (h x w x d) |
1.73 x 17.32 x 10 in (4.4 x 44 x 25 cm) |
1.73 x 17.32 x 10 in (4.4 x 44 x 25 cm) |
1.73 x 17.32 x 10 in (4.4 x 44 x 25 cm) |
1.73 x 17.32 x 13.4 in (4.4 x 44 x 34 cm) |
1.73 x 17.32 x 13.4 in (4.4 x 44 x 34 cm) |
Weight | 8.09 lb (3.67 kg) | 9.26 lb (4.20 kg) | 8.97 lb (4.06 kg) | 12.70 lb (5.70 kg) | 12.70 lb (5.70 kg) |
Power Load (idle/max) | 8 / 18 W | 28 / 425 W | 16 / 36 W | 37 / 477 W | 37 / 908 W |
Operating Temperature |
32°F - 113°F 0°C - 45°C |
32°F - 113°F 0°C - 45°C |
32°F - 113°F 0°C - 45°C |
32°F - 113°F 0°C - 45°C |
32°F - 113°F 0°C - 45°C |
Humidity | 5% to 95% | 5% to 95% | 5% to 95% | 5% to 95% | 5% to 95% |
