Overview
Cisco Meraki MS125 switches provide Layer 2 access switching and 10G uplinks, ideal for branch and campus deployments. The MS125 series features a variety of power options designed to meet the diverse needs of branch and campus deployments.
With 5 different models, capable of providing up to 740W of power over a variety of port densities, including 10Gb SFP+ capable uplinks, the MS125 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.
Features
|
|
Technical Breakdown
Hardware
|
MS125-24 |
MS125-24P |

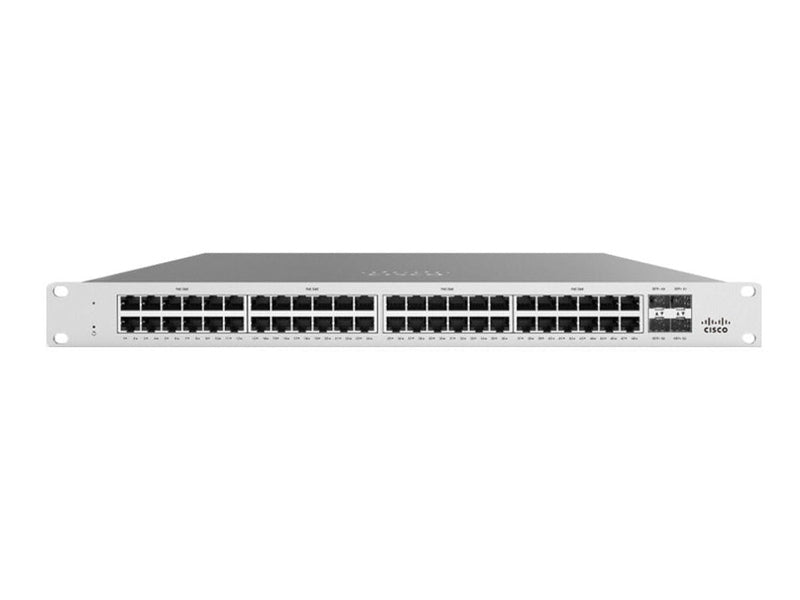

MS125-48 |
MS125-48LP |
MS125-48FP |
---|---|---|---|---|---|
1GbE RJ45 |
24 |
24 |
48 |
48 |
48 |
10GbE SFP+ |
4 |
4 |
4 |
4 |
4 |
Dedicated Mgmt Interface |
1 |
1 |
1 |
1 |
1 |
Throughput and Capabilities
|
MS125-24 |
MS125-24P |
MS125-48 |
MS125-48LP |
MS125-48FP |
---|---|---|---|---|---|
PoE/PoE+ Capable |
- |
Yes, 370W |
- |
Yes, 370W |
Yes, 740W |
Switching Capacity |
128Gbps |
128Gbps |
176 Gbps |
176 Gbps |
176 Gbps |
Power Supply |
Built-in |
Built-in |
Built-in |
Built-in |
Built-in |
Physical
MS125-24 | MS125-24P | MS125-48 | MS125-48LP | MS125-48FP | |
---|---|---|---|---|---|
Mount Type |
1U Rack Mount (Front) |
1U Rack Mount (Front) |
1U Rack Mount (Front) |
1U Rack Mount (Front/ Mid) |
1U Rack Mount (Front/ Mid) |
Dimensions (h x w x d) |
1.73 x 17.32 x 9.84 in (4.4 x 44 x 25cm) |
1.73 x 17.32 x 9.84 in (4.4 x 44 x 25cm) |
1.73 x 17.32 x 9.84 in (4.4 x 44 x 25 cm) |
1.73 x 17.32 x 13.38 in (4.4 x 44 x 34 cm) |
1.73 x 17.32 x 13.38 in (4.4 x 44 x 34 cm) |
Weight | 8.16 lb (3.7 kg) |
9.26 lb (4.2 kg) |
9.26 lb (4.2 kg) |
11.9 lb (5.4 kg) |
12.79 lb (5.8 kg) |
Power Load (idle/max) | 10.3 / 25.6 W | 25 / 426.1 W | 21.7 / 42 W | 40.2 / 439.8 W | 52 / 845.4 W |
Operating Temperature |
32°F - 113 °F 0°C - 45°C |
32°F - 113 °F 0°C - 45°C |
32°F - 113 °F 0°C - 45°C |
32°F - 113 °F 0°C - 45°C |
32°F - 113 °F 0°C - 45°C |
Humidity | 5% to 95% | 5% to 95% | 5% to 95% | 5% to 95% | 5% to 95% |
** MS125 support MA-SFP-10GB-ER between 0° - 35°C at 10,000 feet
