Description
Highlights
Configurations

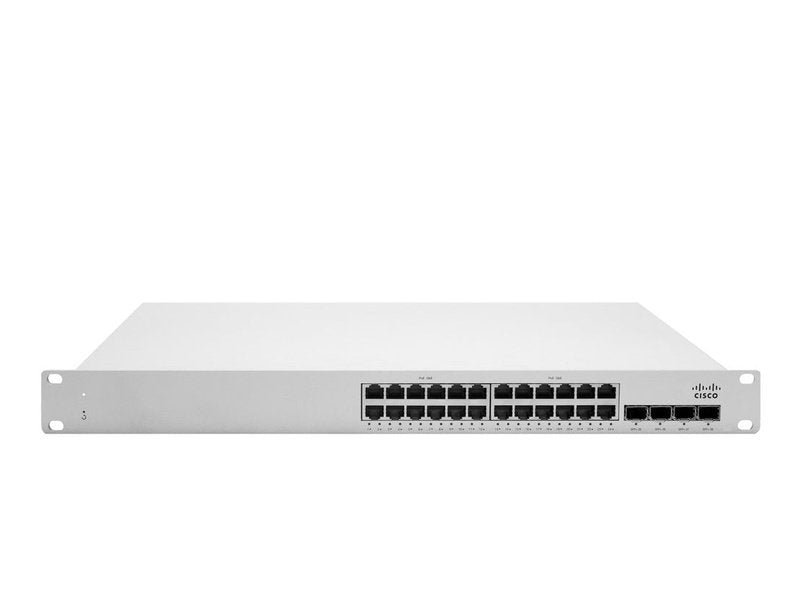

24 port gigabit Ethernet
4 × 10GbE SFP+
uplink
80G Physical Stacking
MS225-24P includes 370 W PoE / PoE+
Hardware platform
Voice and Video QoS
Supports Cisco redundant power
system (RPS2300)
Non-blocking switch fabric
Ultra-reliable, includes
lifetime warranty
Power over Ethernet (for PoE model)
802.3af (PoE) 15.4 W
per port
802.3at (PoE+) 30 W per port
MS225-24P maximum PoE output: 370 W
PoE available simultaneously on all ports
Intelligent PoE power allocation
based on device advertisement (LLDP, CDP)
Cloud management
Visibility and
control over thousands of ports
Built-in multi site management
Zero touch
provisioning
Monitoring and diagnostics
Cable failure testing
Gateway
connectivity testing
Real time troubleshooting tools
Email and text
message alerts
TECHNICAL SPECIFICATIONS
Interfaces
24 ×
10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
802.3af/802.3at
Power-over-Ethernet (PoE/PoE+) on MS225-24P, available on all ports (maximum of
30W per port for PoE+)
4 × SFP+ 10 Gigabit Ethernet interfaces for uplink
2 × Stacking interfaces
Auto negotiation and crossover detection
Management
Managed via the cloud using the Meraki dashboard
Integrated
with Meraki Wireless and complete portfolio of IT products and solutions
No-touch remote deployment (no staging needed)
Detailed historical per-port
and per-client usage statistics
DHCP, client, and hostname fingerprinting
SNMPd and SYSLOG support for integration with other network management solutions
Seamless over-the-web firmware upgrades with scheduling & control
Remote
diagnostics
Email, SMS and Mobile push notification alerts
Cable testing
and link failure detection with alerting
Live remote packet capture
Dynamic and interactive network discovery and topology
Aggregated event logs
with instant search
Flexible stacking
Physical stacking of up to 8
switches with 80 Gbps stack bandwidth on all models
Virtual stacking supports
thousands of switch ports in a single logical stack for unified management,
monitoring, and configuration
Ethernet switching capabilities
802.1p
Quality of Service prioritization
802.1Q VLAN tagging with 4,095 addressable
tags
802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
Broadcast
storm control
802.1ab Link Layer Discovery Protocol (LLDP) and Cisco
Discovery Protocol (CDP)
802.3ad link aggregation with up to 8 ports per
aggregate, Multichassis aggregates supported on stacked switches
IGMP
snooping for multicast filtering
MAC forwarding entries: 16K on 24-port
models, 32K on 48-port models
Security
Integrated two-factor
authentication for Dashboard management
Role-based access control (RBAC) with
granular device and configuration control
Corporate wide password policy
enforcement
IEEE 802.1X RADIUS, hybrid authentication and RADIUS server
testing
MAC-based RADIUS authentication (MAB)
Port security: Sticky MAC,
MAC whitelisting
DHCP snooping, detection and blocking
STP Enhancements:
BPDU guard, Root guard
IPv4 ACLs
Power over Ethernet:
802.3af (PoE)
15.4 W per port and 802.3at (PoE+) 30 W per port
Maximum PoE output (24P):
370 W
PoE available on all ports simultaneously
Performance
Non-blocking switching fabric
Switching capacity: 128Gbps (24-port models),
176Gbps (48-port models)
Forwarding rate (mpps): 95.24 (24-port models),
127.98 (48-port models)
Jumbo Frame Support (9578 byte Ethernet frame)
Flow control support
Layer 3
Static Routing (maximum of 16 static routes
supported)
DHCP Relay
Power
Power input: 100 - 240 VAC, 47-63 Hz
Power consumption: 15 - 448 W
RPS interface: Requires RPS-2300 chassis, see
Cisco RPS-2300 Datasheet for further information
Mounting
1U
Rack-mountable with included rack mount hardware
2-post front mounting
options available
Desktop-mountable with included feet
Environment
Operating temperature: 32°F to 104°F (0°C to 40°C)
Humidity: 5 to 95%
non-condensing
MS225-24, MS225-48 feature fanless operation
Regulatory
CSA-US (US, Canada)
FCC (USA)
IC (Canada)
CE (Europe)
RCM
(Australia/New Zealand)
RoHS
Warranty
Full lifetime hardware warranty
with next-day advanced replacement included
MTBF at 25°C
MS225-24: 590,165
MS225-24P: 391,648
Physical dimensions (H×W×D)
MS225-24: 1.72 x 19.08 x
9.84”(4.38 x 48.46 x 25cm)
MS225-24P: 1.72 x 19.08 x 9.84”(4.38 x 48.46 x
25cm)
Physical Weight
MS225-24: 6.03 lb (2.73 kg)
MS225-24P: 8.18 lb
(3.71 kg)
