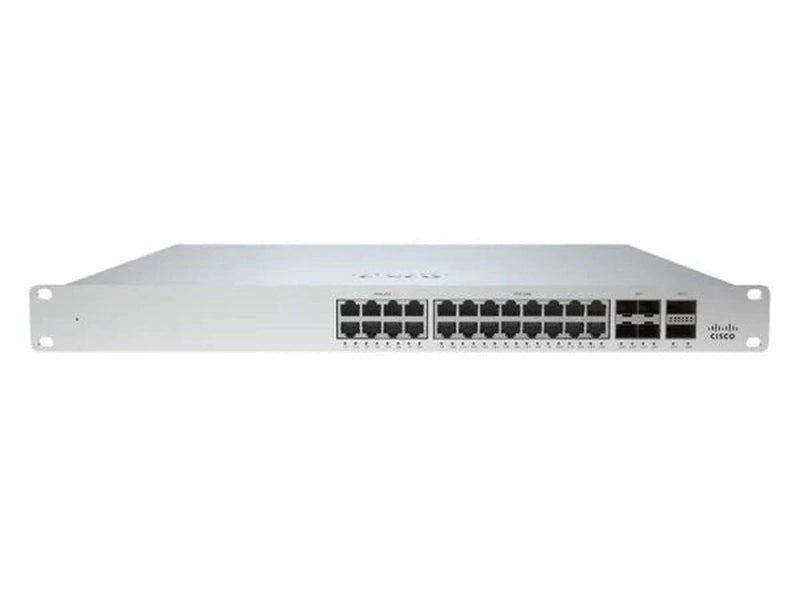

Cisco Meraki (MS355-24X2-HW) MS355-L3 Stack Cloud Managed 24XMG UPoE Switch

Cisco MerakiSKU: MS355-24X2-HW

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$22,966.00
Contact Us for ETA

Estimate shipping

Overview

The MS355 is a multi-gigabit switch line designed to help prepare Organizations for the increased bandwidth requirements of the upcoming 802.11ax wireless standard with high-count mGig switch ports and increased switching capacity to meet the demands of next generation access points. Networks with sizeable wireless deployments such as universities, hospitals, and large public complexes like transportation centers can all benefit from the increased bandwidth capabilities of the MS355.

With 4 different models, each with multiple mGig RJ45 ports capable of negotiating up to 10Gbps, 40G QSFP+ ports, and dedicated 100G hardware stacking ports, the MS355 line is fully ready to support the future deployment of 802.11ax wireless infrastructure across a variety of different environments.



2018-11-20 10_46_34-MS355-48X2-MS355-24X2-stacked-shadow-EDIT2.png



Features

  • Managed via Cisco Meraki Dashboard
  • Remote Packet Capture Tools via Meraki Dashboard
  • Automatic Firmware upgrades
  • SNMP/Syslog Integration
  • IPv4/6 ACL support
  • 802.1q VLAN tagging
  • Broadcast Storm Control
  • Dynamic ARP Inspection / DHCP Snooping
  • 802.1X Authentication
  • 10/100/1000 Mbps RJ45
  • 100M/1G/2.5G/5G/10G mGbE RJ45
  • 4x 1000/10000 Mbps SFP+
  • 2x 40GbE QSFP+
  • 2x Dedicated Stack Ports providing 400G of Stacking bandwidth
  • L3 Switching including OSPF
  • UPoE Support
  • Hot Swappable Power Supplies and Fans
  • Warm Spare capable

Technical Breakdown

Hardware Breakdown

  MS355-24X MS355-24X2 MS355-48X MS355-48X2
1GbE RJ45 16

-

32 24
mGbE RJ45 (100M/1G/2.5G/5G/10G) 8 24 16 24
10GbE SFP+ 4 4 4 4
40GbE QSFP+ 2 2 2 2
Hardware Stack Port 2 2 2 2
Dedicated Mgmt Interface 1 1 1 1
Hot Swap Power Supply Yes, Dual Yes, Dual Yes, Dual Yes, Dual
Hot Swap Fans Yes, 3x Yes, 3x Yes, 3x Yes, 3x

Network ports on the MS355 switches operate at full-duplex; half-duplex operation is not supported

Cabling Best Practices for Multi-Gigabit operations: While Category-5e cables can support multigigabit data rates upto 2.5/5 Gbps, external factors such as noise, alien crosstalk coupled with longer cable/cable bundle lengths can impede reliable link operation. Noise can originate from cable bundling, RFI, cable movement, lightning, power surges and other transient event. It is recommended to use Category-6a cabling for reliable multigigabit operations as it mitigates alien crosstalk by design.

Throughput and Capabilities

  MS355-24X MS355-24X2 MS355-48X MS355-48X2
Layer 3 Routing Yes Yes Yes Yes
UPoE Capable Yes, 740W Yes, 740W Yes, 740W Yes, 740W
Switching Capacity 352 Gbps 640 Gbps 544 Gbps 688 Gbps
Stacking Bandwidth 400 Gbps 400 Gbps 400 Gbps 400 Gbps

Physical

  MS355-24X MS355-24X2 MS355-48X MS355-48X2
Mount Type 1U Rack Mount 1U Rack Mount 1U Rack Mount 1U Rack Mount
Dimensions (h x w x d)

1.7 x 19.1 x 20 in /

4.37 x 48.46 x 51.66 cm

1.7 x 19.1 x 20 in /

4.37 x 48.46 x 51.66 cm

1.7 x 19.1 x 20 in /

4.37 x 48.46 x 51.66 cm

1.7 x 19.1 x 20 in /

4.37 x 48.46 x 51.66 cm

Weight 15.34 lbs / 6.96 kg 15.08 lbs / 6.84 kg 16.05 lbs / 7.28 kg 16.15 lbs / 7.33 kg
Power Supply 1025W AC 1025W AC 1025W AC 1025W AC
Power Load (idle/max) 110W / 1793W 110W / 1793W 110W / 1793W 110W / 1793W
Operating Temperature  32°F - 113 °F
0°C - 45°C
32°F - 113 °F
0°C - 45°C
32°F - 113 °F
0°C - 45°C
32°F - 113 °F
0°C - 45°C
Humidity 5% to 95% 5% to 95% 5% to 95% 5% to 95%
