Overview

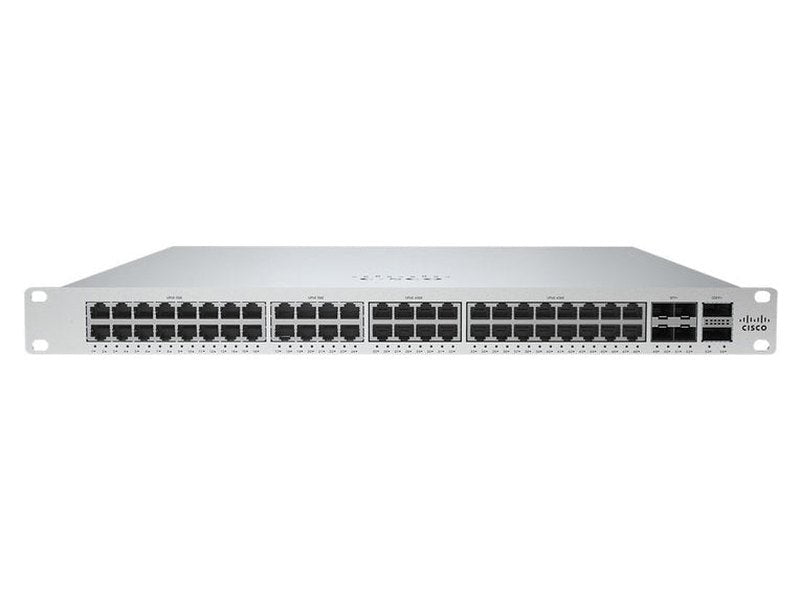

The MS355 is a multi-gigabit switch line designed to help prepare Organizations for the increased bandwidth requirements of the upcoming 802.11ax wireless standard with high-count mGig switch ports and increased switching capacity to meet the demands of next generation access points. Networks with sizeable wireless deployments such as universities, hospitals, and large public complexes like transportation centers can all benefit from the increased bandwidth capabilities of the MS355.
With 4 different models, each with multiple mGig RJ45 ports capable of negotiating up to 10Gbps, 40G QSFP+ ports, and dedicated 100G hardware stacking ports, the MS355 line is fully ready to support the future deployment of 802.11ax wireless infrastructure across a variety of different environments.
Features
|
|
Technical Breakdown
Hardware Breakdown
MS355-24X | MS355-24X2 | MS355-48X | MS355-48X2 | |
1GbE RJ45 | 16 |
- |
32 | 24 |
mGbE RJ45 (100M/1G/2.5G/5G/10G) | 8 | 24 | 16 | 24 |
10GbE SFP+ | 4 | 4 | 4 | 4 |
40GbE QSFP+ | 2 | 2 | 2 | 2 |
Hardware Stack Port | 2 | 2 | 2 | 2 |
Dedicated Mgmt Interface | 1 | 1 | 1 | 1 |
Hot Swap Power Supply | Yes, Dual | Yes, Dual | Yes, Dual | Yes, Dual |
Hot Swap Fans | Yes, 3x | Yes, 3x | Yes, 3x | Yes, 3x |
Network ports on the MS355 switches operate at full-duplex; half-duplex operation is not supported
Cabling Best Practices for Multi-Gigabit operations: While Category-5e cables can support multigigabit data rates upto 2.5/5 Gbps, external factors such as noise, alien crosstalk coupled with longer cable/cable bundle lengths can impede reliable link operation. Noise can originate from cable bundling, RFI, cable movement, lightning, power surges and other transient event. It is recommended to use Category-6a cabling for reliable multigigabit operations as it mitigates alien crosstalk by design.
Throughput and Capabilities
MS355-24X | MS355-24X2 | MS355-48X | MS355-48X2 | |
Layer 3 Routing | Yes | Yes | Yes | Yes |
UPoE Capable | Yes, 740W | Yes, 740W | Yes, 740W | Yes, 740W |
Switching Capacity | 352 Gbps | 640 Gbps | 544 Gbps | 688 Gbps |
Stacking Bandwidth | 400 Gbps | 400 Gbps | 400 Gbps | 400 Gbps |
Physical
MS355-24X | MS355-24X2 | MS355-48X | MS355-48X2 | |
Mount Type | 1U Rack Mount | 1U Rack Mount | 1U Rack Mount | 1U Rack Mount |
Dimensions (h x w x d) |
1.7 x 19.1 x 20 in / 4.37 x 48.46 x 51.66 cm |
1.7 x 19.1 x 20 in / 4.37 x 48.46 x 51.66 cm |
1.7 x 19.1 x 20 in / 4.37 x 48.46 x 51.66 cm |
1.7 x 19.1 x 20 in / 4.37 x 48.46 x 51.66 cm |
Weight | 15.34 lbs / 6.96 kg | 15.08 lbs / 6.84 kg | 16.05 lbs / 7.28 kg | 16.15 lbs / 7.33 kg |
Power Supply | 1025W AC | 1025W AC | 1025W AC | 1025W AC |
Power Load (idle/max) | 110W / 1793W | 110W / 1793W | 110W / 1793W | 110W / 1793W |
Operating Temperature |
32°F - 113 °F 0°C - 45°C |
32°F - 113 °F 0°C - 45°C |
32°F - 113 °F 0°C - 45°C |
32°F - 113 °F 0°C - 45°C |
Humidity | 5% to 95% | 5% to 95% | 5% to 95% | 5% to 95% |
