Overview

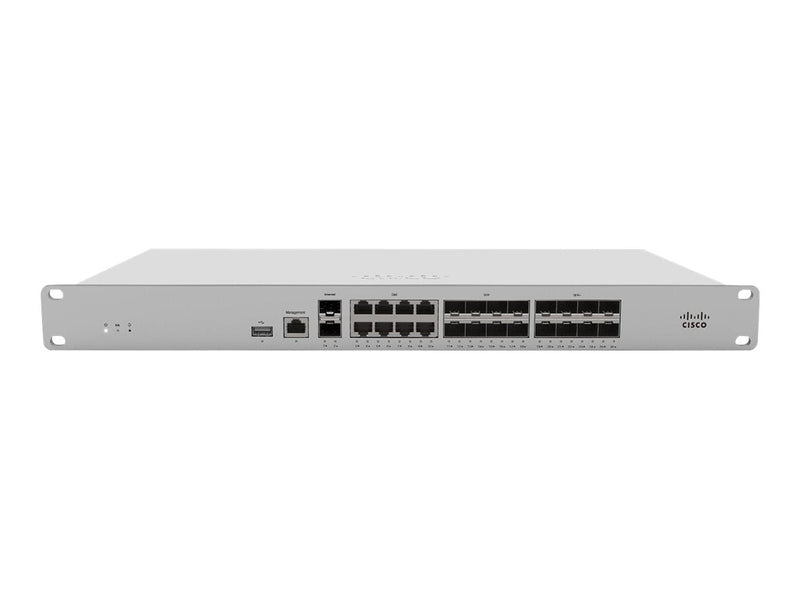

The Meraki MX450 is a Security & SD-WAN Appliance designed to provide SD-WAN Routing and UTM Firewall services for large Campus environments in addition to Secure VPN Concentration services for large VPN Topologies. It is ideal for network administrators who demand both ease of deployment and a state-of-the-art feature sets. The Meraki dashboard allows for simple and easy deployment of the MX450 with minimal preconfiguration in almost any location.
Includes 2x dedicated WAN 10G SFP+ ports. LAN Ports include 8x 10G SFP+, 8x 1G SFP, and 8x 1G RJ45 ports. The MX450 is ready for deployment in a variety of enterprise environments.
MX450 | |
---|---|
Maximum NAT Firewall Throughput | 10 Gbps |
Maximum NGFW Throughput | 3.5 Gbps |
Maximum Site-to-Site VPN Throughput | 4.5 Gbps |
Advanced Security Throughput | 7 Gbps |
Recommended Device Count | 10,000 |
Recommended Use Case | SD-WAN & UTM Edge for Large Campus / VPN Concentrator for Large VPN Topologies |
Technical Breakdown
Interfaces
WAN
-
2x SFP+ / 10 Gigabit Ethernet ports for WAN Uplink
LAN
-
8x SFP+ / 10 Gigabit Ethernet LAN Ports
-
8x SFP / 1 Gigabit Ethernet LAN Ports
-
8x RJ45 / Gigabit Ethernet LAN Ports
Management
-
1x RJ45 Management Interface
Physical
Mount Type |
Rack mount |
Dimensions (h x d x w) |
19” x 17.3 “ x 1.75” (483 mm x 440 mm x 44 mm) |
Weight | 16 lb (7.3kg) |
PSU model number |
Modular 100-220V 50/60Hz AC 2 x 250WAC PSU |
Power load (idle/max) |
105W / 190W |
Operating temperature |
32°F to 104°F 0°C to 40°C |
Humidity | 5% to 95% |
