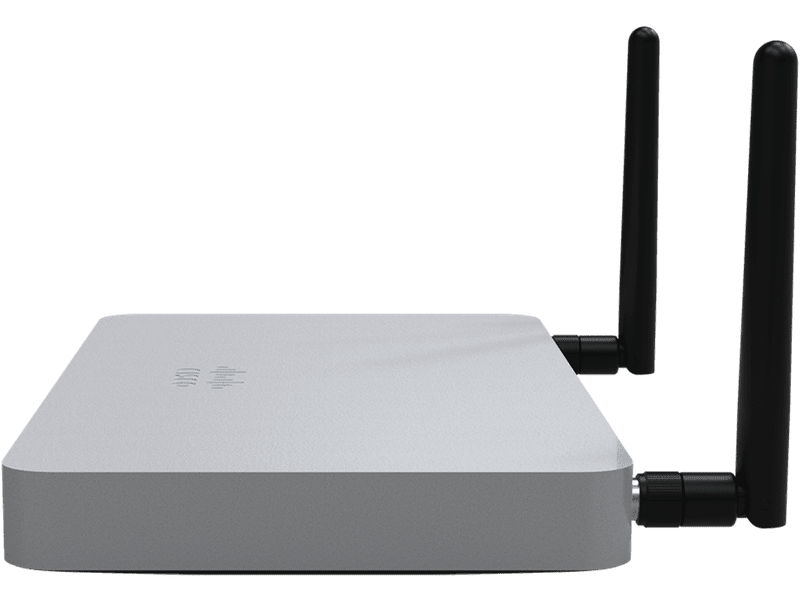

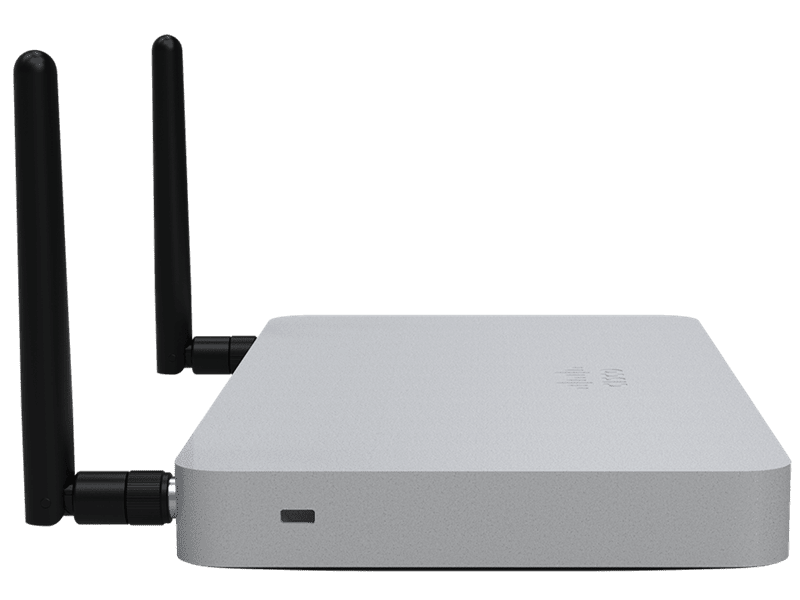

Cisco Meraki MX67W Router/Security Appliance with 802.11ac

Cisco MerakiSKU: MX67W-HW

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$974.00
Contact Us for ETA

Estimate shipping

Overview

Designed from the ground up with a new built-in cellular modem the MX67C and MX68CW are designed to simplify any deployment that requires a cellular uplink. This is ideal for small remote locations with unreliable WAN circuit providers or for sites that want the highest level of redundancy and availability. The Meraki Dashboard in addition with the built-in cellular uplink allows for simple and easy deployment of the MX67C or MX68CW with minimal pre-configuration in almost any location.

For smaller sites that don't require a cellular uplink but still need a capable device that can be easily deployed, the base models of the MX67 and MX68 are available without a built-in cellular uplink. The MX67 and MX68 are also available in Wireless models (MX67W / MX68CW) that can provide 802.11ac coverage for wireless clients.

MX67 MX68 front and top view











Features

  • Managed via Cisco Meraki Dashboard

  • Automatic Firmware upgrades

  • WAN Link Balancing

  • Automatic WAN Failover

  • SD-WAN over Meraki AutoVPN

  • L3/L7 Stateful Firewall

  • Geo based firewall rules

  • 1:1 and 1:Many NAT

  • Configurable VLANs / DHCP support

  • Static Routing

  • Client VPN endpoint

  • Meraki AutoVPN and IPSec VPN endpoint

  • Active Directory integration

  • Content Filtering

  • Malware Protection (AMP) w/ optional Threat Grid integration

  • IDS/IPS protection

  • Custom Traffic Shaping

  • Historical Client Usage statistics

  • Netflow support

  • Syslog integration

  • Remote Packet Capture tools

  • 802.1X wired and wireless support

Hardware Features

  • Dual WAN uplinks

  • Built-in Cellular CAT 6 LTE Uplink (Cellular models only, requires SIM card)

  • Built-in 802.11ac Wireless capability (Wireless models only)

  • Built-in PoE+ capabilities (MX68 only)

Configuration

The basic initial configuration of the MX67 and MX68 is just as simple as with other MX models. The links below provide additional information and instructions relating to each step in getting the device setup and configured for the first time.

  1. Claim the device to an Organization on the Meraki Dashboard
    1. If a Dashboard Organization does not yet exist, Create one
  2. Add the device to a Dashboard Network
    1. If a Network does not yet exist, Create one first
  3. Physically connect the device to the local network
    1. Before inserting the SIM card, ensure the SIM is activated with the PIN disabled or the correct PIN entered. It may be necessary to use an external modem, or work with the cellular provider to have the PIN disabled or the SIM unlocked. (Cellular models only)
    2. If a custom APN is needed, ensure it is applied from Cellular section of the Uplink tab on the Security & SD-WAN > Monitor > Appliance Status page. (Cellular models only)
    3. Insert an activated SIM card to allow the cellular uplink to function (Cellular models only)
    4. Ensure the cellular and/or wireless antennas are connected correctly (Cellular and Wireless models only)
    5. Power on the device and let it check in to the Dashboard
    6. If necessary, configure a Static IP on the WAN interface through the Local Status Page to allow it to check in.
  4. Finish configuring the device from the Meraki Dashboard
    1. Manage local VLANs
    2. Modify Firewall rules
    3. Configure VPN connectivity

Context and Comparisons

  MX64 MX65 MX67 MX68
Dual WAN Uplinks Yes (With LAN conversion) Yes Yes (With LAN conversion) Yes
Cellular Uplink Via 3rd Party USB Modem Via 3rd Party USB Modem Built-in (Cellular models only), Via 3rd Party USB Modem Built-in (Cellular Models Only), Via 3rd Party USB Modem
Stateful Firewall Throughput 250 Mbps 250Mbps 700 Mbps 700 Mbps
Maximum VPN Throughput 100 Mbps 100Mbps 400 Mbps 400 Mbps
Security Throughput 200 Mbps 200 Mbps 400 Mbps 400 Mbps
PoE Capabilities  No Yes, 2x GbE RJ45 LAN Ports No Yes, 2x GbE RJ45 LAN Ports
Recommended Device Count Small branch with
up to 50 devices
Small branch with
up to 50 devices
Small branch with
up to 50 devices
Small branch with
up to 50 devices



Note : in the Recommended use case field above the term users refers to the number of the Client devices that are connected to the network, you can check the number of those devices by navigating to Network-Wide > monitor > Clients, for more information regarding that page please refer to Clients Usage Page Overview .

Technical Breakdown

WAN Interface

MX67 / W MX67C MX68 / W MX68CW

1x Dedicated GbE RJ45

1x Convertible LAN GbE RJ45

1x Dedicated GbE RJ45

1x Convertible LAN GbE RJ45

2x Dedicated GbE RJ45 2x Dedicated GbE RJ45
Cellular Uplink via 3rd Party USB Modem Built-in Cellular Uplink or 3rd Party USB Modem Cellular Uplink via 3rd Party USB Modem Built-in Cellular Uplink or 3rd Party USB Modem

LAN Interface

MX67 / C / W MX68 / W / CW
3x Dedicated GbE RJ45 8x Dedicated GbE RJ45
1x Convertible LAN/WAN GbE RJ45 2x Dedicated GbE RJ45 PoE+

802.11 Wireless Interface

  MX67W MX68W / CW
Radio Information

802.11a/b/g/n/ac Wave 2 (2.4 or 5Ghz) 2x2 MU-MIMO

802.11a/b/g/n/ac Wave 2 (2.4 or 5Ghz) 2x2 MU-MIMO

Antennas  2 x 2 MU-MIMO with two spatial streams 2 x 2 MU-MIMO with two spatial streams
Maximum Data Rate 1.3 Gbps 1.3 Gbps

NOTE: The MX68CW has fixed antennas that serve both 802.11 and LTE connectivity and cannot be removed.

Both MX67W and MX68W support up to 4 SSIDs with integrated enterprise security and personal / guest access.

Cellular Interface

When bringing the units online for the very first time, MX67C/68CW units should be connected via a wired WAN interface to the Meraki Dashboard to retrieve an update to allow for proper use of the integrated cellular connectivity.



   US / North America Bands Worldwide Bands
HSPA+ 2, 4, 5 1, 3, 5/6, 8
FDD-LTE 2, 4, 5(*), 12/17, 13, 29 1, 3, 7, 8, 20, 26/5, 28A, 28B
TDD-LTE - 34, 39, 40, 41/38
TD-SCDMA Bands - 34 (Band A), 39 (Band F)
GSM Bands 850, 900, 1800, 1900 900, 1800
CA 2xDL-CA up to 40Mhz: 2+17, 4+17, 2+29, 4+29, 4+5, 2+5 2xDL-CA up to 40Mhz: 3+20, 3+8, 7+20, 1+8, 1+5, 3+5
Certifications PTCRB (US) RCM (ANZ, APAC), GCF (EU)
Certified Carriers Verizon, AT&T, T-Mobile Bell Canada, Telus, Orange, Telia, Telecom Italia, Telenor, Telefonica, Post, BT, STC, NTT docomo, Telstra, Optus, Spark NZ, Vodafone NZ, SingTel , Vodafone (UK, Germany, Ireland, Spain, Italy, Portugal)

Carrier compatibility is generally based on having compatible bands on the modem. In the open market, carriers may only require regulatory domain certifications and open market certifications, like the PTCRB and GCF, to be compatible for their network. Sometimes carriers will require additional testing before a device can be used on their network. The section Certified Carriers is based on Meraki device certifications being approved by those specific carriers. A carrier being listed above means that they have officially certified the Meraki product for their cellular network. There maybe many unlisted carriers could be functionally compatible with Meraki devices. The list of certified carriers is based on the carrier validating Meraki per their network parameter requirements. If a carrier you are looking to use is not listed above, it could be that they do not require additional compliance testing for their network.

Physical

  MX67  MX67W MX67C MX68 MX68W MX68CW
Mount Type Desktop / Wall Mount Desktop / Wall Mount Desktop / Wall Mount Desktop / Wall Mount Desktop / Wall Mount Desktop / Wall Mount

Dimensions

(h x d x w)

1.1 x 5.1 x 9.4 in /

27 x 130 x 239 mm

1.1 x 6.5 x 9.4 in /

27 x 164 x 239 mm

1.1 x 6.9 x 9.4 in /

27 x 176 x 239 mm

1.1 x 5.8 x 11.2 in /

27 x 148 x 284 mm

1.1 x 6.8 x 11.2 in /

27 x 172 x 284 mm

1.1 x 7.0 x 11.2 in /

27 x178 x 284 mm

Weight 1.74 lb / 0.79 kg 1.84 lb / 0.83 kg 1.87 lb / 0.85 kg 2.46 lb / 1.12 kg 2.55 lb / 1.16 kg 2.61 lb / 1.18 kg
Power Supply 18W DC 18W DC 18W DC 100W DC 100W DC 100W DC
Power Load (idle/max) 5W / 14W 15W / 23W 6W / 17W 11W / 79W 19W / 87W 19W / 89W
Operating Temperature

32°F - 113°F

0°C - 45°C

32°F - 113°F

0°C - 45°C

32°F - 113°F

0°C - 45°C

32°F - 113 °F

0°C - 45°C

32°F - 113 °F

0°C - 45°C

32°F - 113 °F

0°C - 45°C

Humidity 5% to 95% 5% to 95% 5% to 95% 5% to 95% 5% to 95% 5% to 95%
