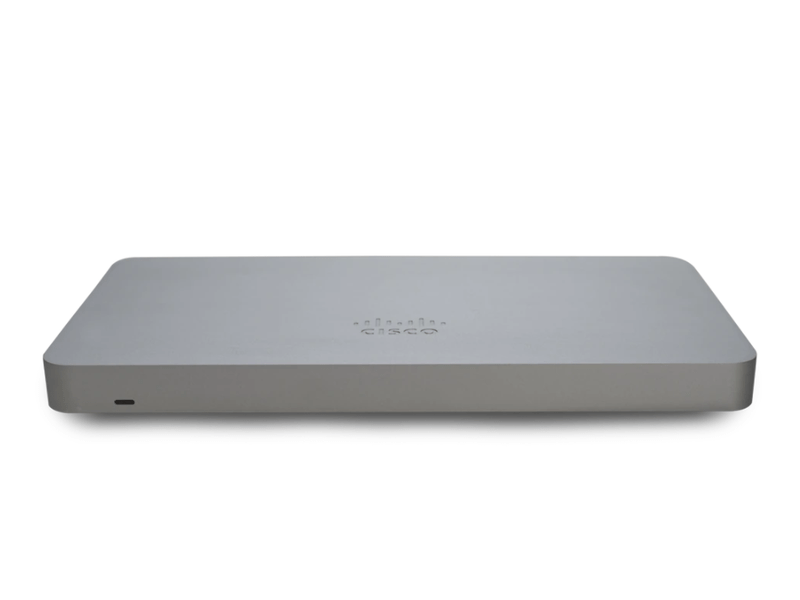

The Meraki MX75 is an enterprise security appliance designed for distributed deployments that require remote administration across Medium branch environments. It is ideal for network administrators who demand both ease of deployment and a state-of-the-art feature set. The Meraki Dashboard allows for simple and easy deployment of the MX75 with minimal pre-configuration in almost any location.
Providing 3 dedicated WAN uplinks, 1 x GbE SFP port and 2 x RJ45 GbE ports. The LAN ports include 10 x RJ45 GbE ports. The MX75 is ready for deployment in a variety of enterprise environments. The MX75 appliance provides the following features:
Features
|
|
Interfaces
-
1 x 1 Gigabit Ethernet SFP port dedicated for the WAN uplinks
-
2 x RJ45 / 1 Gigabit Ethernet port dedicated for the WAN uplinks
-
8 x RJ45 / 1 Gigabit Ethernet LAN ports
-
2 x RJ45 / 1 Gigabit Ethernet LAN ports with PoE+ capabilities
-
1 x USB 3.0 port
Context and Comparisons
MX75 | MX85 | |
---|---|---|
# of WAN Uplinks | 3 | 4 |
Stateful Firewall Throughput | 1 Gbps | 1 Gbps |
Maximum VPN Throughput | 1 Gbps | 1 Gbps |
Advanced Security Throughput | 1 Gbps | 1 Gbps |
PoE Capabilities | Yes, 2x RJ45 / 1 Gigabit Ethernet port (LAN) | Yes, 1x RJ45 / 1 Gigabit Ethernet port (WAN) |
Technical Breakdown
WAN Interface
MX75 | MX85 |
1 x Dedicated 1 Gigabit Ethernet SFP 2 x Dedicated 1 Gigabit Ethernet RJ45 |
2x Dedicated 1 Gigabit Ethernet SFP 2x Dedicated 1 Gigabit Ethernet RJ45 |
Note: The MX firmware currently supports a maximum of two Active WAN Uplinks. For more information about the interface behaviors, please refer to our WAN behavior on MX75/85/95/105 documentation and MultiWAN_Backup_Uplink.
LAN Interface
MX75 | MX85 |
10 x Dedicated 1 Gigabit Ethernet RJ45 | 8 x Dedicated 1 Gigabit Ethernet RJ45 2 x Dedicated 1 Gigabit Ethernet SFP |
Throughput and Capabilities
MX75 | MX85 | |
Recommended Device Count | Small branch with up to 200 devices | Small to medium branch with up to 250 devices |
Max site-to-site VPN Throughput | 1 Gbps | 1 Gbps |
Max Concurrent site-to-site VPN Tunnels | 75 | 200 |
Max Stateful Firewall Throughput | 1 Gbps | 1 Gbps |
Max Throughput with All Advanced Security features | 1 Gbps | 1 Gbps |
Physical
MX75 | MX85 | |
Mount Type | Desktop | Rack Mount |
Dimensions (h x d x w) |
1.06" x 5.83" x 11.14" 27 x 148 x 283 mm |
1.7" x 9.8“ x 19” 43.8 x 250 x 484.6mm |
Weight | 1.87 lb (0.85kg) | 8.2lb (3.7kg) |
Input Operating Voltage |
90-264VAC (47-63Hz) |
90-264VAC (47-63Hz) |
PSU Model Number | MA-PWR-100WAC-A | N/A |
Power Load (idle/max) | 12W / 96W | 12W / 55W |
Fan | Yes | No |
Operating Temperature |
32°F to 113°F (0°C to 45°C) |
32°F to 104°F (0°C to 40°C) |
Humidity | 5% to 95% | 5% to 95% |
