Overview

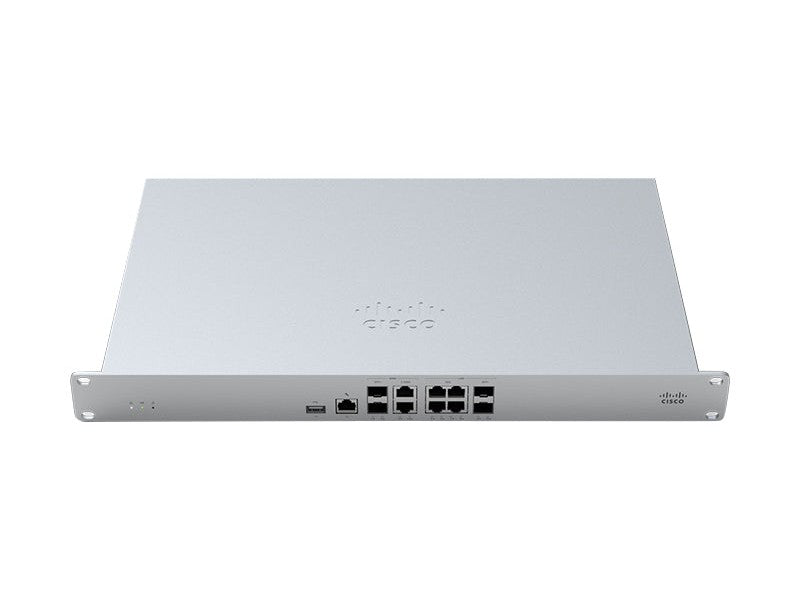

The Meraki MX95/105 is an enterprise security appliance designed for distributed deployments that require remote administration across Medium branch environments. It is ideal for network administrators who demand both ease of deployment and a state-of-the-art feature set. The Meraki dashboard allows for simple and easy deployment of the MX95/105 with minimal preconfiguration in almost any location.
Includes 4x dedicated WAN uplinks, 2x 10G SFP+ ports, and 2x RJ45 2.5G mGig ports. The LAN ports include 4x RJ45 1 GbE ports and 2x SFP+ 10G ports. The MX95/105 is ready for deployment in a variety of enterprise environments. MX95/105 appliances provide the following features:
Features
|
|
Interfaces
-
2x SFP+ / 10 Gigabit Ethernet ports dedicated for the WAN uplink
-
1x RJ45 / 2.5 Gigabit Ethernet port dedicated for the WAN uplink
-
1x RJ45 / 2.5 Gigabit Ethernet port with PoE+ capabilities dedicated for the WAN uplink
-
4x RJ45 / 1 Gigabit Ethernet LAN ports
-
2x SFP+ / 10 Gigabit Ethernet LAN ports
-
1x RJ45 management port for local status page access
-
1x USB 3.0 port
MX85 | MX95 | MX105 | |
---|---|---|---|
# of WAN uplinks | 4 | 4 | 4 |
Stateful firewall throughput | 1 Gbps | 2.5 Gbps | 5 Gbps |
Maximum VPN throughput | 1 Gbps | 2.5 Gbps | 3 Gbps |
Advanced security throughput |
1 Gbps |
2 Gbps |
2.5 Gbps |
PoE Capabilities |
Yes, 1x RJ45 / 1 Gigabit Ethernet port (WAN) |
Yes, 1x RJ45 / 2.5 Gigabit Ethernet port (WAN) |
Yes, 1x RJ45 / 2.5 Gigabit Ethernet port (WAN) |
Note: MX85/95/105 supports PoE+ on GbE Port 4. For more information on the behavior of WAN ports, please see WAN behavior on MX75/85/95/105
Technical Breakdown
WAN Interface
MX85 | MX95/105 |
2x dedicated 1 Gigabit Ethernet SFP 2x dedicated 1 Gigabit Ethernet RJ45 |
2x dedicated 10 Gigabit Ethernet SFP+ 2x dedicated 2.5 Gigabit Ethernet RJ45 |
Note: The MX firmware currently supports a maximum of two active WAN uplinks. For more information about the interface behaviors, please refer to our WAN behavior on MX75/85/95/105 documentation and MultiWAN_Backup_Uplink.
LAN Interface
MX85 | MX95/105 |
8x dedicated 1 Gigabit Ethernet RJ45 2x dedicated 1 Gigabit Ethernet SFP |
4x dedicated 1 Gigabit Ethernet RJ45 2x dedicated 10 Gigabit Ethernet SFP+ |
Throughput and Capabilities
MX85 | MX95 | MX105 | |
Recommended Device Count |
Small to medium branch with up to 250 devices |
Mid to large enterprise locations with 500 devices |
Mid to large enterprise locations with 750 devices |
Max site-to-site VPN throughput | 500 Mbps | 800 Mbps | 1 Gbps |
Max concurrent site-to-site VPN tunnels | 200 | 500 | 1000 |
Max stateful firewall throughput | 1 Gbps | 2.5 Gbps | 3 Gbps |
Max throughput with all advanced security features | 1 Gbps | 2 Gbps | 2.5 Gbps |
Physical
MX85 | MX-95 | MX105 | |
Mount Type | Rack mount | Rack mount | Rack mount |
Dimensions (h x d x w) |
1.7 x 9.8 x 19 (in) 43.8 x 250 x 484.6 (mm) |
1.73 x 11.23 x 19 (in) 44 x 285.2 x 484.6 (mm) |
1.73 x 12.4 x 19 (in) 44 x 315 x 484.6 (mm) |
Weight |
8.2 lb (3.7 kg) |
6.99 lbs (3.17 kg) |
10.74 lbs (4.87 kg) 2 fans and 2 PSUs inserted |
Input operating voltage |
90-264 VAC (47-63 Hz) |
100-127 VAC, 200-240 VAC (50/60 Hz) |
100-127 VAC, 200-240 VAC (50/60 Hz) |
PSU model number | N/A | N/A |
Removable MA-PWR-150 W AC |
Power load (idle/max) | 12 W / 55 W | 42 W/ 109 W | 53 W/ 123 W |
Operating temperature |
32 °F to 104 °F (0 °C to 40 °C) |
32 °F to 104 °F (0 °C to 40 °C) |
32 °F to 104 °F (0 °C to 40 °C) |
Humidity | 5% to 95% | 5% to 95% | 5% to 95% |
