Product Overview

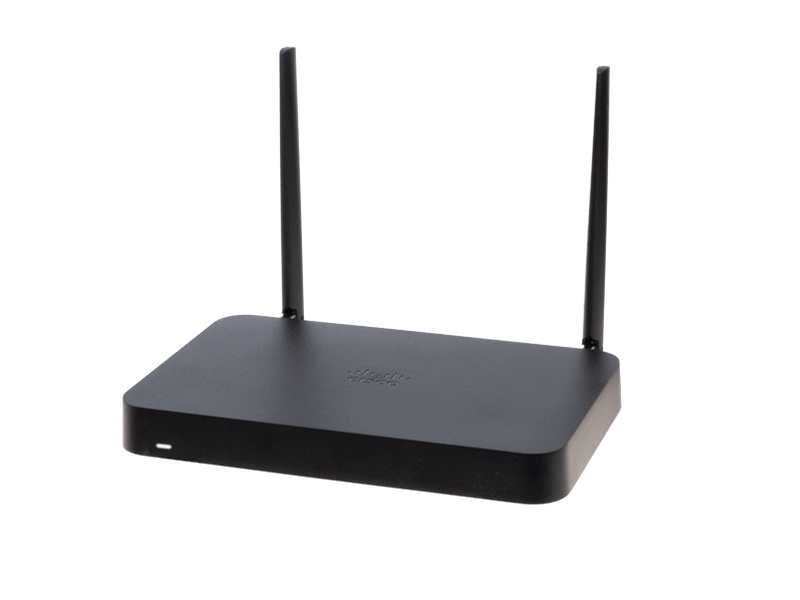

The Cisco Meraki Z-Series teleworker gateway is an enterprise class firewall, VPN gateway and router. Each model offers wireless connectivity, five gigabit ethernet ports, including a built-in PoE-enabled port for VoIP phones and other powered devices. Each model is designed to securely extend the power of Meraki cloud managed networking to almost any location. With a built-in LTE modem, the Z4C simplifies any deployment that requires a backup cellular uplink, or is positioned in a remote location.
Features
-
Managed via Cisco Meraki Dashboard
-
Automatic Firmware upgrades
-
Automatic WAN Failover to Cellular Uplink
-
L3/L7 Stateful Firewall
-
1:1 and 1:Many NAT
-
Configurable VLANs / DHCP support
-
Static Routing
-
Client VPN endpoint
-
Meraki AutoVPN and L2TP/IPSec VPN endpoint
-
Custom Traffic Shaping
-
Historical Client Usage statistics
-
Netflow support
-
Syslog integration
-
Remote Packet Capture tools
Context and Comparisons
|
Z4 |
Z4C |
Max Stateful Firewall Throughput in NAT mode |
500 Mbps |
500 Mbps |
Max VPN Throughput |
250 Mbps |
250 Mbps |
Backup Cellular Uplink |
N/A |
Built-in CAT12 LTE Modem |
PoE Capabilities |
Yes, 1x GbE RJ45 LAN Ports (802.3at) |
Yes, 1x GbE RJ45 LAN Ports (802.3at) |
WiFi |
Dual-band 2x2 WiFi 6 |
Dual-band 2x2 WiFi 6 |
Recommended LAN Clients |
Up to 15 |
Up to 15 |
Physical Specifications
|
Z4 |
Z4C |
RJ45 WAN Interfaces |
1x Dedicated GbE RJ45 |
1x Dedicated GbE RJ45 |
Cellular WAN Interfaces |
N/A |
Built-in Cellular Uplink |
LAN Interfaces - Dedicated |
4x Dedicated GbE RJ45 |
4x Dedicated GbE RJ45 |
Wireless Radio Information |
WiFi 6 2x2 MU-MIMO |
WiFi 6 2x2 MU-MIMO |
Antennas |
2 x 2 MU-MIMO with two spatial streams |
2 x 2 MU-MIMO with two spatial streams 2x External LTE Antenna |
Maximum Wireless Data Rate |
1.5 Gbps* | 1.5 Gbps* |
Mount Type |
Desktop / Wall Mount |
Desktop / Wall Mount |
Dimensions (h x d x w) |
6.83 x 4.41 x 1.04 in / 173.4 x 112 x 26.3 mm |
7.9 x 4.41 x 1.04 in / 200 x 112 x 26 mm |
Weight |
0.85 lbs / 0.386 kg |
1.1 lbs / 0.487 kg |
Power Supply |
50W (54 V / 0.92 A) |
50W (54 V / 0.92 A) |
Power Load (max) |
42W |
46W |
Operating Temperature |
32°F - 113 °F 0°C - 45°C |
32°F - 113 °F 0°C - 45°C |
Storage and Transportation Temperature |
-4°F - 158°F -20°C - 70°C |
-4°F - 158°F -20°C - 70° C |
Humidity |
5% to 95% |
5% to 95% |
* Refers to maximum over-the-air data frame rate capability of the radio chipset, and may exceed data rates allowed by IEEE 802.11ax operation.
Cellular Interface
|
Cellular Bands |
LTE |
1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 42, 43, 48, 66, 71 |
Certified Certifications |
PTCRB (US), GCF (EU), FCC (US) |
Certification |
AT&T (US), T-Mobile (US), Verizon Wireless (US), AT&T FirstNet (US) - Capable (Certified) |
Tested Carriers |
AT&T (US), T-Mobile (US), Verizon (US), Optus (Australia), O2 (Germany), Vodafone (EU), Telstra (Australia), Bell (Canda), EE (UK), Swisscom, Deutsche Telekom (Germany), Telia (SE), Movistar (ES), Orange (EU) |
