Description

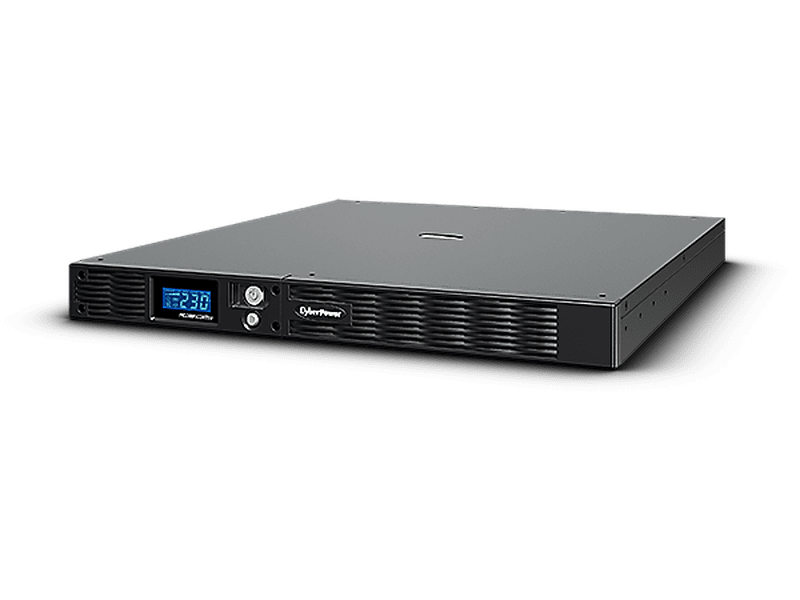

CyberPower PR1000ELCDRT1U Line-Interactive UPS,
with seamless Pure Sine Wave, provides the best power protection available for
office system devices including PCs, workstations, networking devices, and
peripherals. It’s typically integrated in the back office, server room, and data
center environment. The rackmount / tower convertible design gives it enhanced
flexibility for installation and operation in almost any environment.
Multiple UPS systems can be connected to a single main
Emergency Power Off (EPO) switch. In the event of an emergency, the UPS systems
can be shut down immediately with the EPO button. As for battery maintenance,
the UPS allows battery hot-swapping, which enables users to perform normal
battery maintenance without significant interruption.
FEATURES:
Line-interactive UPS Topology
Energy Saving Technology
Active PFC Compatible
Pure Sine Wave Output
Automatic Voltage Regulation (AVR)
Overload Protection
Critical/ Non-critical Load Outlets
Hot-swappable Battery Packs
Surge and Spike Protection
EMI and RFI Filtration
LCD Status Display
USB Connectivity Port
Serial Connectivity Port
Emergency Power Off (EPO) Port
PowerPanel® Management Software
SNMP/ HTTP Remote Management Capability
Rack/ Tower Convertible Configurations
TYPICAL APPLICATION
PCs & Workstations
Computers & Laptops
Printers & Office Devices
SOHO Networking Devices
Telecom & Network Equipment
Video/Audio Equipment
Industrial Equipment
Mission-Critical Equipment
Generator/Motor/Pump
Back Office
Server Room
Data Center
FEATURES FOCUS
Emergency Power Off
The emergency power off is used to immediately power
down the UPS in order to terminate its output power in case of a disaster, for
example during a building fire. Multiple UPS systems can be connected to a
single access point, and by manually activating it can immediately shutdown all
the UPS systems to ensure rescue personnel safety.
Critical/Noncritical Load Outlets
By dividing the outlets according to the importance of
the connected loads, users are offered the flexibility to wisely manage the
limited battery power during the event of power outage. In the state of a power
failure, the UPS battery power can be preserve by terminating the power provided
to the non-critical outlets, sparing the power to allow more runtime for
critical loads to perform graceful shutdown.
SPECIFICATIONS:
GENERAL
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS™ Bypass Technology
Active PFC Compatibility: Yes
INPUT
Nominal Input Voltage (Vac): 220/230/240
Input Voltage Range (Vac): 160-286
Adjustable Voltage Range (Vac):150-300Vac
OUTPUT
Capacity (VA/Watts): 1000/670
On Battery Waveform: Pure Sine Wave
BATTERY
Runtime at Half/Full Load (min): 14/5
User Replaceable: Yes
Hot-Swappable: Yes
Battery Type: Sealed Lead-acid
Replacement Battery Pack: RBP0027
PHYSICAL
Form Factor: Rack/Tower
Enclosure Construction: Metal
Color: Black
Rackmount Ears: Yes
