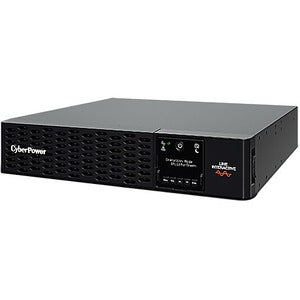

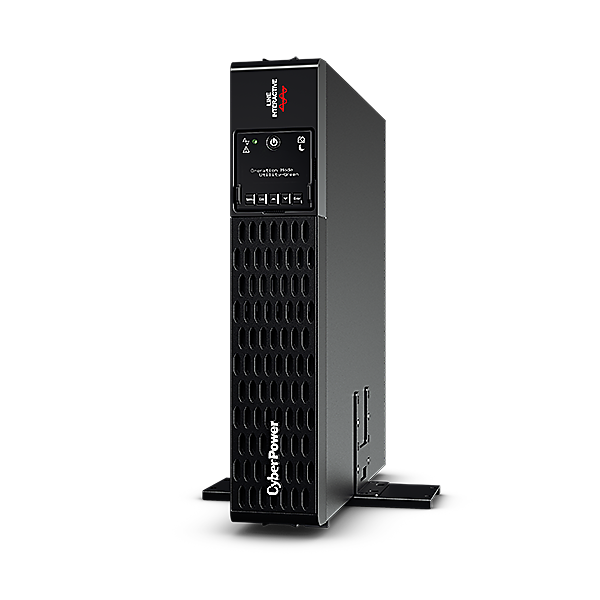

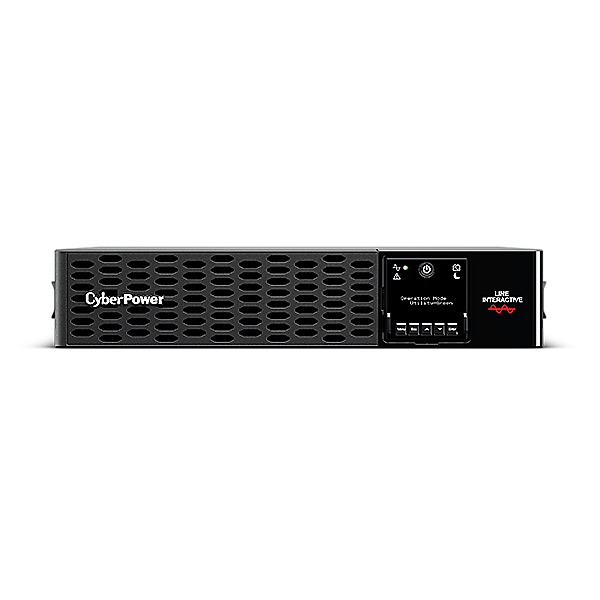

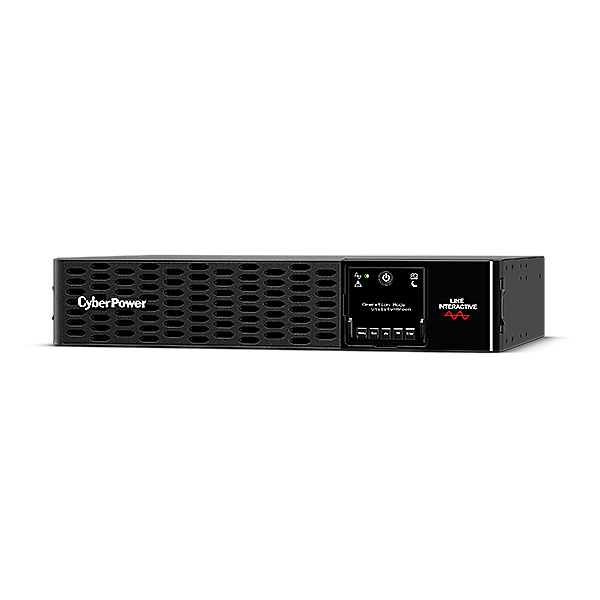

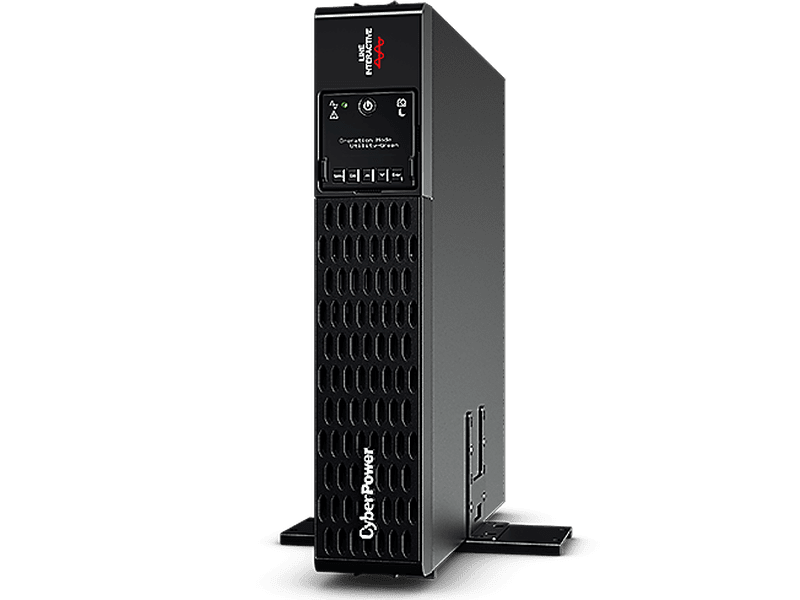

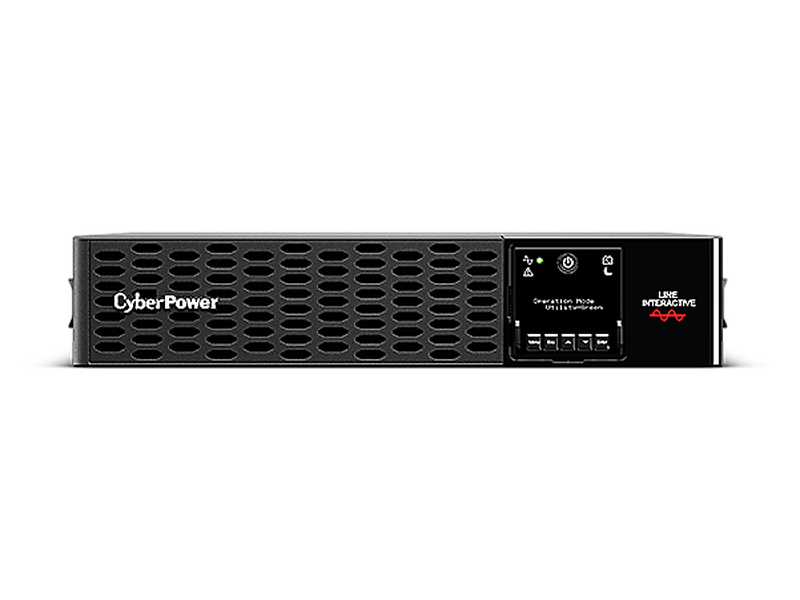

Cyberpower Pro Rack/Tower LCD 1000VA/1000W 10A 2U Line Interactive UPS (PR1000ERTXL2U)

CyberpowerSKU: PR1000ERTXL2U

CyberPower Professional Rackmount Series 1000VA/1000Watts UPS, Line Interactive, Rackmount Configuration, 2RU Height, 10x IEC C13

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$1,135.00
Contact Us for ETA

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Cyberpower Pro Rack/Tower LCD 1000VA/1000W 10A 2U Line Interactive UPS (PR1000ERTXL2U)

CyberPower PR1000ERTXL2U with rackmount design guarantees power backup protection for home theatre systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.

The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.



  • Line-interactive UPS Topology

  • Active PFC Compatible

  • Toolless Battery Replacement

  • Automatic Voltage Regulation (AVR)

  • Critical/Non-critical Load Outlets

  • Hot-swappable Batteries

  • Surge and Spike Protection

  • LCD Status Display

  • Serial Connectivity Port

  • PowerPanel Management Software

  • Energy Saving Technology

  • Pure Sine Wave Output

  • High Output Power Factor

  • Overload Protection

  • Quick Charging Technology

  • Extended Battery Module (EBM)

  • EMI and RFI Filtration

  • USB Connectivity Port

  • Emergency Power Off (EPO) Port



Specifications

GENERAL


Phase

Single Phase

Form Factor

Rackmount, Tower

UPS Topology

Line-interactive

Energy Saving Technology

GreenPower UPS™ Bypass Technology

Active PFC Compatibility

Yes

INPUT


Nominal Input Voltage ( Vac )

220

230

240

Input Voltage Range ( Vac )

159 ~ 288

Adjustable Voltage Range ( Vac )

151 ~ 302 Vac

Input Frequency ( Hz )

50 ± 3

60 ± 3

Input Frequency Detection

Auto-sensing

Rated Input Current ( A )

10

Input Connector Type

IEC C14

Detachable Power Cord Plug Type

AU x 1

Power Cord Length (ft.)

10

Power Cord Length (m.)

3.05

OUTPUT


Capacity (VA)

1000

Capacity (Watts)

1000

On Battery Waveform

Pure Sine Wave

On Battery Voltage(s) ( Vac )

220 ± 5 %

230 ± 5 %

240 ± 5 %

On Battery Frequency ( Hz )

50 ± 1%

60 ± 1%

Power Factor

1

Automatic Voltage Regulation (AVR)

Double Boost, Single Buck

Overload Protection

Internal Current Limiting, Circuit Breaker

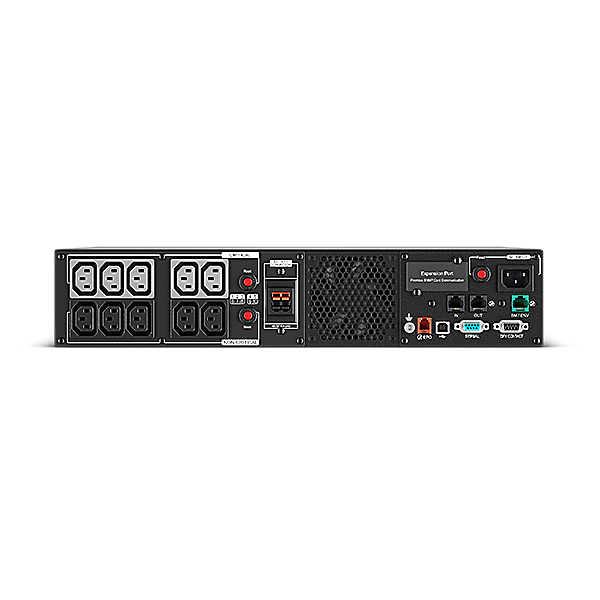

Outlet(s) - Total

10

Outlet Type

IEC C13 x 10

Outlet(s) - Battery & Surge Protected

10

Outlet(s) - Critical Load (CL)

5

Outlet(s) - Non-Critical Load (NCL)

5

Typical Transfer Time ( ms )

4

BATTERY


Runtime at Half Load ( min )

21.3

Runtime at Full Load ( min )

7.9

Typical Recharge Time ( Hours )

3

Start On Battery

Yes

User-replaceable

Yes

Hot-swappable

Yes

Battery Type

Sealed Lead-acid

Battery Cartridge (RBP)

RBP0128

Battery Cartridge (RBP) Quantity ( pcs )

1

Battery Quantity (Each RBP) ( pcs )

4

Compatible Extended Battery Module (EBM)

BP48VP2U01 (Built-in Charger)

Max. EBM Quantity ( pcs )

Unlimited

SURGE PROTECTION & FILTERING


Surge Suppression ( Joules )

2430

EMI/RFI Filtration

Yes

Network Protection RJ45

1-in, 1-out

MANAGEMENT & COMMUNICATIONS


LCD Panel

Yes

LCD Orientation

Rotatable LCD – via Setting

LCD Information Display

Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log

LCD Setting & Control

Mode Setting, Alarm Setting, Input & Output, Battery Setting,   Communication

LED Indicators

Power On, Line Mode, Battery Mode, UPS Fault

HID Compliant USB Port(s)

1

Dry Contact (with Relay)

Yes

Emergency Power Off (EPO) Port

Yes

Audible Alarms

Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault

Management Cable ( pcs )

Power Cord x2, USB Cable x1, Serial Cable x1, EPO Cable x1, Phone   Line x1

Power Management Software

PowerPanel Business (Recommended)

PowerPanel Cloud Service

Yes - 90 Days Free Trial with PowerPanel Personal/Business

PHYSICAL


Enclosure Construction

Metal

Color

Black

Rackmount Rail

Yes

Rackmount Ears

Yes

PHYSICAL SIZE - UPS MODULE


Dimensions (WxHxD) (in.)

17.1 x 3.4 x 16.2

Dimensions (WxHxD) (mm.)

433 x 86.5 x 412

Weight (lbs.)

52

Weight (kg.)

23.6

Installed Rack Height ( U )

2

ENVIRONMENTAL


Operating Temperature (°F)

32 ~ 104

Operating Temperature (°C)

0 ~ 40

Operating Relative Humidity (Non-condensing) ( % )

0 ~ 95

Operating Elevation ( feet/meters )

0-9,843 feet (0-3,000 meters)

Storage Temperature (°F)

5 ~ 113

Storage Temperature (°C)

-15 ~ 45

Storage Relative Humidity   (Non-condensing) ( % )

0 ~ 95

Storage Elevation ( feet/meters )

0-49,213 feet (0-15,000 meters)

Online Thermal Dissipation ( BTU/hr )

47.4

Audible Noise at 1.0M from Surface of Unit ( dBA )

57.5

CERTIFICATIONS


Certifications

CE, FCC Class B, UL, RCM, VCCI

RoHS

Yes
