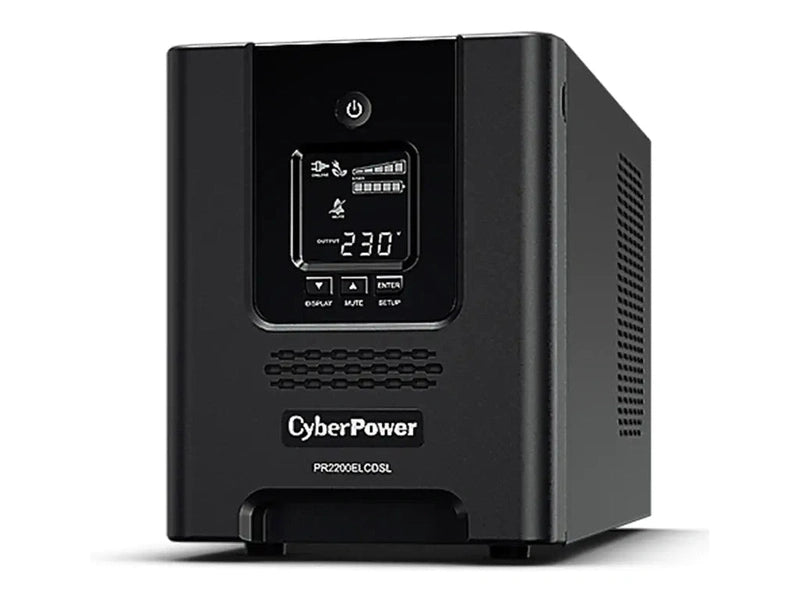

CyberPower PRO series 2200VA Tower UPS with LCD (PR2200ELCDSL)
Smart App UPS Systems
PR2200ELCDSL
VA 2200 Watts 1980 Output Voltage ( Vac ) 230 ± 10 % Half Load Runtime ( min ) 12 Outlets IEC C13 x 8
CyberPower PR2200ELCDSL Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment.
The UPS can be locally managed via USB or serial ports, or remotely managed via an SNMP Card (an optional Remote Management Card), allowing administrators and users unsurpassed flexibility to remotely access each UPS through the network to perform real-time monitoring, UPS configurations, and scheduled system shutdowns by using PowerPanel Management software.
Specifications
GENERAL |
|
Phase |
Single Phase |
Form Factor |
Tower |
UPS Topology |
Line-interactive |
Energy Saving Technology |
GreenPower UPS™ Bypass Technology |
Energy Star Qualified |
Yes |
Active PFC Compatibility |
Yes |
INPUT |
|
Nominal Input Voltage ( Vac ) |
230 |
Input Voltage Range ( Vac ) |
151 ~ 296 |
Input Frequency ( Hz ) |
50 ± 3 60 ± 3 |
Input Frequency Detection |
Auto-sensing |
Rated Input Current ( A ) |
10 |
Input Connector Type |
IEC C14 |
Detachable Power Cord Plug Type |
AU x 1 IEC C14 x 1 |
Power Cord Length (ft.) |
10 6 |
Power Cord Length (m.) |
3.05 1.83 |
OUTPUT |
|
Capacity (VA) |
2200 |
Capacity (Watts) |
1980 |
On Battery Waveform |
Pure Sine Wave |
On Battery Voltage(s) ( Vac ) |
230 ± 10% |
On Battery Frequency ( Hz ) |
50 ± 1% 60 ± 1% |
Automatic Voltage Regulation (AVR) |
Double Boost, Single Buck |
Overload Protection |
Internal Current Limiting, Circuit Breaker |
Outlet(s) - Total |
8 |
Outlet Type |
IEC C13 x 8 |
Outlet(s) - Battery & Surge Protected |
8 |
Typical Transfer Time ( ms ) |
4 |
BATTERY |
|
Runtime at Half Load ( min ) |
12 |
Runtime at Full Load ( min ) |
3 |
Typical Recharge Time ( Hours ) |
8 |
Start On Battery |
Yes |
User-replaceable |
Yes |
Hot-swappable |
Yes |
Battery Type |
Sealed Lead-acid |
Battery Cartridge (RBP) |
RBP0116 |
Battery Cartridge (RBP) Quantity ( pcs ) |
1 |
SURGE PROTECTION & FILTERING |
|
Surge Suppression ( Joules ) |
405 |
EMI/RFI Filtration |
Yes |
MANAGEMENT & COMMUNICATIONS |
|
LCD Panel |
Yes |
LCD Information Display |
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log |
LCD Setting & Control |
Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Event & Log |
LED Indicators |
Power On |
HID Compliant USB Port(s) |
1 |
Emergency Power Off (EPO) Port |
Yes |
Audible Alarms |
Battery Mode, Low Battery, Overload, UPS Fault |
Management Cable ( pcs ) |
Power Cord x5, USB Cable x1, EPO Cable x1 |
Power Management Software |
PowerPanel Business (Recommended) |
SNMP/HTTP Remote Monitoring |
Yes - with optional RMCARD205 |
PHYSICAL |
|
Enclosure Construction |
Metal |
Colour |
Black |
PHYSICAL SIZE - UPS MODULE |
|
Dimensions (WxHxD) (in.) |
6.69 x 8.70 x 17.00 |
Dimensions (WxHxD) (mm.) |
170 x 221 x 432 |
Weight (lbs.) |
56.2 |
Weight (kg.) |
25.5 |
ENVIRONMENTAL |
|
Operating Temperature (°F) |
32 ~ 104 |
Operating Temperature (°C) |
0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % ) |
0 ~ 95 |
Operating Elevation ( feet/meters ) |
0-9,843 feet (0-3,000 meters) |
Storage Temperature (°F) |
5 ~ 113 |
Storage Temperature (°C) |
-15 ~ 45 |
Storage Relative Humidity (Non-condensing) ( % ) |
0 ~ 95 |
Storage Elevation ( feet/meters ) |
0-49,213 feet (0-15,000 meters) |
Online Thermal Dissipation ( BTU/hr ) |
155 |
CERTIFICATIONS |
|
Certifications |
CE, RCM |
RoHS |
Yes |
