Description

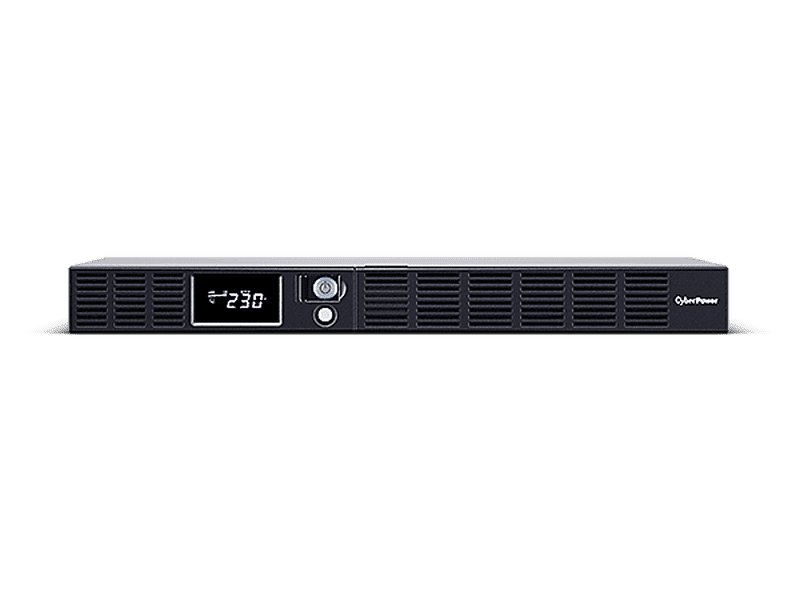

Cyberpower Smart APP Office Rackmount Series LCD 600VA 360W 1U Line Interactive UPS
CyberPower OR600ERM1U-AU Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office and server room environment to ensure a reliable backup power supply during power failures.
The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from being subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
FEATURES
- Line-interactive UPS Topology
- Simulated Sine Wave Output
- Overload Protection
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- USB Connectivity Port
- SNMP/HTTP Remote Management Capability (Optional)
- Energy Saving Technology
- Automatic Voltage Regulation (AVR)
- Hot-swappable Batteries
- EMI and RFI Filtration
- LCD Status Display
- PowerPanel® Management Software
Specifications
Brand Name
Cyberpower
Product Number
OR600ERM1U-AU
Phase
Single Phase
Form Factor
Rackmount
UPS Topology
Line-interactive
Energy Saving Technology
GreenPower UPS™ Bypass Technology
Nominal Input Voltage ( Vac )
230
Input Voltage Range ( Vac )
165 ~ 271
Input Frequency ( Hz )
50 ± 3
60 ± 3
Input Frequency Detection
Auto-sensing
Rated Input Current ( A )
10
Input Connector Type
IEC C14
Detachable Power Cord Plug Type
IEC C14 x 1
Power Cord Length (ft.)
6
Power Cord Length (m.)
1.83
Capacity (VA)
600
Capacity (Watts)
360
On Battery Waveform
Simulated Sine Wave
On Battery Voltage(s) ( Vac )
230 ± 10%
On Battery Frequency ( Hz )
50 ± 1%
60 ± 1%
Power Factor
0.6
Automatic Voltage Regulation (AVR)
Single Boost
Overload Protection
Internal Current Limiting, Circuit Breaker
Outlet(s) - Total
6
Outlet Type
IEC C13 x 6
Outlet(s) - Battery & Surge Protected
4
Outlet(s) - Surge-Only Protected
2
Typical Transfer Time ( ms )
4
Runtime at Half Load ( min )
13
Runtime at Full Load ( min )
4
Typical Recharge Time ( Hours )
8
Start On Battery
Yes
User-replaceable
Yes
Hot-swappable
Yes
Battery Type
Sealed Lead-acid
Battery Cartridge
RBP0019
RBP Quantity ( pcs )
1
Surge Suppression ( Joules )
405
EMI/RFI Filtration
Yes
Phone/Network Protection RJ11/RJ45 (Combo)
1-in, 1-out
LCD Panel
Yes
LCD Information Display
Operation Type, Power Status, Battery Status, Load Status, Other Information
LCD Setting & Control
Mode Setting, Alarm Setting
LED Indicators
Power On
HID Compliant USB Port(s)
1
Serial Port
Dry Contact
Audible Alarms
Battery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs )
Power Cord x5, USB Cable x1
Power Management Software
PowerPanel® Business (Recommended)
SNMP/HTTP Remote Monitoring
Yes - with optional RMCARD205
Enclosure Construction
Metal
Color
Silver
Rackmount Ears
Yes
Dimensions (WxHxD) (in.)
17.0 x 1.7 x 9.3
Dimensions (WxHxD) (mm.)
433 x 44 x 235
Operating Temperature (°F)
32 ~ 104
Operating Temperature (°C)
0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )
0 ~ 95
Operating Elevation ( feet/meters )
0-9,843 feet (0-3,000 meters)
Storage Temperature (°F)
5 ~ 113
Storage Temperature (°C)
-15 ~ 45
Storage Relative Humidity (Non-condensing) ( % )
0 ~ 95
Storage Elevation ( feet/meters )
0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation ( BTU/hr )
20
Certifications
CE, EAC, RCM
RoHS
Yes
