Description

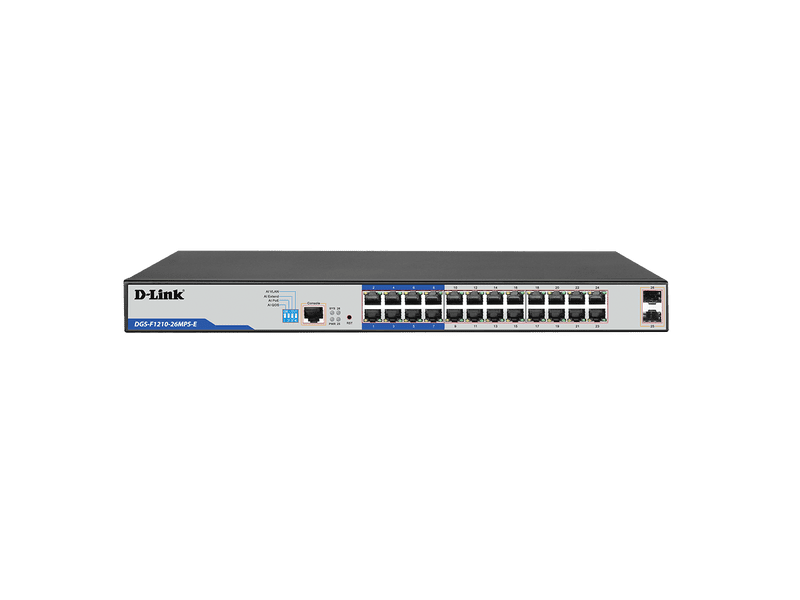

26-Port Gigabit Smart Managed PoE+ Switch with 24 PoE+ Ports (8 Long Reach 250m) and 2 SFP Ports
DGS-F1210-26MPS-E
- 26 Gigabit Ports: 24 RJ45 and 2 SFP
- 24 PoE Ports with 380 Watts power budget
- 8 Ports with 250m Long Reach PoE Technology
- 52Gbps Switching capacity
- No-configuration shortcut buttons
- LACP, RSTP, MSTP, ERPS and more
- Advanced Security Features
Gigabit Smart Managed PoE+ Switches with Long Reach PoE
The DGS-F1210 Series is a diverse group of Gigabit Long Reach PoE Smart Managed Switches. With a wide variety of port options, you can provide power for your PoE powered devices such as IP Cameras, CCTV, VoIP, Wi-Fi Access Points etc. There is one to suit any budget or requirement.
Up to 250m PoE and Date Transmission
Equipped with Long Reach PoE technology, the DGS-F1210 Series have the capability to supply 802.3af/at PoE and connectivity on cables up to 250m long.
6KV Surge Protection
D-Link DGS-F1210 Series Switches are enhanced with 6KV surge protection. This effectively protects the Switch against sudden electrical surges caused by events such as lightning strikes or unstable electrical current. Built-in 6KV surge protection significantly reduces the chances of equipment being damaged from electrical surges, and effectively lowers maintenance costs by minimising the need for expensive equipment repairs or replacement.
Mission-Critical Resiliency
The DGS-F1210 Series features sub-50ms recovery thanks to its Ethernet Ring Protection Switching (ERPS) capabilities, while its Spanning Tree Protocols (STP) enable alternative paths for Layer 2 failover. Link Aggregation (802.3ad) and Quality of Service (QoS) with Weighted Round Robin (WRR) are also enabled, so that your VoIP and IPTV applications run smooth and seamless. The network OAM allows service providers to fulfill their Service-Level Agreements to provide carrier-grade service.
Robust Security
The DGS-F1210 Series maintains strict control over network access thanks to IEEE 802.1X port/host-based access control, VLANs, and RADIUS authentication, enhanced by IP-MAC-Port Binding at the user level. The Loop Protection guards the network from broadcast, multicast, and unicast flooding, while Access Control Listing (ACL) bolsters network security without sacrificing switch performance.
Reliable, Even Under Pressure.
The DGS-F1210 Series features a host of features than enhance reliability. With support for PoE, connected devices can be powered in remote locations where an electric outlet is difficult to access making deployment much simpler. Should power related issues occur, there are also capabilities such as PoE Watchdog, 6kV surge protection on all Gigabit Ethernet Ports and Cable Diagnstics for quick troubleshooting. This makes for all around cheaper maintenance costs, and lower OPEX.
User Friendly Web Interface
The DGS-F1210 Series Switches offer a range of essential and advanced features that help to ensure your network is running 24/7. With the easy to navigate, user-friendly Web Interface these Switches are a breeze to configure, saving your administrator time and effort.
Specifications
Switch Type : | Layer 2 |
Type of Port Required : | Gigabit Copper|Gigabit Fibre |
Number of Ports : | 24 - 28 |
PoE Type Required : | PoE|PoE+|Extended PoE Budget|250m Long Reach PoE |
High Speed Stacking : | No |
Design : | Desktop|Rackmountable |
1000Base-T ports : | 26 ports |
SFP ports : | 2 Ports |
PoE ports : | 24 Ports |
PoE Budget : | 380 Watts |
Switching Capacity : | 52 Gbps |
QoS : | Yes |
Spanning Tree Protocol : | Yes |
Link Aggregation : | Yes |
VLAN : | 4K Groups |
Voice VLAN : | Yes |
IGMP Snooping : | Yes |
802.1X Access Control : | Yes |
DHCP Server Screening : | Yes |
SNMP : | Yes |
Cable Diagnostics : | Yes |
Energy Saving Technology : | EEE Compliant |
19" Rack Mountable : | Yes |
Fans : | 3 |
Built-in PSU : | Yes |
Dimensions (Size) : | 440 x 293 x 44mm |
Web-based GUI : | Yes |
Command Line Interface : | Yes |
Types of ports : | SFP Ports|Gigabit Ports |
Static Routing : | No |
Switch Series : | DGS-F1210 Series |
Product Series : | Long Reach PoE Switches |
