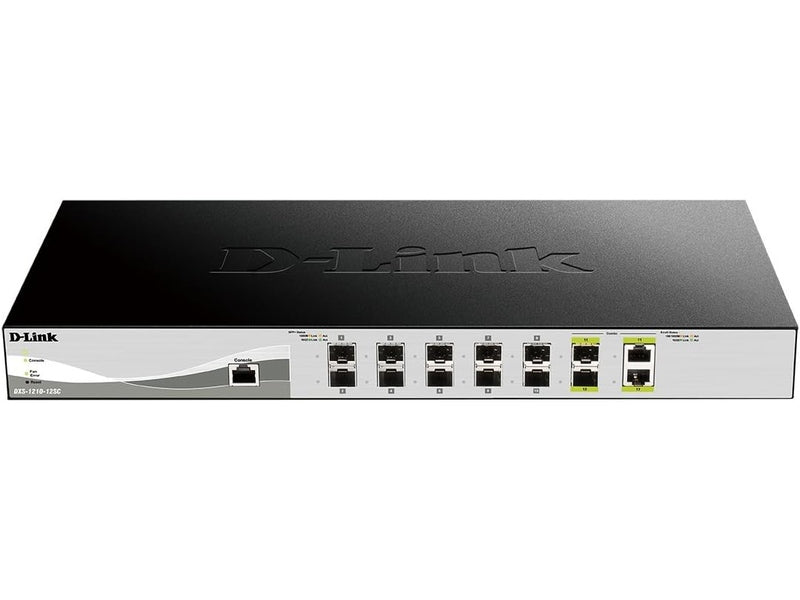

12-Port 10 Gigabit Smart Managed Switch with 12 SFP+ Ports and 2 10GBase-T (Combo) ports
DXS-1210-12SC
- High performance switch with twelve 10GbE ports
- Twelve SFP+ ports with two 10GBase-T Combo ports
- Easy to configure with rich set of SMB features
- Automatic Voice and Surveillance VLANs
- Inter-VLAN and static routing support, IPv6 ready
- Advanced security features
- Latest D-Link Green energy saving features
Features
10 Gigabit Ethernet For Everyone
10 Gigabit Switches used to be the exclusive realm of large companies. Now, D-Link's DXS-1210 Series of 10 Gigabit Ethernet Smart Managed Switches brings the business benefits of high performance and low latency of 10G Ethernet to businesses of all sizes.
Flexibility without Compromise

Enterprise Functionality at Small Business Prices
High Performance and Low Latency
Switching capacity of up to 320 Gbps for the DXS-1210-16TC, up to 240 Gbps for the DXS-1210-12TC and up to 200 Gbps for the DXS-1210-10TS.
Advanced Green Technology
Specifications
Type
|
Smart managed |
---|---|
Number of ports
|
16 to 30 ports 5 to 14 ports |
Layer
|
Layer 2+ |
Main type of ports
|
100/1000/2.5G/5G/10GBASE-T Ethernet |
Type of uplink ports
|
10GbE SFP+ Combo 10GBASE-T/SFP+ |
Switching capacity
|
200 Gbps 240 Gbps 320 Gbps |
D-Link Green
|
✔
|
802.3az Energy-Efficient Ethernet support
|
✔
|
Form Factor
|
Rackmountable |
Housing
|
Metal |
Jumbo frame
|
✔
|
Cable diagnostics
|
✔
|
MAC address
|
16K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Ethernet ring protection switching (ERPS)
|
✔
|
Link aggregation
|
802.1AX 802.3ad |
VLAN group (max static)
|
4K |
VLAN type
|
GVRP Port-based |
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Auto Voice VLAN |
IP interfaces
|
16 |
Static route for IPv4/IPv6
|
IPv4 - 32 IPv6 - 32 |
Number of QoS queues per port
|
8 |
CoS based on contents
|
✔
|
Bandwidth control
|
64 Kbps minimum granularity |
ACL type
|
VLAN-based |
ACL based on packet contents
|
✔
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
IP-MAC-port binding (IMPB) / Smart Binding
|
✔
|
ARP spoofing
|
✔
|
802.1X access control
|
✔
|
RADIUS/TACACS+ authentication
|
✔
|
SNMP (v1/v2c/v3)
|
✔
|
RMON v1/v2
|
✔
|
LLDP
|
✔
|
LLDP-MED
|
✔
|
ICMPv6
|
✔
|
