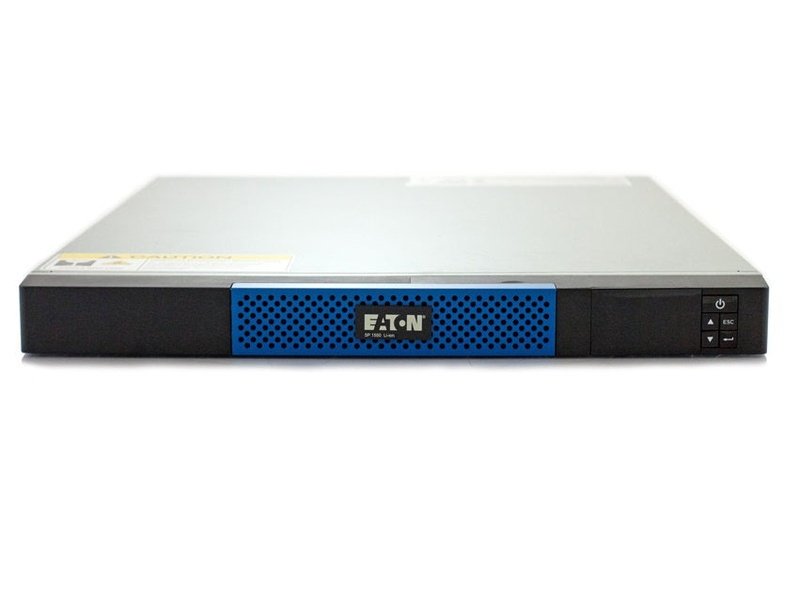

Eaton 5P 1550VA / 1100W 1U Rackmount Line-Interactive UPS [5P1550GR-L]
The Eaton 5P UPS delivers reliable enterprise class backup power in tower and rackmount form factors with an efficiency rating of up to 99%. With ENERGY STAR qualified models, the 5P's graphical LCD screen allows you to view UPS status in a single glance and provides more available power than comparable UPSs. When paired with Eaton Intelligent Power Manager software, the 5P allows you to seamlessly manage your connected equipment, even in virtualized environments.
Eaton 5P Global 1U UPS, 1550 VA, 1100W, Input: (1) C14, Outputs: (6) C13, Rackmount/Wallmount, Lithium-ion battery, true sine wave, network card optional
GENERAL SPECIFICATIONS
Feature | Details |
---|---|
PRODUCT NAME | Eaton 5P UPS |
CATALOG NUMBER | 5P1550GR-L |
UPC | 743172090409 |
PRODUCT LENGTH/DEPTH | 21.8 in |
PRODUCT HEIGHT | 1.7 in |
PRODUCT WIDTH | 17.2 in |
PRODUCT WEIGHT | 36 lb |
COMPLIANCES | FCC Part 15 Class A Subpart B Sections 15.107b, 15.109b, RoHS Compliant, CE Marked |
CERTIFICATIONS |
UL 1778 UL 497A cUL Listed cULus Listed IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B |
PRODUCT SPECIFICATIONS
Feature | Details |
---|---|
SPECIAL FEATURES | Eaton 5P UPS with lithium-ion batteries |
TYPE | UPS |
TOPOLOGY | Line-interactive |
FORM FACTOR | Rack |
RACK SIZE | 1U |
CONSTRUCTION TYPE | 482.6 mm (19 inch) device |
COLOR | Black/silver |
VA RATING | 1550 VA |
WATTAGE | 1100 W |
RACK MOUNTING KIT | Yes |
PACKAGE CONTENTS |
|
AUTO SHUTDOWN FUNCTION | Yes |
PRIMARY FREQUENCY - MAX | 70 Hz |
PRIMARY FREQUENCY - MIN | 47 Hz |
INPUT CONNECTION | C14 |
NOMINAL FREQUENCY | 50/60 Hz |
INPUT FREQUENCY RANGE | 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode |
INPUT POWER FACTOR | 1 |
RECEPTACLE | (6) C13 |
NUMBER OF OUTPUTS C13 | 6 |
OUTPUT WAVEFORM | Sine wave |
VOLTAGE | 230V |
OUTPUT NOMINAL VOLTAGE | 230V default (200/208/220/230/240V) |
FEED TYPE | 1 |
VOLTAGE TYPE | AC |
RUNTIME GRAPH | Available |
BATTERY MANAGEMENT | Integrated battery management system (BMS) for temperature regulation and life cycle monitoring |
BATTERY REPLACEMENT | User replaceable |
BATTERY TYPE | Lithium-ion |
RUNTIME AT HALF LOAD | 11 min |
COMMUNICATION | RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included |
EXPANSION SLOTS | One slot; Gigabit Network Card (Network-M2) is optional |
ETHERNET INTERFACE | No |
INCLUDES NETWORK CARD | No |
SOFTWARE COMPATIBILITY | Eaton Intelligent Power Manager |
USER INTERFACE | LCD graphical display |
TYPE OF INTERFACE | Other |
POTENTIAL FREE SWITCH CONTACT | Yes |
ALTITUDE | Up to 10,000 ft (3000m) without de-rating |
BTU RATING | Online: 113, Battery 714 |
NOISE LEVEL | <45 dB at 1 meter |
RELATIVE HUMIDITY | 0-90% non-condensing |
TEMPERATURE RANGE | 0° to 40°C (32° to 104°F) |
MOUNTING METHOD | Rackmount |
INPUT VOLTAGE - MAX | 294 V |
INPUT VOLTAGE - MIN | 150 V |
OUTPUT VOLTAGE - MAX | 240 V |
OUTPUT VOLTAGE - MIN | 200 V |
SECONDARY FREQUENCY - MAX | 60 Hz |
SECONDARY FREQUENCY - MIN | 50 Hz |
EFFICIENCY | 97 |
INPUT VOLTAGE RANGE | 160-294 V (adjustable to 150 V-294 V) |
OUTPUT FREQUENCY | 50/60 Hz |
OUTPUT POWER FACTOR | 0.7 |
PHASE (INPUT) | Single-phase |
PHASE (OUTPUT) | Single-phase |
RUNTIME AT FULL LOAD | 4 min |
