Description

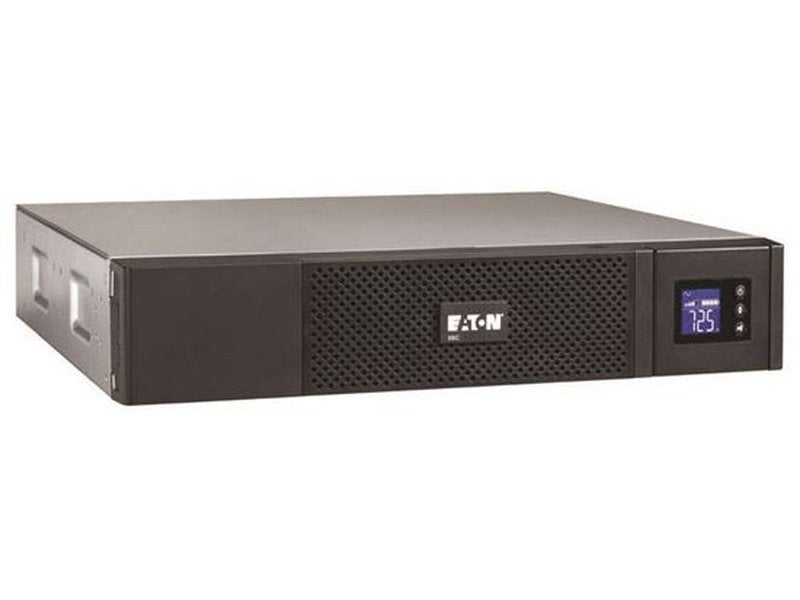

Eaton 5SC 1500VA/1050W 230V Line Interactive 2U Rackmount UPS
SKU: 5SC1500IR-AU
Manageability
- The LCD interface provides clear status of the UPS key parameters such as input and output voltage, load and battery level, and estimated runtime. Essential configuration capabilities are also offered for output voltage, audible alarm and sensitivity.
- The 5SC offers USB and serial connectivity. USB port is HID compliant for automatic integration into Windows, Mac OS and Linux.
- A slot for an optional communication card (including SNMP/ Web card or relay contact card) is available on rack and R/T models. Eaton's Intelligent Power® Software Suite insures compatibility with all major OS including virtualization software.
Reliability
- Pure sinewave output: When operating in battery mode the 5SC provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
- Buck and Boost operation corrects a wide range of input voltage variations through continuous regulation, without the use of batteries.
- Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative threestage charging system that extends battery life by up to 50%.
Flexibility
- Designed to fit into short depth wall enclosures down to 500mm, 2 post racks or to be wall mounted.
- Rail kits and ANZ Input cord are included as standard.
- Easy battery replacement from front panel to extend UPS life.
Specifications
Backup/Run Time (Half Load) | 13 Minute |
Maximum Operating Temperature | 40°C |
Serial Port | Yes |
USB (HID Compliant) Port | Yes |
Weight (Approximate) | 17.80 kg |
Form Factor | Rack-mountable |
Rack Height | 2U |
Height | 86.2 mm |
Width | 440 mm |
Depth | 405 mm |
Input Voltage | 230 V AC |
Output Voltage | 220 V AC |
240 V AC | |
230 V AC | |
Load Capacity | 1.50 kVA/1.05 kW |
Waveform Type | Pure Sine Wave |
Input Voltage Range | 184 V AC - 276 V AC |
Output Frequency | 60 Hz |
Application/Usage | Network |
Server | |
Ticket Machine | |
Network Storage Device | |
ATM | |
Kiosk | |
Plug/Connector Type | IEC 60320 C14 |
Receptacle Type | IEC 60320 C13 |
Receptacle Detail | 8 x IEC 60320 C13 |
