Description

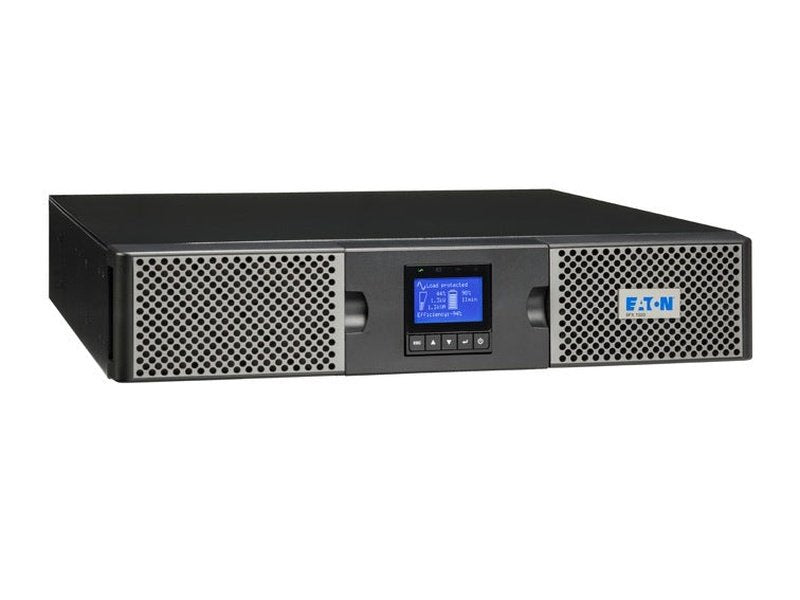

Eaton 9PX 1000VA/1000W Rack/Tower, 10Amp Input
SKU: 9PX1000IRT2UANZ
The Eaton 9PX is a proven, best-in-class online double-conversion rack-mount/tower UPS. The 9PX UPS features ABM technology, which extends battery service life up to 50%, and offers flexibility in battery types with nine models offering lithium-ion batteries. Select 9PX UPS models are bundled with the Eaton Gigabit Network card, the first in the industry to comply with both UL and IEC cybersecurity standards. To complete your back-up power solution, pair your 9PX with the Brightlayer Data Centers suite for seamless management of your connected equipment.
Applications: IT, edge networks, medical/healthcare, universities, schools, industrial automation, harsh electrical environments, testing
- POWER RATING: 1 kVA - 22 kVA
- TOPOLOGY: Online
- FORM FACTOR: Rack/Tower
More power
Energy Efficient
Pay as you grow
Virtualisation-ready
Watch Video
Case Study
Specifications
GENERAL SPECIFICATIONS
Feature | Details |
---|---|
PRODUCT NAME | Eaton 9PX UPS |
CATALOG NUMBER | 9PX1000IRT2UANZ |
PRODUCT LENGTH/DEPTH | 440 mm |
PRODUCT HEIGHT | 86.5 mm |
PRODUCT WIDTH | 450 mm |
PRODUCT WEIGHT | 17.4 kg |
COMPLIANCES | CB, CE Marked, RCM |
CERTIFICATIONS | IEC 61000-4, EN 62040-3, IEC/EN 62040-2, IEC/EN 62040-1 |
PRODUCT SPECIFICATIONS
Feature | Details |
---|---|
TOPOLOGY | Online/Double-conversion |
FORM FACTOR | Rack/tower |
CONSTRUCTION TYPE | 482.6 mm (19 inch) device |
COLOR | Black/silver |
VA RATING | 1000 VA |
WATTAGE | 1000 W |
INTERNAL BYPASS | Yes |
HOT SWAP POWER | No |
AUTO SHUTDOWN FUNCTION | Yes |
INPUT NOMINAL VOLTAGE | 240V |
NOMINAL FREQUENCY | 50/60 Hz |
INPUT FREQUENCY RANGE | 40-70 Hz |
RECEPTACLE | IEC C13 x 8 |
OUTPUT WAVEFORM | Sine wave |
VOLTAGE | 240V |
OUTPUT NOMINAL VOLTAGE | 240V |
VOLTAGE TYPE | AC |
RUNTIME GRAPH | View runtime graph |
BATTERY REPLACEMENT | Hot swappable |
BATTERY TYPE | Sealed, lead-acid |
EXTENDED BATTERY CAPABILITY | Yes |
EXPANSION SLOTS | One slot for optional communication card |
INCLUDES NETWORK CARD | No |
SOFTWARE COMPATIBILITY | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
USER INTERFACE | Multilingual graphical LCD display |
ALTITUDE | <1000m for nominal power, 10% power degrading every 1000m (up to 3000m) |
NOISE LEVEL | <35 dB at 1 meter |
RELATIVE HUMIDITY | 0-96% non-condensing |
TEMPERATURE RANGE | 0° to 40°C (32° to 104°F) |
INPUT VOLTAGE RANGE | 176-276 Vac without derating (up to 100-276 Vac with derating) |
OUTPUT FREQUENCY | 50/60 Hz |
OUTPUT POWER FACTOR | 1.0 |
PHASE (INPUT) | Single-phase |
PHASE (OUTPUT) | Single-phase |
