Description
Overview

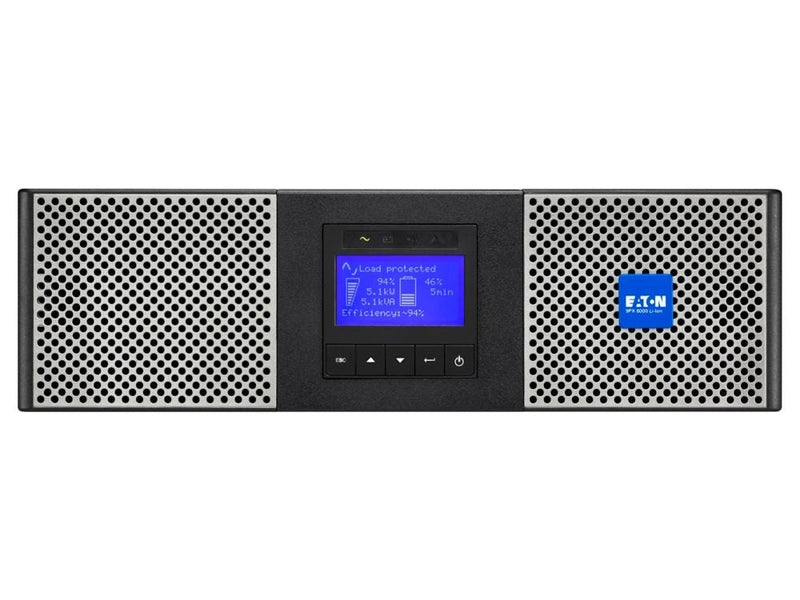

9Px 6KVA Li-Ion UPS R/T 3U (Includes Network Card & Rail Kit)
Specifications
9Px 6KVA Li-Ion UPS R/T 3U (Includes Network Card & Rail Kit)
Specifications
Category | Specifications |
---|---|
Battery Management | ABM & Temperature compensated charging method (user selectable), Automatic battery test, Deep discharge protection, Automatic recognition of external battery units |
Battery Replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
Battery Quantity | 15 |
Battery Rating | 6 Ah |
Battery Type | Lithium-ion |
Extended Battery Capability | Yes |
Electrical Input | Input connection: Hardwired/fixed connection, Input nominal voltage: 230V default (200/208/220/230/240V), Input voltage range: 176-276 V (100-276 V with derating), Nominal frequency: 50/60Hz Input frequency range: 40-70Hz Input power factor: >.99 |
Electrical Output | Receptacle: (8) C13, (2) C19, Hardwired, Topology: Online/Double-conversion, Wattage: 5400 W, VA rating: 6000 VA, Output waveform: Sine wave, Voltage: 230V, Output power factor: 0.9, Output nominal voltage: 230V default (200/208/220/230/240V), Output voltage range: 200/208/220/230/240 V +/- 1%, Voltage distortion output (linear load) - max 2, Output frequency: 50/60 Hz, Feed type: 1 |
Communications | USB port (HID compliant), Serial port (RS232), Mini terminal block for remote On/Off, Mini-terminal block for remote power off, Dry contacts (4 outputs, relay, DB9), DB15 for parallel operation, Network card, Expansion slots: One slot, network card included, Ethernet interface: Yes, Includes network card: Yes, Software compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector, User interface: Multilingual graphical LCD display, Potential free switch contact:Yes, |
Environmental | Altitude: 3000 m, BTU Rating Online: 1105, Noise level: <45 dB at 1 meter, Relative humidity: 0-95% non-condensing, Temperature range: 0° to 40°C (32° to 104°F) |
Additional Specifications | Double conversion topology, Constantly monitors power conditions and regulates voltage and frequency, Provides more real power (watts) to protect more equipment with a 0.9 power factor, Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs, Internal bypass allows service continuity in case of UPS fault, Next-generation graphical LCD display, Network card and rackmounting kit delivered as standard, Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat), Meter energy consumption (at the UPS level) Parallel operation using HotSync technology, Hot swappable batteries |
Form Factor | Rack/tower |
Rack Size | 3U |
Construction Type | 482.6 mm (19 inch) device |
Rack Mounting Kit | Yes |
Efficiency | 94 |
Package Contents | UPS, (2) IEC-IEC output cables, Network Management Card, USB cable, Serial cable, (2) Supports for tower mounting, (2) brackets for 19’ mounting, (2) Rack-mounting kit, Cable locking system, Safety instructions, Quickstart guide |
Phase (Input) | 1 |
Phase (Output) | 1 |
Internal Bypass | Yes |
Hot Swap Power | No |
Auto Shutdown Function | Yes |
