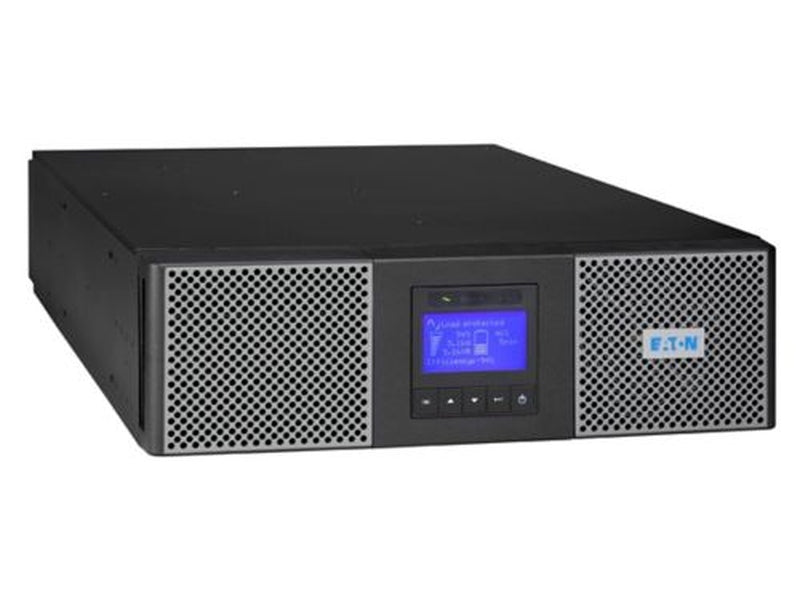

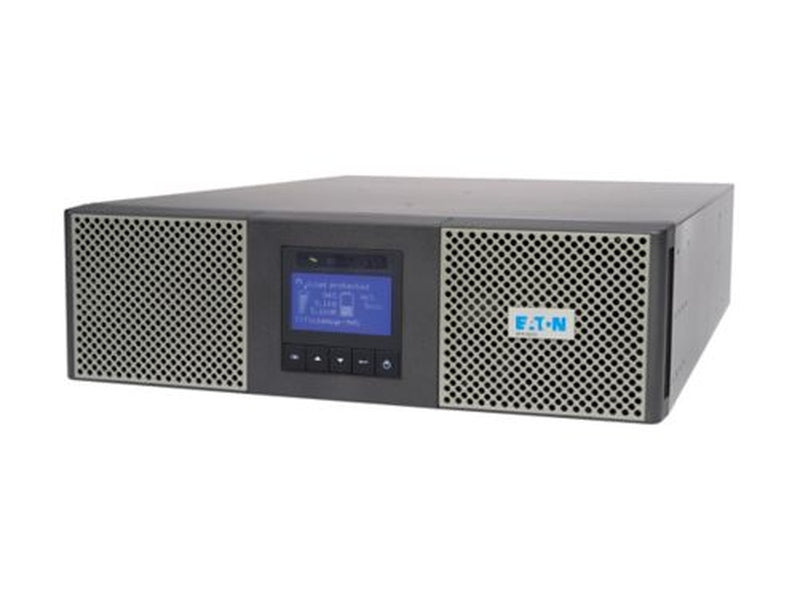

The Eaton 9PX UPS series delivers energy-efficient power protection for small-to-medium-sized data centres, IT rooms, and critical infrastructure. IT and facilities managers who are worried about energy costs and looking for next-generation power protection solutions will find the 9PX to be a great choice. It offers online double-conversion protection while using 40% less energy, making it a great choice for both groups.
Using HotSync technology, the 9PX (5-11kVA) may be paralleled to generate twice the power of a unitary product at no additional expense.
Energy Star certified, the Eaton 9PX offers the best level of energy and cooling expense savings. 9PX can measure energy consumption down to the outlet group level. Monitor kWh numbers using the LCD or Eaton's Intelligent Power Software.
With an optional network card and Eaton's Intelligent Power Software Suite, which works with all major operating systems, the 9PX works well with leading virtualization environments and cloud orchestration platforms.
Specifications
The Eaton 9PX UPS series delivers energy-efficient power protection for small-to-medium-sized data centres, IT rooms, and critical infrastructure. IT and facilities managers who are worried about energy costs and looking for next-generation power protection solutions will find the 9PX to be a great choice. It offers online double-conversion protection while using 40% less energy, making it a great choice for both groups.
Using HotSync technology, the 9PX (5-11kVA) may be paralleled to generate twice the power of a unitary product at no additional expense.
Energy Star certified, the Eaton 9PX offers the best level of energy and cooling expense savings. 9PX can measure energy consumption down to the outlet group level. Monitor kWh numbers using the LCD or Eaton's Intelligent Power Software.
With an optional network card and Eaton's Intelligent Power Software Suite, which works with all major operating systems, the 9PX works well with leading virtualization environments and cloud orchestration platforms.
Specifications
Product specifications | Details |
---|---|
Special features |
|
Type | Power Module |
Topology | Online/Double-conversion |
Form factor | Rack/tower |
Rack size | 3U |
Construction type | Free standing model |
Color | Black/silver |
VA rating | 11 kVA |
Wattage | 10 kW |
Rack mounting kit | No |
Package contents |
|
Internal bypass | Yes |
Hot swap power | No |
Auto shutdown function | Yes |
Primary frequency - max | 70 Hz |
Primary frequency - min | 40 Hz |
Input connection | Hardwired/fixed connection |
Input nominal voltage | 230V default (200/208/220/230/240/250V) |
Nominal frequency | 50/60 Hz |
Input frequency range | 40-70 Hz |
Input power factor | >.99 |
Receptacle | Hardwired |
Number of outputs hardwired | 1 |
Output waveform | Sine wave |
Voltage | 230V |
Output nominal voltage | 230V default (200/208/220/230/240/250V) |
Feed type | 1 |
Voltage type | AC |
Battery management |
|
Battery replacement | No battery |
Extended battery capability | Yes |
Runtime at half load | 0 min |
Communication |
|
Expansion slots | One slot for optional communication card |
Ethernet interface | No |
Includes network card | No |
Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
User interface | Multilingual graphical LCD display |
Type of interface | Other |
Potential free switch contact | Yes |
Altitude | 3000 m |
BTU Rating | Online: 2047 |
Noise level | <50 dB at 1 meter |
Relative humidity | 0-95% non-condensing |
Temperature range | 0° to 40°C (32° to 104°F) |
Input voltage - max | 276 V |
Input voltage - min | 100 V |
Output voltage - max | 250 V |
Output voltage - min | 200 V |
Secondary frequency - max | 60 Hz |
Secondary frequency - min | 50 Hz |
Battery quantity | 0 |
Efficiency | 95 |
Efficiency (eco-mode) | 98 |
Input voltage range | 176-276 V (100-276 V with derating) |
Max number of battery packs | 12 (supercharger required for more than 6 EBM) |
Output frequency | 50/60 Hz |
Output power factor | 0.9 |
Output voltage range | 200/208/220/230/240/ |
Phase (input) | 1 |
Phase (output) | 1 |
Runtime at full load | 0 min |
Voltage distortion output (linear load) - max | 2 |
