Description

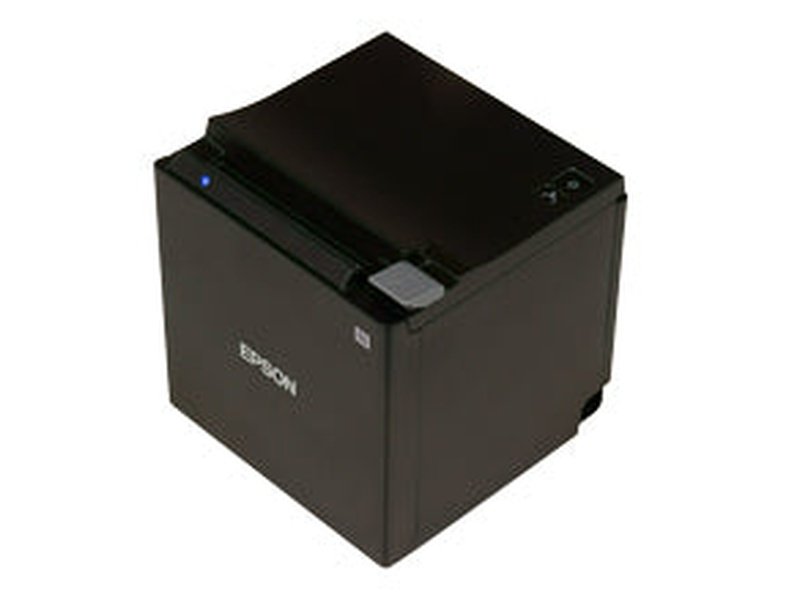

Epson TM-M50 Bluetooth Thermal Receipt Printer with USB Charging Port
SKU: C31CH94212
The Epson TM-M50 Bluetooth Thermal Receipt Printer with USB Charging Port has a 180dpi resolution & prints at 350mm/second. This printer has a triple interface which includes Bluetooth, Ethernet & USB.
CONNECTIVITY:
- Built-in USB, built-in Ethernet(10/100Base-T/TX)
- Bluetooth 3.0+EDR
- Wireless (by optional USB wireless dongle) OT-WL06 (802.11 a/b/g/n/ac,2.4 GHz/5 GHz)
- Printer Discovery NFC (Near Field Communication)
-
Simple AP (wireless network)
Color: Black
Platform Supported
- PC
- Android
- iOS
Package Contents
- TM-m50-212 Direct Thermal Printer
- Roll Paper
- AC Adaptor
- AC Cable
- Spacer for 58mm Paper
- Power Switch Cover
KEY FEATURES & BENEFITS
Sleek, compact and stylish design 3" thermal receipt printer supports traditional, cloud based and mPOS/tablet POS systems
- Connect to multiple devices – printer can be dynamically shared by legacy POS terminals, tablets and mobile devices, as well as cloud servers and POS peripherals
- Triple-interface connectivity to help future-proof growing businesses – maximum flexibility with built-in USB, Ethernet plus options for wireless technologies
- Online ordering ready – Server Direct Print technology enables the printer to retrieve data from the Internet1
- Fast, reliable receipt printing – speeds up to 350 mm/sec; printhead life of 200 km, auto cutter life of 2.2 million cuts
- Smart connectivity – share data using a single USB cable (cable not included); charge smartphones and tablets2 3
- USB-Network-Tethering – provides network connectivity from the printer to a tablet
Thermal Receipt Printers |
||
PRINTER | ||
PRINT METHOD | Direct thermal line printing | |
PRINT RESOLUTION | 180 dpi | |
PRINT FONTS / COLUMN CAPACITY | Font A: 12 x 24 42 cpl (default); Font B: 9 x 24 56 cpl, | |
Kanji Font A: 24 x 24 24 cpl; | ||
Kanji Font B: 16 x 16, 32 cpl (Korean) | ||
CHARACTER SIZE | Font A: 1.41 x 3.39 mm; | |
Font B: 0.99 x 3.39 mm; | ||
Kanji Font A: 3.39 x 3.39 mm; | ||
Kanji Font B: 2.26 x 2.26 mm | ||
CHARACTER SET | 95 Alphanumeric | |
18 International | ||
128x43 Graphic | ||
Japanese (11,233 characters of JIS X0213:2004, 1 special character) | ||
Simplified Chinese (28,553 characters of GB18030-2000) | ||
Traditional Chinese (13,535 characters of Big5) | ||
Korean (8,366 characters of KSC5601) | ||
PRINT SPEED | Max. 350mm/sec | |
CONNECTIVITY | Built-in USB, built-in Ethernet(10/100Base-T/TX) | |
– Bluetooth 3.0+EDR | ||
– Wireless (by optional USB wireless dongle) OT-WL06 (802.11 a/b/g/n/ac,2.4 GHz/5 GHz) | ||
– Printer Discovery NFC (Near Field Communication) | ||
– Simple AP (wireless network) | ||
PAPER SPECIFICATION |
||
DIMENSIONS | 80 mm: 79.5 ± 0.5 x 83 mm | |
3.13" ± 0.02" (width) x 3.27" (roll diameter) | ||
58 mm: 57.5 ± 0.5 x 83 mm | ||
2.26" ± 0.02" (width) x 3.27" (roll diameter) | ||
PAPER ROLL | Drop in | |
SENSORS | Full end sensor | |
POWER SPECIFICATION | ||
POWER CONSUMPTION | Approx. 16.7W (operating) | |
Approx. 0.41W (standby) | ||
POWER | 100 – 230V AC, 50 to 60 Hz | |
POWER SUPPLY | AC Adaptor C | |
RELIABILITY |
||
MTBF | 360,000 hours | |
MCBF | 70 million lines | |
AUTOCUTTER | 2.2 million cuts | |
PRINTER OPTIONS | ||
COLOUR | Epson Black, Epson Ultra White | |
EMI STANDARD | AS/NZS CISPR22 Class A, AS/NZS 4268 | |
OVERALL DIMENSIONS | 127mm (W) x 127mm (D) x 127mm (H) | |
WEIGHT | 1.3Kg | |
WHAT'S IN THE BOX | Printer, roll paper, AC adaptor, AC cable, spacer for 58mm paper, power switch cover | |
CONFIG BUILDS |
||
C31CH94211 | TM-m50-211 Built-in USB, Ethernet, BT iOS, USB charging, white | |
C31CH94212 | TM-m50-212 Built-in USB, Ethernet, BT iOS, USB charging, black | |
OPTIONS | ||
A61CF26101 | DM-D30-101 Customer display unit for TM-m30, white | |
A61CF26111 | DM-D30-111 Customer display unit for TM-m30, black | |
C32C881017 | Wall Hanging Bracket for TM-m50 | |
WARRANTY |
||
Standard warranty | 2-year return-to-base warranty | |
COVERPLUS |
||
1YWM50 | Coverplus 1yr Service Pack TM-m50 | |
2YWM50 | Coverplus 2yr Service Pack TM-m50 |
