Description

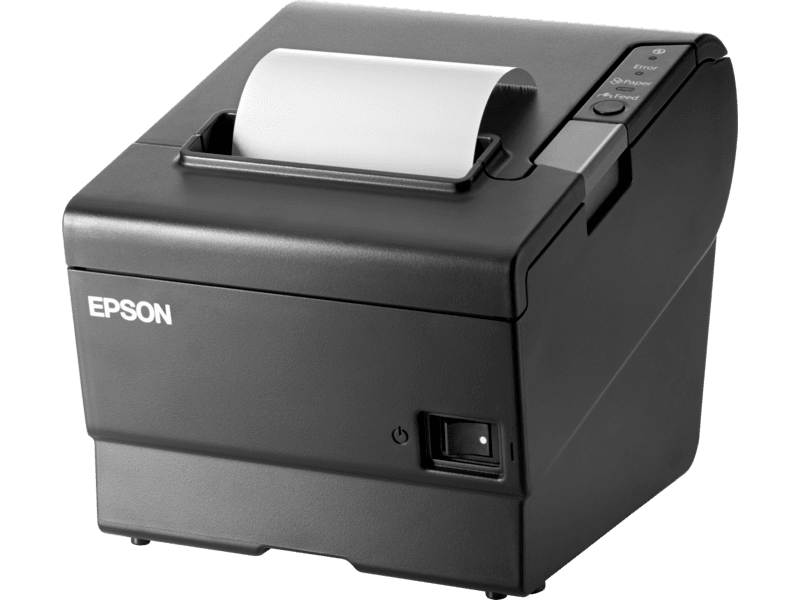

Epson TM-T88VI Serial Ethernet USB Printer comes with Epson PS180 AC Adapter (2HV25AA)
Compatibility | The Epson TM-T88VI PUSB Printer is compatible with the HP Point of Sale Systems. |
Compatible Operating Systems | Microsoft® Windows (APD, OPOS, OPOS for .NET, JavaPOS); Microsoft Windows 8.1 / iOS / Android (ePOS-Print SDK); Microsoft Windows 10; Mac® OS X®; Linux (CUPS, JavaPOS) |
Minimum dimensions (W x D x H) | 14.5 x 19.5 x 14.8 cm |
Weight | 1.6 kg |
What's in the box | TM-T88VI printer; Thermal roll paper; Roll paper guide; Screws; Setup guide; CD (drivers, utilities, and documentation) |
Manufacturer Warranty | Three (3) year limited warranty with advance exchange when purchased from HP. Additional HP Care Pack Services options are available to extend warranty coverage. |
The TM-T88VI is a state-of-the-art receipt printer, offering fast print speeds and high reliability, with advanced features to support the coexistence of traditional PC POS with the web and tablet POS services.
Ideal for retailers and hospitality businesses looking to tap into the benefits of web and tablet POS services while maintaining compatibility with existing applications, the TM-T88VI offers an ideal solution for customer-facing businesses of all sizes, and some of the most advanced features on the market.
State-of-the-art PC, tablet and web-based POS receipt printer
The TM-T88VI can print receipts directly from the web, tablets, smartphones and other mobile devices using XML commands, and offers internal storage for database and web content uploads. It coexists with traditional PC-based applications, and works on several platforms so it's simple to integrate with your existing network. All models come with Ethernet connectivity, with optional Bluetooth and Wi-Fi connectivity available.
Paper saving functionality
The TM-T88VI offers advanced paper-saving functions, allowing you to reduce wastage by up to 49% without affecting legibility. These optional features include white space removal, barcode and character height reduction. The TM-T88VI prints your logo on the next receipt before cutting the one before it, and has backward paper feeding, to ensure maximum paper usage.
Easy to integrate
The TM-T88VI offers a variety of tools for configuration, operation, installation support and development, as well as TM-Utility for easy set-up. SDKs are available for software developers to create native apps for Android, iOS and Windows devices or web applications.
Specifications
PRINTER |
|
MODEL NAME | TM-T88VI |
PRINTING TECHNOLOGY | Thermal line printing |
PRINT RESOLUTION | 180 dpi |
PRINT SPEED | 350 mm/sec (max), 300mm/sec (default) |
PRINT FONTS | Font A (default): 12 x 24 |
Font B: 9 x 17 | |
COLUMN CAPACITY | 80mm: 42/48/56 columns |
58mm model: 30/36/40 columns | |
CHARACTER SIZE (mm) | Font A (default): 12 x 24 |
Font B: 9 x 17 | |
CHARACTER SET | 95 Alphanumeric, 18 International, 128 x 43 Graphic (including user-defined page). |
Options for customization include Traditional/Simple Chinese, Thai, Japanese and Korean | |
BARCODE | UPC-A/E, Code 39/93/128, CODABAR PDF417, QR-CODE, MaxiCode, Data Matrix, Aztec Code, Composite Symbology, GS1-128, GS1 DataBar Omnidirectional /Truncated /Limited /Expanded |
MEDIA HANDLING |
|
THICKNESS | 48 – 80 µm |
MEDIA DIMENSIONS | 80mm: 79.5 ± 0.5 (W) x 83mm diameter (3.13" ± 0.02” x 3.27") |
58mm: 57.5 ± 0.5 (W) x 83mm diameter (2.26" ± 0.02” x 3.27") | |
STANDARD CONNECTIVITY | Built-in USB, Built-in Ethernet (10/100Base-T/TX) + UIB (Serial, Parallel, Powered USB) |
Bluetooth 2.1+EDR (dedicated model) | |
Wireless (USB wireless dongle): OT-WL05 (802.11 a/b/g/n) or OT-WL02 (802.11 b/g/n) | |
Beacon (using Bluetooth Low Energy): Beacon dongle (Epson-approved dongle: Laird model BT820) | |
PRINTER DISCOVERY | NFC (Near Field Communication), Simple AP (wireless network) |
COMMUNICATION PROTOCOLS | ESC/POS, ePOS-Print Service (Ethernet/Wireless), Server Direct Print (Ethernet/Wireless) |
PRINTING FROM A MOBILE DEVICE | WiFi (802.11): iOS, Android™ and Windows® operating systems Bluetooth: iOS, Android and Windows |
GENERAL |
|
OPERATING SYSTEMS | Microsoft® Windows (APD, OPOS, OPOS for .NET, JavaPOS) |
Mac OS X® | |
Linux (CUPS, JavaPOS) | |
Microsoft Windows 8.1 / iOS / Android (ePOS-Print SDK) | |
DIMENSIONS | 145 x 195 x 148mm (W x D x H) |
WEIGHT | 1.6kg |
SECURITY | Security: WEP, WPA-PSK, WPA2-PSK/EAP |
WPA2-EAP (Enterprise): EAP-TLS, PEAP/MSCHAPv2, PAEP/TLS | |
Port open/close setting | |
IP address filtering | |
SAFETY APPROVALS | RCM: AS/NZS CISPR 32 Class A |
CASE COLOR | Epson Black (EBCK), Epson White (ENN8.5) |
RELIABILITY |
|
MTBF | 360,000 hours |
MCBF | 70,000,000 lines |
THERMAL HEAD LIFE | 200km |
AUTO CUTTER LIFE | 3 million cuts |
WARRANTY | 48 months |
DATA BUFFER | |
RECEIVE | 45 bytes or 4KB, selectable |
USER-DEFINED | 12KB |
MACRO | 2KB |
NV GRAPHICS | 384KB |
NV USER | 1KB |
SOFTWARE INCLUDED | ePOS-Print (XML over HTTP): WEP / WPA / WPA2-Personal/Enterprise |
ePOS-Display Server Collaboration: Server Direct Print, Status notification | |
PHP/Sqlite3 Backup/Restore: TM Utlity (Win) | |
OPTIONS | Power supply cover |
PS-180 AC adapter | |
one wall hanging bracket | |
affixing tape and Connect-It interfaces | |
POWER |
|
POWER SUPPLY VOLTAGE | 24VDC ± 7% |
POWER CONSUMPTION | Operating: 27.6W |
Stand-by: 0.5W | |
POWER SOURCE | 24VDC ± 7% |
CONFIG BUILDS | |
C31CE94241 | TM-T88VI-241 Built-in Ethernet USB, Serial, dark grey |
C31CE94243 | TM-T88VI-243 Built-in Ethernet USB, Parallel, dark grey |
C31CE94581 | TM-T88VI-581 Built-in Ethernet USB, BT iOS, dark grey |
OPTIONS |
|
C32C890739 | Wireless LAN adapter 2.4GHz for TM-T88VI |
C32C845040 | Wall Hanging Bracket - use with TM-T88VI, TM-T88V, TM-T88IV, TM-T90, TM-L90, TM-U220 & TM-U230 |
C32C814596 | Power supply cover for TM-T88VI |
