Your center of productivity
Get more done with your unique hub for unstoppable productivity. Connect any device 3 with a single USB-C® cable for strong 100W power delivery. See your work elevated in smooth, crisp detail with 100 Hz refresh rate 4, while also experiencing vibrant, consistent colors with 100% sRGB 4 and HP Progressive White Balance 5.
Designed to work beautifully together
Transform your space into a seamless workplace. The 3-sided borderless with micro-edge bezel design lets you see more than ever. Daisy-chain 6 another HP Series 5 Pro monitor 7 for a perfect dual display setup with next-level productivity.
Take control of your comfort
Find a way to feel your best all day with 4-way adjustability optimized by the step-by-step Ergonomic Setup Guide 8 in HP Display Center 9. Keep your eyes comfortable with HP Eye Ease by reducing blue light without impacting color.

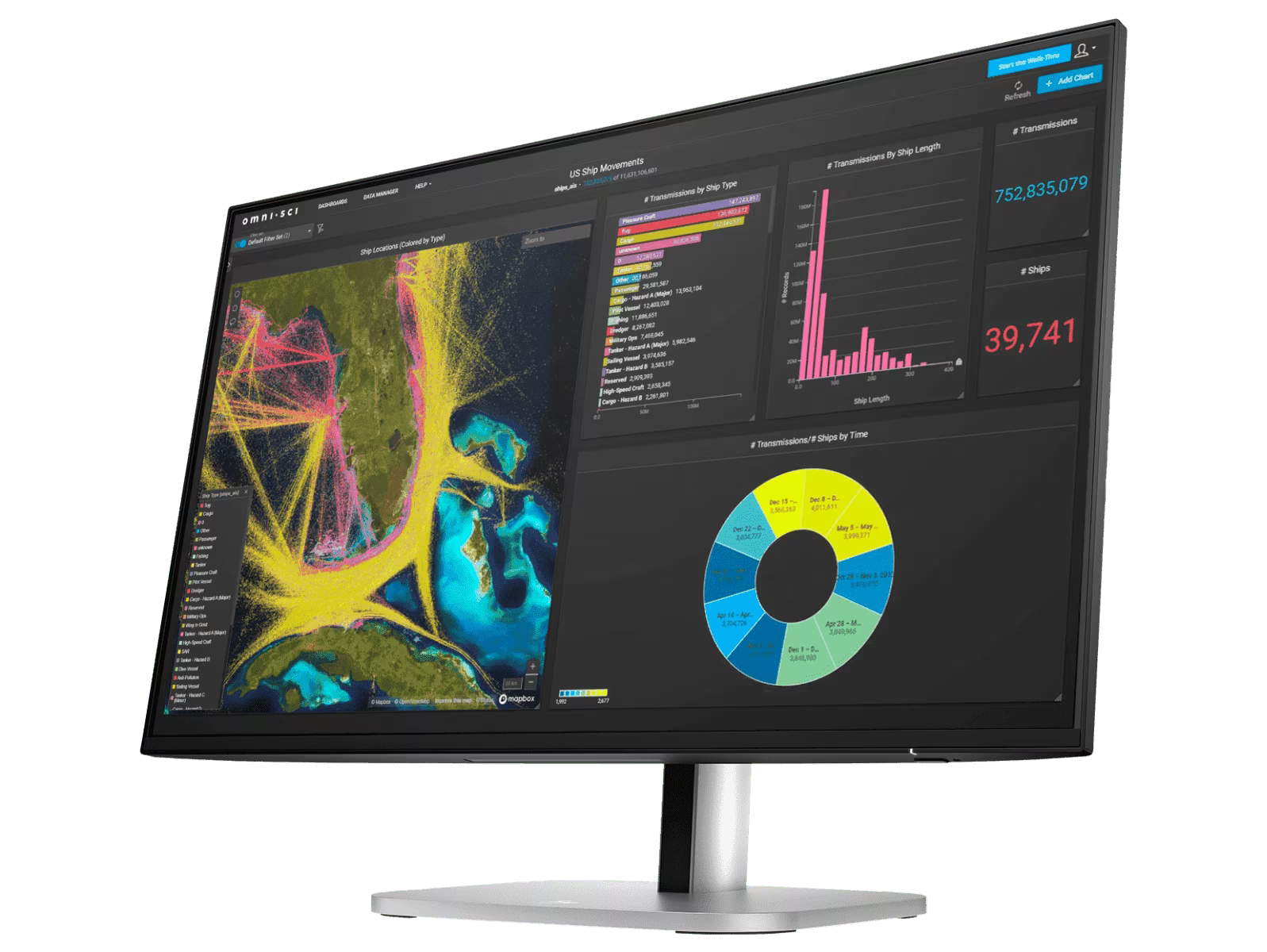

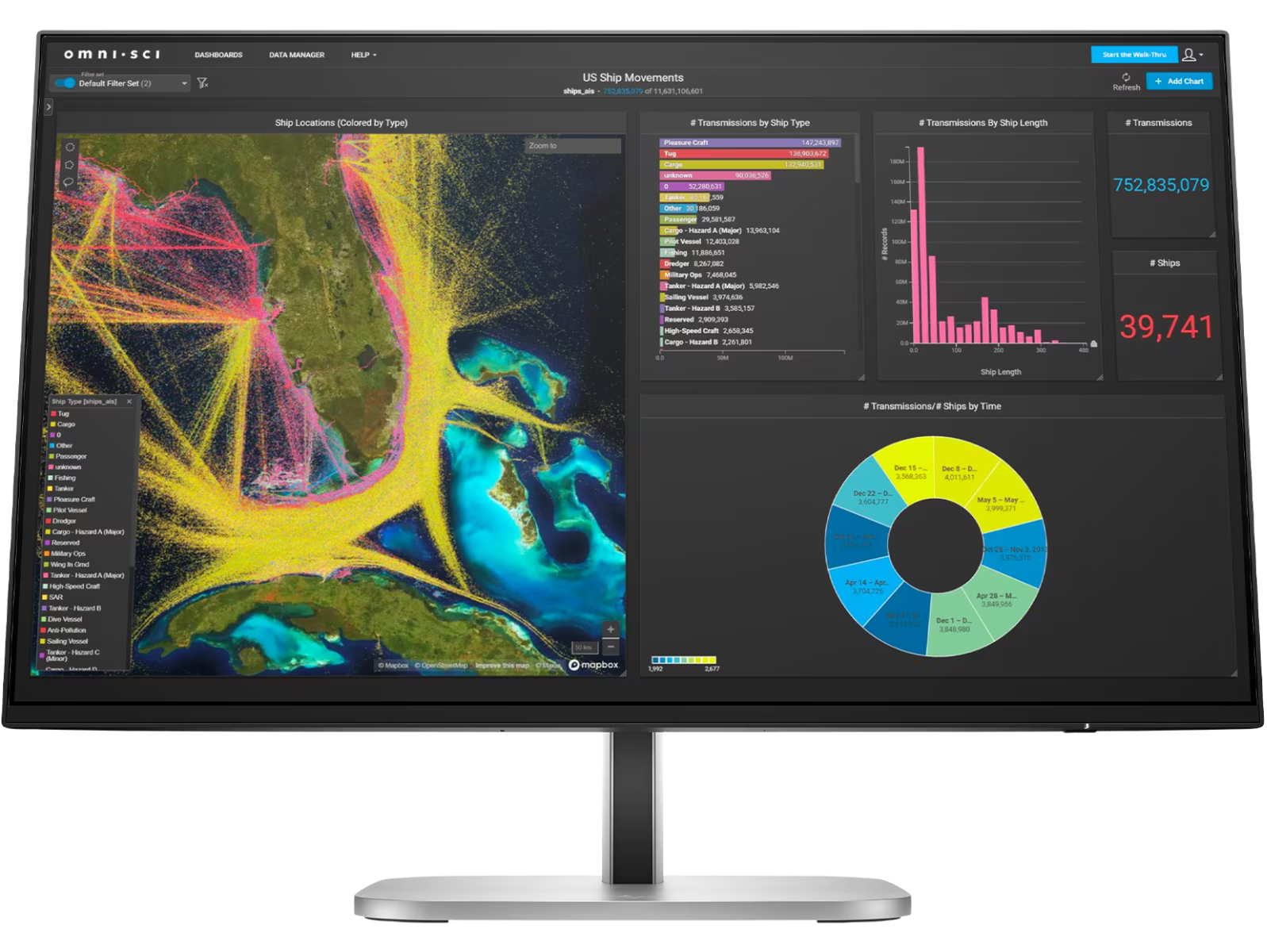

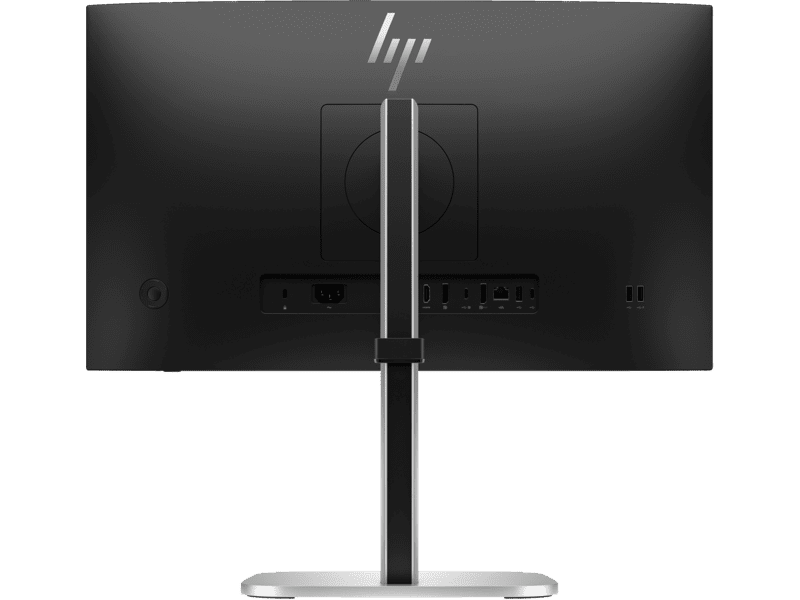

HP Series 5 Pro 23.8 inch FHD USB-C Monitor - 524pu (9D9V7AA)
Display size (diagonal) |
23.8" |
---|---|
Display size (diagonal) |
60.5 cm (23.8") |
Panel technology |
IPS; LCD 1 |
Display features |
Single Power ON; Anti-glare; Height Adjust/Tilt/Swivel/Pivot; HP Eye Ease; Daisy chain 2 |
Color gamut |
100% sRGB |
Onscreen controls |
Brightness+; Color; Image; Input; Power; Menu; Management; Information; Exit |
Native resolution |
FHD (1920 x 1080) 1 3 |
Resolutions supported |
640 x 480 @ 60 Hz; 640 x 480 @ 75 Hz; 720 x 400 @ 70 Hz; 800 x 600 @ 60 Hz; 800 x 600 @ 75 Hz; 1024 x 768 @ 60 Hz; 1280 x 720 @ 60 Hz; 1280 x 1024 @ 60 Hz; 1440 x 900 @ 60 Hz; 1600 x 900 @ 60 Hz; 1680 x 1050 @ 60 Hz; 1920 x 1080 @ 60 Hz; 1920 x 1080 @ 100 Hz; 1280 x 1024 @ 75 Hz; 1024 x 768 @ 75 Hz; 1280 x 800 @ 60 Hz; 1920 x 1080 @ 75 Hz |
Contrast ratio |
1500:1 1 |
Display contrast ratio (dynamic) |
10000000:1 |
Brightness |
350 nits 1 |
Pixel pitch |
0.28 x 0.28 mm 1 |
USB Type-A |
3 USB Type-A 5Gbps signaling rate (1 charging) |
USB Type-C® video input |
1 USB Type-C® 5Gbps signaling rate (Up to 100W USB Power Delivery, Alt Mode DisplayPort™ 1.4) |
USB Type-C® data |
1 USB Type-C® 5Gbps signaling rate (Up to 15W USB Power Delivery) |
Ethernet |
1 RJ-45 (10/100/1000 Mbps) |
DisplayPort™ |
1 DisplayPort™ 1.4 |
DisplayPort™ Out |
1 DisplayPort™ 1.4-out |
HDCP |
Yes, DisplayPort™, HDMI and USB Type-C® |
HDMI |
1 HDMI 2.0 |
VESA mounting |
100 x 100 mm |
Dimensions (W x D x H) |
53.94 x 4.72 x 31.43 cm (without stand) |
Dimensions With Stand (W x D x H) |
53.94 x 18.95 x 50.32 cm |
Package dimensions (W x D x H) |
62.1 x 14 x 39.3 cm |
Weight |
5.93 kg (with stand) |
Package weight |
8.42 kg |
Screen treatment |
Anti-glare |
swivel |
±45° |
Tilt |
-5 to +23° |
Horizontal viewing angle |
178° |
Vertical viewing angle |
178° |
Aspect ratio |
16:9 1 |
Backlight type |
Edge-lit; WLED |
Bezel |
3-sided micro-edge |
Curvature |
Flat |
Detachable stand |
Yes |
Display area (metric) |
52.70 x 29.65 cm |
Display area (imperial) |
20.75 x 11.67 in |
Height adjustment range |
150 mm |
Response time (typical) |
5ms GtG (with overdrive) |
Display scan frequency (horizontal) |
30-115 kHz |
Display scan frequency (vertical) |
50-100 Hz |
Flicker-free |
Yes |
Hardness |
3H |
Low blue light |
Yes, HP Eye Ease (TÜV Low Blue Light Hardware Solution certified) 1 |
Panel bit depth |
8 bit (6 bit + FRC) |
pivot |
±90° |
Pixels per inch (ppi) |
93 ppi |
Resolution (maximum) |
FHD (1920 x 1080 @ 100 Hz) |
Management Software |
HP Display Center; HP Client Management Script Library |
Physical security |
Security lock-ready 4 |
Power |
100 - 240 VAC 50/60 Hz |
Power supply type |
Internal |
Power consumption |
198 W (maximum), 22 W (typical), 0.5 W (standby) |
Operating humidity range |
20 to 80% RH (non-condensing) |
Non-Operating Humidity Range |
5 – 95% |
Operating temperature range |
5 to 35°C |
Operating temperature range |
41 to 95°F |
Sustainable impact specifications |
Low halogen; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 85% ITE-derived closed loop plastic; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; At least 40% recycled metal including 90% recycled aluminum in the stand 5 6 7 8 |
What's in the box |
Monitor; Warranty card; AC power cable; Quick Setup Poster; 1 USB Type-C® to Type-C cable 9 |
