Description

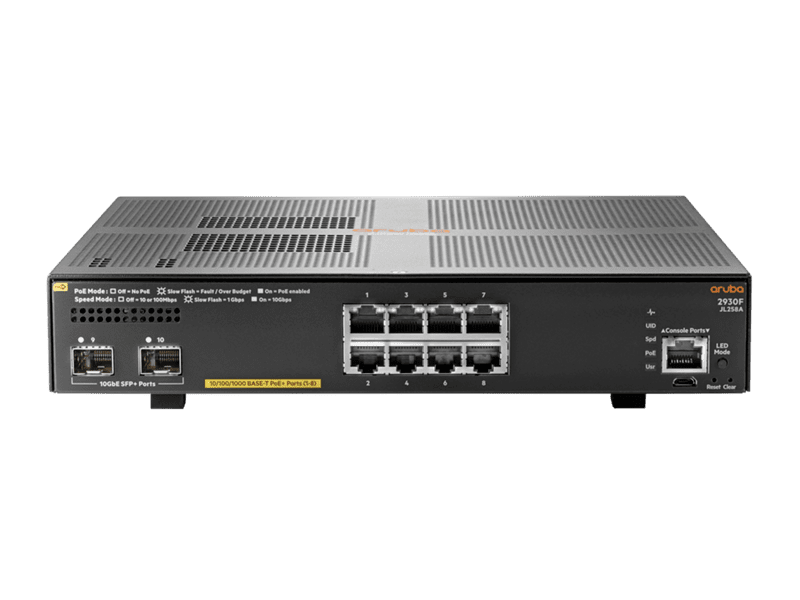

Aruba 2930F 8G PoE+ 2SFP+ Switch [JL258A]
The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
What's New
- Aruba Layer 3 switch series that is easy to deploy and manage with Aruba ClearPass Policy Manager and Aruba AirWave.
- Simplify with zero touch provisioning (ZTP) and cloud-based Aruba Central support.
- Scale with 8 chassis VSF stacking.
- Convenient built-in 1GbE or 10GbE uplinks and up to 740W PoE+.
Specifications
Differentiator
- Popular Aruba 10-port Gigabit access switch with PoE+ and 10G uplinks. This model has 8x 10/100/1000 PoE+ ports and 2x 10G/1G SFP+ transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 125 Watts.
Power Consumption
- 155 W (maximum)
Heat Dissipation
- 58.6 BTU/hr (61.8 kJ/hr)
Input Voltage
- 90 - 264 VAC, rated
Ports
- (8) RJ-45 autosensing 10/100/1000 PoE+ ports
- (2) SFP+ 1/10GbE ports
- PHY-less
Latency
- 1000 Mb Latency: < 3.8 µs
- 10 Gbps Latency: < 1.6 µs
Switching Capacity
- 56 Gbps
Throughput
- Up to 41.7 Mpps
Memory and Processor
- Dual Core ARM Cortex A9 @ 1016 MHz
- 1 GB DDR3 SDRAM
- Packet buffer size: 12.38 MB (4.5 MB Ingress / 7.785 MB Egress)
- 4 GB eMMC
PoE Capability
- 125 W PoE+
Management Features
- Aruba AirWave
- Central Network Management
- IMC - Intelligent Management Center
- Command-line interface
- Web browser
- Configuration menu
- SNMP manager
- Telnet
- RMON1
- FTP
- Out-of-band management (serial RS-232C or micro USB)
Warranty
- Limited Lifetime Warranty: See HPE Warranty Summary for warranty and support information included with your product purchase.
Weight
- 2 kg (4.41 lb)
Dimensions
- 4.39 x 25.4 x 25.4 cm (1.73 x 10 x 10 in)
