Description

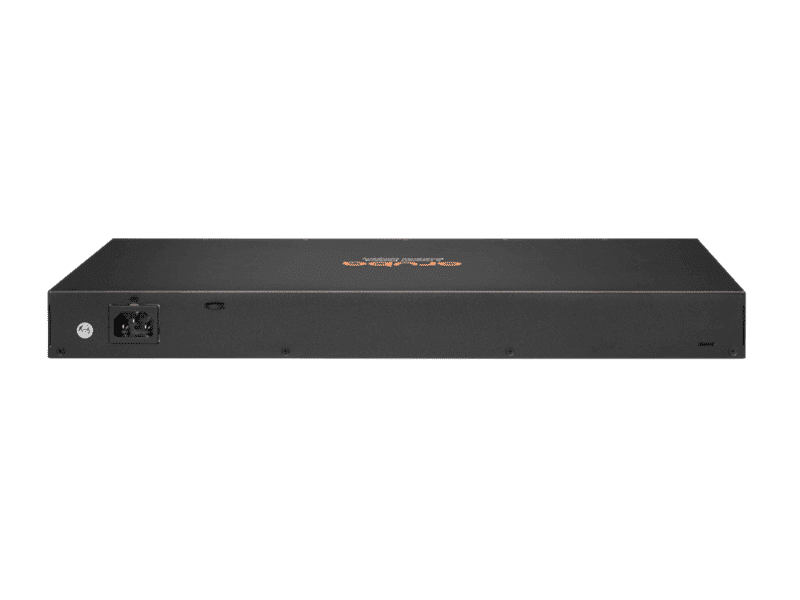

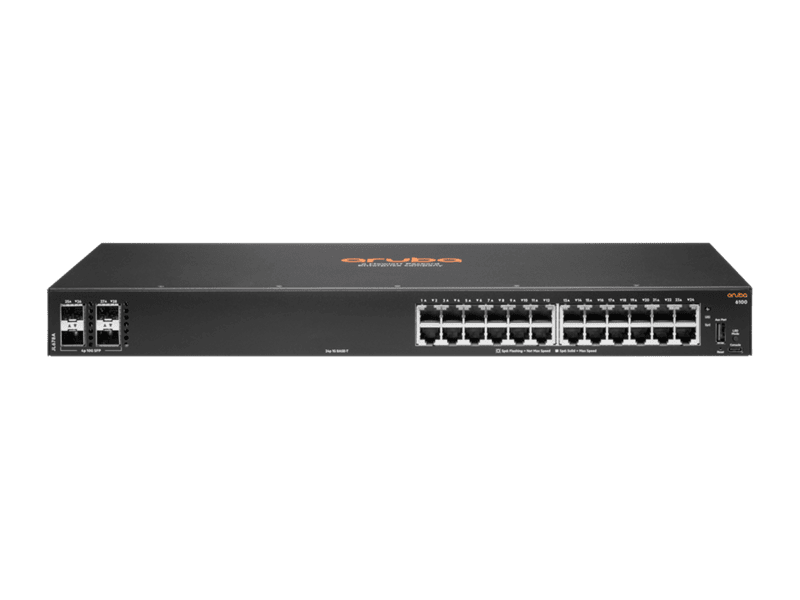

HPE Aruba Networking CX 6100 24G 4SFP+ Switch [JL678A]
The Aruba CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the Aruba CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.
Prepare your network for tomorrow’s unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the Aruba CX 6100 also simplifies ownership with no switch software licensing requirements.
What's New
- Simplify IT operations with next-gen Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
- Right size with 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.
- Silent deployment with compact and fanless 12 port PoE model.
- Flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
- Software defined ready with REST APIs.
- Layer 2 feature set with static routing and switch software embedded with no subscription required to enable.
Key Features
Entry Level Aruba CX Access Layer Switches
The Aruba CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
Using Aruba AOS-CX operating system across Aruba CX switching platforms and deployment domains provides a simpler, more consistent operator experience.
Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 370W of Class 4 PoE.
Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power
The Aruba CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
Deploy wireless access points and IoT devices with Aruba CX 6100 switch models that support up to 370W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.
Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.
Simplified Configuration and Management
The Aruba CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
Software-defined ready with REST APIs for fine-grained programmability of network tasks.
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
Specifications
Feature | Description |
---|---|
Differentiator | The Aruba CX 6100 Switch Series delivers entry-level, reliable, and convenient Layer 2 wired access connectivity ideal for branch offices, mid-market enterprises, and SMBs. This model has 24x 10/100/1000BASE-T and 4x 1G/10G SFP ports. |
Power Consumption | Max Power (w/o PoE): 33W |
Input Voltage | 100-127 VAC / 200-240 VAC |
Ports | 24x 10/100/1000BASE-T ports, 4x 1G/10G SFP ports |
Latency | 1 Gbps: 1.5 μSec, 10 Gbps: 1.8 μSec |
Switching Capacity | 128 Gbps |
Throughput | 95.2 Mpps |
Memory and Processor | Dual Core ARM Cortex A9 @ 1016 MHz, 4 GB DDR3, maximum, depending on model, 16 GB eMMC |
PoE Capability | 370W, maximum, depending on model |
Warranty | Limited Lifetime Warranty, see Aruba Product Warranties for warranty and support information included with your product purchase |
Weight | 2.6 kg (5.78 lbs) |
Dimensions | 4.4 x 44.2 x 20.1 cm (1.73 x 17.4 x 7.92 in) |
