Description
Overview

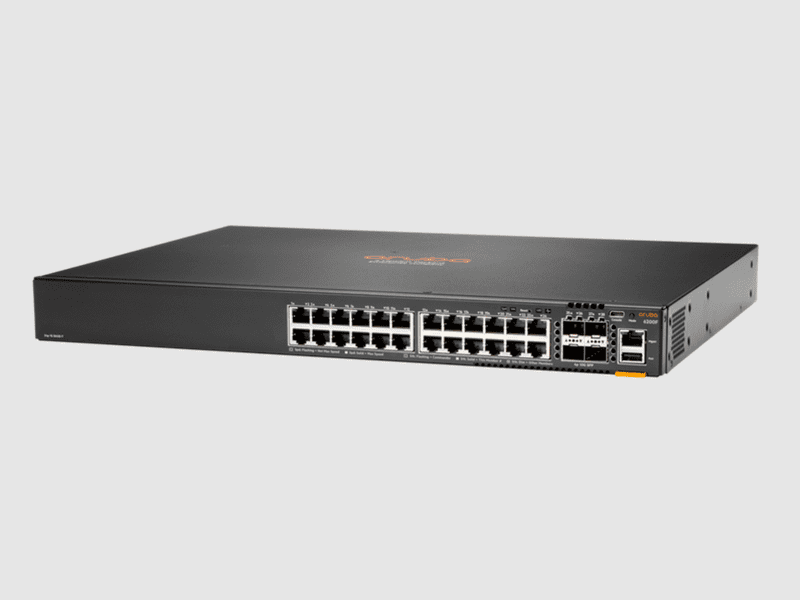

The Aruba CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy.
Make your network ready for tomorrow’s unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series has built-in high speed uplinks and up to 740W of PoE to support IoT devices such as security cameras and wireless APs.
Specifications
Product Differentiator (long)
Next-generation family of stackable access switches ideal for enterprise branch offices, campuses and SMB networks. 24x 10/100/1000BASE-T and 4x 1/10G SFP ports.
Power Consumption Description
59W at 230 VAC
Input Voltage
100V-120V/200V-240V
External I/O Ports
24x 10/100/1000BASE-T ports 4x 1/10G SFP ports
Latency
1 Gbps: 2.28 ?Sec 10 Gbps: 1.46 ?Sec
Routing/switching Capacity
128 Gbps
Stacking Capabilities
8 members
Throughput
Up to 95.2 Mpps
Memory and Processor
Quad Core ARM Cortex™ A72 @ 1.8 GHz
PoE Capability
No PoE
Weight (imperial)
9.61 lbs
Weight (metric)
4.36 kg
Product Dimensions (imperial)
1.73 x 17.4 x 12.9 in
Product Dimensions (metric)
4.39 x 44.2 cm x 32.7 cm
The Aruba CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy.
Make your network ready for tomorrow’s unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series has built-in high speed uplinks and up to 740W of PoE to support IoT devices such as security cameras and wireless APs.
Specifications
Product Differentiator (long)
Next-generation family of stackable access switches ideal for enterprise branch offices, campuses and SMB networks. 24x 10/100/1000BASE-T and 4x 1/10G SFP ports.
Power Consumption Description
59W at 230 VAC
Input Voltage
100V-120V/200V-240V
External I/O Ports
24x 10/100/1000BASE-T ports 4x 1/10G SFP ports
Latency
1 Gbps: 2.28 ?Sec 10 Gbps: 1.46 ?Sec
Routing/switching Capacity
128 Gbps
Stacking Capabilities
8 members
Throughput
Up to 95.2 Mpps
Memory and Processor
Quad Core ARM Cortex™ A72 @ 1.8 GHz
PoE Capability
No PoE
Weight (imperial)
9.61 lbs
Weight (metric)
4.36 kg
Product Dimensions (imperial)
1.73 x 17.4 x 12.9 in
Product Dimensions (metric)
4.39 x 44.2 cm x 32.7 cm
