Description

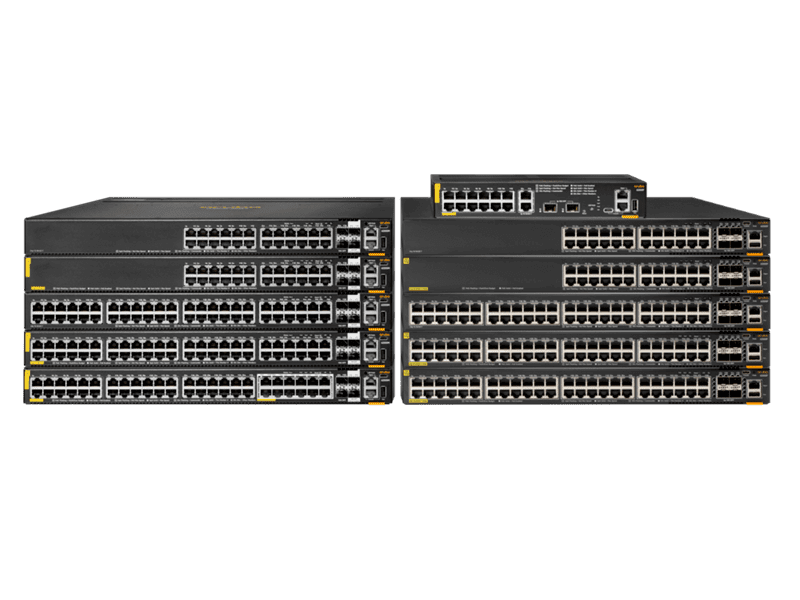

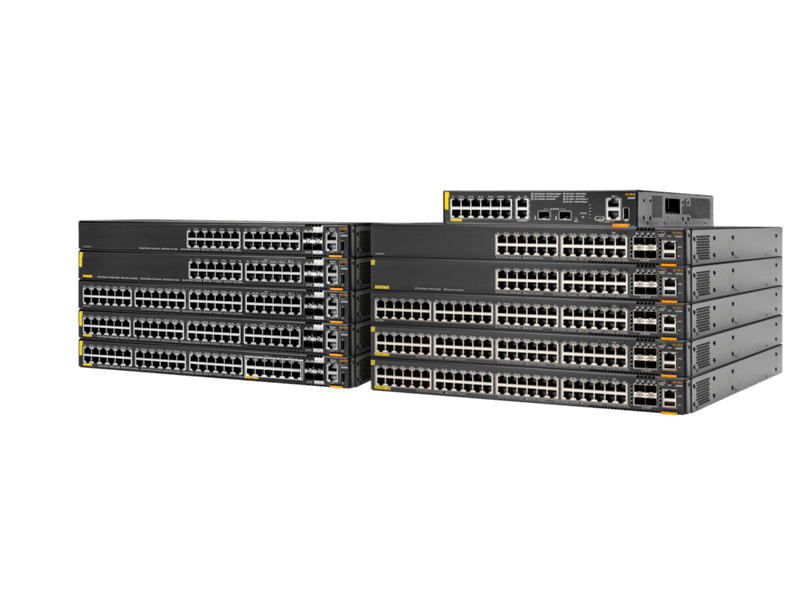

Built from the ground up with a combination of cuttingedge hardware, software and analytics and automation tools, the stackable CX 6200 switches are part of the Aruba CX switching portfolio. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the CX 6200 brings industry leading monitoring and troubleshooting capabilities to the access layer
A powerful Aruba Gen7 ASIC architecture delivers reliable performance and enterprise-class feature support with flexible programmability for tomorrow’s applications. The CX 6200 is designed for simple deployment using the intuitive Aruba CX Mobile App that speeds install, configuration and stacking of up to 8 switches. The CX 6200 has built-in high speed uplinks and up to 740W of PoE to support IoT devices such as security cameras and the latest wireless APs.
Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate
What's New
- Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
- Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.
- Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
- Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.
- Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.
- Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Specifications
CX6200 Series Specifications | |
---|---|

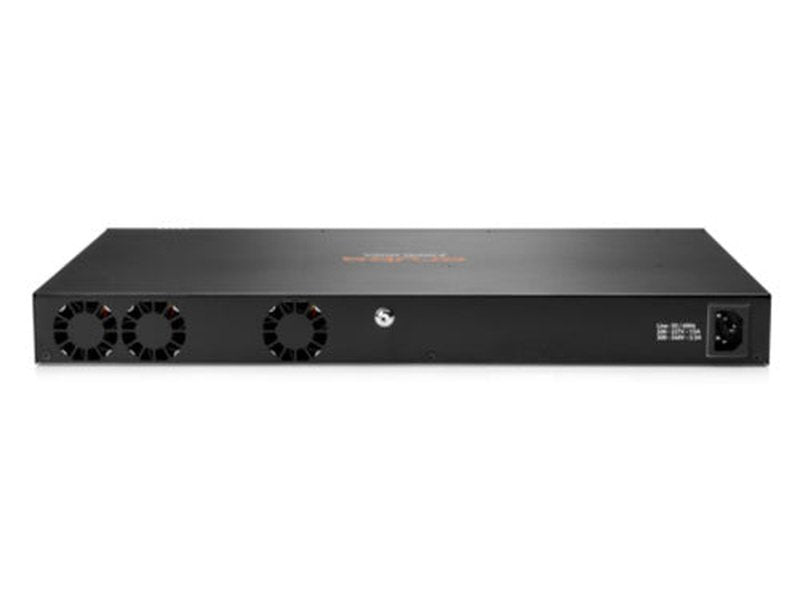

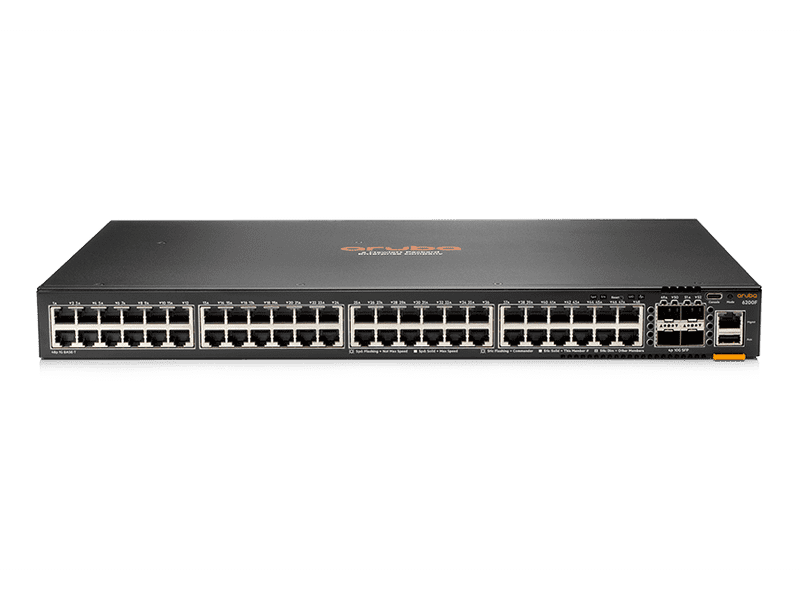

Aruba 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727A) |
|
Description |
48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port |
Power supplies |
Fixed power supply (500W) Up to 370W of Class 4 PoE Power |
Fans |
Fixed fans |
Physical characteristics |
|
Dimensions |
(H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73” x 17.4” x 12.9”) |
Configuration Weight |
5.05 kg (11.13 lbs) |
Additional Specifications |
|
CPU |
Quad Core ARM Cortex™ A72 @ 1.8 GHz |
Memory and Flash |
8 GB DDR4 16 GB eMMC |
Packet Buffer |
8 MB Packet Buffer Memory |
Performance |
|
Model Switching Capacity |
176 Gbps |
Model Throughput Capacity |
Up to 130.9Mpps |
Average Latency (LIFO-64-bytes packets) |
1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec |
Stack Size |
8 members |
Max. Stacking Distance |
Up to 10 kms with long range transceivers |
Switched Virtual Interfaces (dual stack) |
128 |
IPv4 Host Table (ARP) |
8,192 |
IPv6 Host Table (ND) |
8,192 |
IPv4 Unicast Routes |
2,048 |
IPv6 Unicast Routes |
1,024 |
MAC Table Capacity |
16,000 |
IGMP Groups |
1,024 |
MLD Groups |
1,024 |
IPv4/IPv6/MAC ACL Entries (ingress) |
5,120/1,280/5,120 |
IPv4/IPv6/MAC ACL Entries (egress) |
2,048/512/2,048 |
Environment |
|
Operating Temperature |
32°F to 113°F (0°C to 45°C) up to 5,000 ft derate -1°C for every 1,000 ft from 5,000 ft to 10,000 ft. |
Operating Relative Humidity |
15% to 95% @ 104°F (40°C) non‑condensing |
Non-Operating |
-40°F to 158°F (-40°C to 70°C) up to 15,000 ft |
Non-Operating Storage Relative Humidity |
15% to 90% @ 149°F (65°C) non‑condensing |
Max Operating Altitude |
10,000 feet (3.048 km) Max |
Max Non-Operating Altitude |
15,000 feet (4.6 km) Max |
Acoustic |
Sound Power, LWAd= 4.9 Bel Sound Pressure, LpAm(Bystander) = 32.7 dB |
Primary Airflow |
Front and side to back |
Electrical Characteristics |
|
Frequency |
50Hz/60Hz |
AC Voltage |
100V-120V/200V-240V |
Current |
7.5A/3.5A |
80plus.org Certification |
- |
Maximum heat dissipation BTU/hr and kJ/hr |
260 BTU/hr 274 kJ/hr |
Power Consumption (230 VAC) |
Hibernation (0 rpm fan): 10W Idle: 60W 100% Traffic Rate: 76W |
Safety |
|
Europe: EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013 EN 62368-1:2014 +A11:2017 US: UL 60950-1 2nd Ed. Canada: CAN/CSA-C22.2 No. 60950-1-07 Worldwide: IEC 60950-1:2005 w/all known National Deviations IEC 62368-1:2014 2nd Ed. Taiwan: CNS-14336-1 |
|
Emissions |
|
Europe: EN 55032:2015 +AC:2016, Class A EN 55024:2010 EN 55035:2017 EN 61000-3-2:2014 EN 61000-3-3:2013 US: FCC 47 CFR part 15B, Class A Canada: ICES-003 Class A Worldwide: VCCI Class A CISPR 32 Ed 2.0: 2015 + COR1: 2016, Class A CISPR 24:2010 CISPR 35:2016 |
|
Lasers |
|
EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) |
|
Immunity |
|
Generic |
CISPR 35 |
EN |
EN 55035:2017 |
ESD |
IEC 61000-4-2 |
Radiated |
IEC 61000-4-3 |
EFT/Burst |
IEC 61000-4-4 |
Surge |
IEC 61000-4-5 |
Conducted |
IEC 61000-4-6 |
Power frequency magnetic field |
IEC 61000-4-8 |
Voltage dips and interruptions |
IEC 61000-4-11 |
Harmonics |
IEC 61000-3-2, EN 61000-3-2 |
Flicker |
IEC 61000-3-3, EN 61000-3-3 |
Mounting and Enclosure |
|
Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included. |
