Description

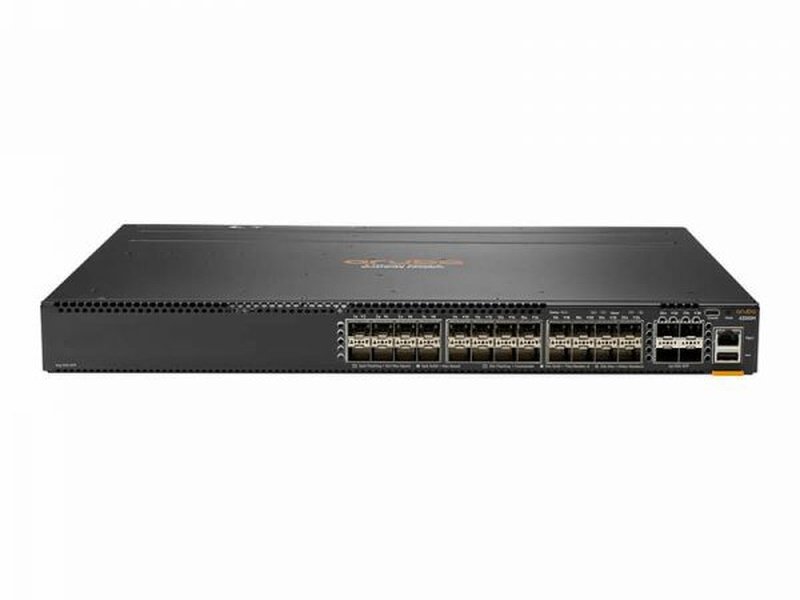

HPE Aruba Networking CX 6300M 24‑port SFP+ and 4‑port SFP56 Switch [JL658A]
The Aruba CX 6300 Switch Series is a modern, flexible, and intelligent family of AOS-CX stackable switches ideal for access, aggregation, and data center top-of-rack (TOR) deployments. With a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6300 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy.
A powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow’s unpredictable demands. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in highspeed uplinks and supports high density IEEE 802.3bt high power PoE with HPE Smart Rate multi-gigabit Ethernet for high speed APs and IoT devices.
Specifications
Feature | Description |
---|---|
Differentiator | Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch. Must select PSU Min1 / Max2 (250W JL085A, 250W JL757A) Mix OK. Includes Fantrays Min2 / Max 2 (JL669B). Min=0 / Max=24 SFP/SFP+ 100M/1/10G Transceivers. Min=0 / Max=4 SFP/SFP+/SFP28/SFP56 1/10/25/50G Transceivers. 1U - Height. |
Power Consumption | 85 W (maximum) |
Input Voltage | 100-240 VAC |
Ports | (24) 1G/10G SFP+ ports, (4) 1/10/25/50G SFP ports |
Latency |
1Gbps: 1.99μSec, 10Gbps: 1.49μSec, 25Gbps: 2.85μSec 50Gbps: 2.82μSec |
Switching Capacity | 880 Gbps |
Stacking Capabilities | Up to 10 switches per stack |
Throughput | 654 Mpps |
Memory and Processor | Quad Core ARM Cortex™ A72 @ 1.8GHz, 8 GBytes DDR4, 32 GBytes eMMC, 8 MB Shared Packet Buffer Memory |
Management Features |
HPE Aruba Networking AirWave HPE Aruba Networking Central Network Management HPE Aruba Networking NetEdit Command-line interface SNMP v2c/v3 RMON |
Warranty | See HPE Networking Warranty Summary for warranty and support information included with your product purchase. |
Weight | 5.11 kg (11.26 lbs) |
Dimensions | 4.4 x 44.2 x 38.5 cm (1.73 x 17.4 x 15.2 in) |
