Description

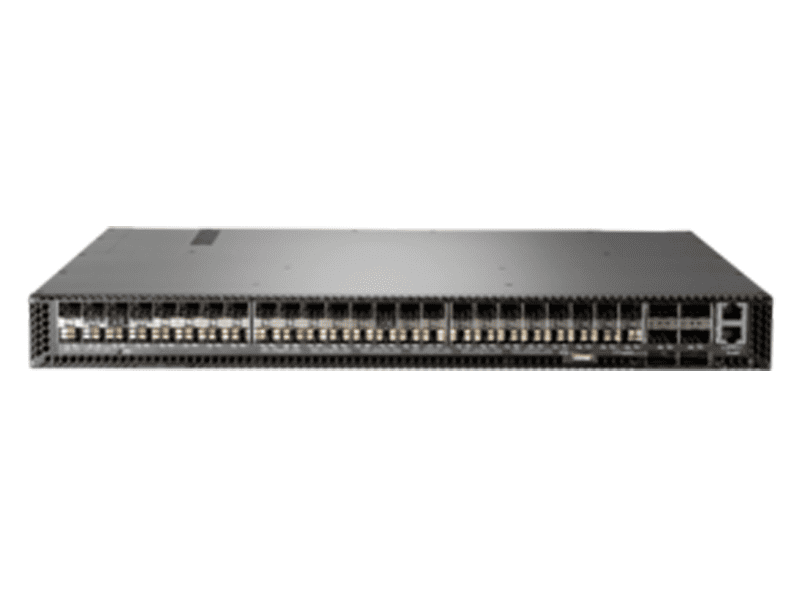

The HPE Altoline 6920 Switch Series is an x86-based
OCP certified, open-networking, disaggregated family of low-latency 10GbE data
center switches in a 1U form factor. Perfect for deployment in web-scale
environments as a 10GbE server access switch; optimized for data center hot/cold
aisle deployments with reversible airflow. Hardware support for VXLAN is ideal
for deployment in multi-tenancy and overlay environments. Take advantage of the
streamlined design and ONIE boot loader to deploy a choice of network operating
systems with the freedom to select the management and orchestration tools.
Features
OPEN AND DISAGGREGATED
NETWORKING FOR CHOICE
The HPE Altoline 6920 Switch Series is an OCP
certified, open-networking, disaggregated solution that offers customers choice
of hardware platforms and network operating systems (NOS).
Includes the Open Network
Install Environment (ONIE) loader for easy installation of the network operating
system.
You have a choice of network OS including Cumulus
Networks Linux NOS.
Offers a choice of management and orchestration tools
from growing ecosystem.
Intel x86 CPU subsystem provides ability to load
common 3rd party applications and utilities
WIRE SPEED OF 10GBE
AND 40GBE FOR SCALABILITY AND DEMANDING APPLICATIONS
The HPE Altoline 6920 Switch Series provides high
density of 48 x 10GbE and 6 x 40GbE fiber uplink ports for high-performance and
flexible deployments.
Supports up to 48 x 10GbE links for server scalability
with 6 x 40GbE uplinks.
With hardware VXLAN VTEP support the switch works well
for multi-tenancy and overlay technologies.
Provides the flexibility for
10GbE top-of-rack deployments.
HIGH-PERFORMANCE DATA
CENTER SWITCHING
The HPE Altoline 6920 Switch Series delivers 1.44 Tbps
switching capacity for the most demanding applications.
The switch supports up to 1
BPPS throughput for data intensive environments.
Ultra fast 40 Gbps Latency >
.6 µs for amazing response time
With up to 6 x 40GbE QSFP+
ports the switch has a solution for blazing fast uplinks.
The redundant power supplies
and fans combat temperature issues in hot/cold isles deployments.
SIMPLICITY AND LOWER
TCO
The HPE
Altoline 6920 Switch Series simplifies switch deployment, management and
orchestration with choice of tools from the robust Linux community and
ecosystem.
With streamlined hardware and multiple software
options the 6920 Switch gives you a better fit for your needs.
With Intel x86 CPU you have a
choice of common software tools for use in server and networking.
Provides economies of scale
that meet the needs of your web-scale data centers.
Technical Specifications
Differentiator
48 10GbE and 6 40GbE ports, x86 CPU, dual
hot-pluggable AC power supplies and power-to-ports fan trays. Ideally suited for
deployment at the spine and server access layer in large enterprise data
centers.
Ports
(48) SFP+ 1/10GbE ports
(6) QSFP+ 40GbE ports
Memory and processor
Intel Atom C2538 quad-core x86 processor @ 2.4 GHz
8 GB DDR3 SDRAM
Packet buffer size: 12 MB
16 GB SD Card
Latency
40 Gbps Latency: > 0.6 µs
Throughput
up to 1 Bpps
Routing/switching capacity
1440 Gbps
Management features
Command-line interface
Out-of-band management
SNMP manager
Telnet
FTP
Power supply name
2 x PSUs
Input voltage
90 - 264 VAC, rated (depending on power supply chosen)
Power consumption
315 W (maximum)
Minimum dimensions (W x D x H)
44 x 47 x 4.4 cm
Weight
8.4 kg
Warranty
3-year Warranty: See
www.hpe.com/networking/warrantysummary for warranty and support information
included with your product purchase.
Software releases: for details on the software
releases available with your product purchase
refer to www.hpe.com/networking/warrantysummary.
