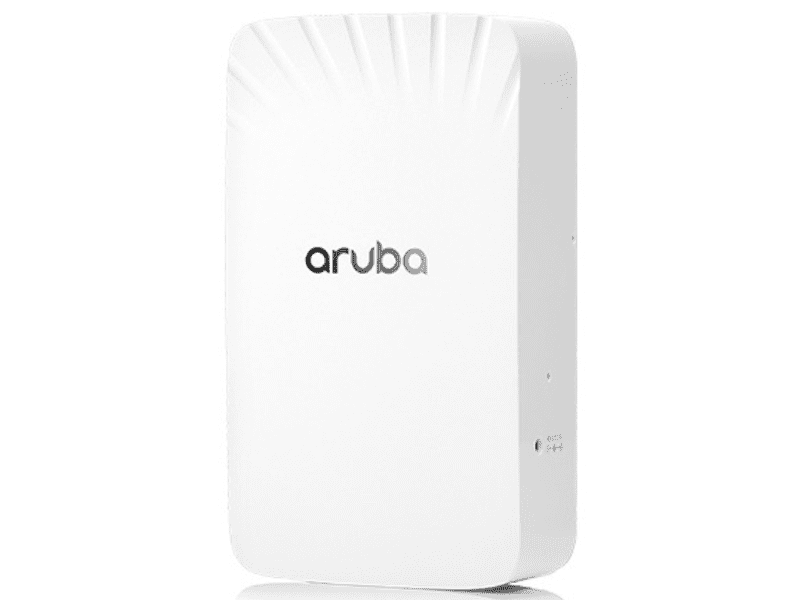

Aruba AP-503H (RW) Dual-radio 802.11ax 2x2 Unified Hospitality AP with 1+2 Ethernet
The Aruba 500H Series Hospitality Access Points provide high-performance wireless and wired connectivity for hospitality organizations experiencing growing numbers of mobile, IoT, and mobility requirements. Supporting the latest Wi-Fi 6 standard, the Aruba 500H Series can achieve a maximum aggregate data rate of up to 1.49 Gbps for venues such as hotels, university residence halls, and teleworkers. The Aruba 500H Series Hospitality APs are also designed to provide improved user experiences by integrating key Wi-Fi optimization technologies for increased Wi-Fi efficiency and optimized client airtime.
Wi-Fi 6 for high performance and efficiency.
Provides policy enforcement for wireless traffic through Dynamic Segmentation.
IoT-ready with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee®.
Supports up to 256 associated clients per radio.
Can be deployed as an Aruba Central-managed enterprise access point.
Introducing 2 bundles with the 503HR and 505HR models for US and EU.
Incredible Efficiency with Wi-Fi 6
- The Aruba 500H Series Hospitality Access Points support the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA), bi-directional Multi-User MIMO (MU-MIMO), and Target Wait Time (TWT).
- Patented RF optimization technologies like ClientMatch have also been enhanced with Wi-Fi 6 awareness to group Wi-Fi 6-capable client devices together for optimized network utilization.
- The Aruba 500H Series also supports Air Slice, a unique capability that enhances OFDMA with SLA-grade application assurance from the access point to the client device.
Infrastructure Designed with Flexibility in Mind
- The Aruba 500H Series Hospitality Access Points are purpose-built to deliver unified wired and wireless connectivity for the Aruba Edge Services Platform (Aruba ESP) and support flexible deployment options.
- The 500H Series can be installed on a wall for hotel or residence hall environments, or installed with a desk stand for remote connectivity. Up to 4 Ethernet ports provide local wired access.
- This product can be managed by Aruba Central, as well as with existing on-premises and local management options.
IoT Platform Capabilities
- The Aruba 500H Series Hospitality Access Points have the ability to support up to 256 associated clients per Wi-Fi radio – ideal for organizations deploying Wi-Fi connected IoT devices.
- Supports Bluetooth 5 and Zigbee® wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.
- Features improved client visibility with integrated device profiling, and the option for advanced insights when integrated with ClearPass Policy Manager or ClearPass Device Insight.
The Aruba 500H Series Hospitality Access Points provide high-performance wireless and wired connectivity for hospitality organizations experiencing growing numbers of mobile, IoT, and mobility requirements. Supporting the latest Wi-Fi 6 standard, the Aruba 500H Series can achieve a maximum aggregate data rate of up to 1.49 Gbps for venues such as hotels, university residence halls, and teleworkers. The Aruba 500H Series Hospitality APs are also designed to provide improved user experiences by integrating key Wi-Fi optimization technologies for increased Wi-Fi efficiency and optimized client airtime.
Wi-Fi 6 for high performance and efficiency.
Provides policy enforcement for wireless traffic through Dynamic Segmentation.
IoT-ready with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee®.
Supports up to 256 associated clients per radio.
Can be deployed as an Aruba Central-managed enterprise access point.
Introducing 2 bundles with the 503HR and 505HR models for US and EU.
Incredible Efficiency with Wi-Fi 6
- The Aruba 500H Series Hospitality Access Points support the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA), bi-directional Multi-User MIMO (MU-MIMO), and Target Wait Time (TWT).
- Patented RF optimization technologies like ClientMatch have also been enhanced with Wi-Fi 6 awareness to group Wi-Fi 6-capable client devices together for optimized network utilization.
- The Aruba 500H Series also supports Air Slice, a unique capability that enhances OFDMA with SLA-grade application assurance from the access point to the client device.
Infrastructure Designed with Flexibility in Mind
- The Aruba 500H Series Hospitality Access Points are purpose-built to deliver unified wired and wireless connectivity for the Aruba Edge Services Platform (Aruba ESP) and support flexible deployment options.
- The 500H Series can be installed on a wall for hotel or residence hall environments, or installed with a desk stand for remote connectivity. Up to 4 Ethernet ports provide local wired access.
- This product can be managed by Aruba Central, as well as with existing on-premises and local management options.
IoT Platform Capabilities
- The Aruba 500H Series Hospitality Access Points have the ability to support up to 256 associated clients per Wi-Fi radio – ideal for organizations deploying Wi-Fi connected IoT devices.
- Supports Bluetooth 5 and Zigbee® wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.
- Features improved client visibility with integrated device profiling, and the option for advanced insights when integrated with ClearPass Policy Manager or ClearPass Device Insight.
Specifications
Product Type Wireless Access Point
Product Model AP-503H
Product Name 500H Series Hospitality Access Point
Product Series 500H
Interfaces/Ports
- Ethernet Technology: Gigabit Ethernet
- USB
- RJ-45 Ports
- PoE (RJ-45) Port
TAA Compliant Yes
Form Factor Wall Mountable
Height 40 mm
Width 150 mm
Depth 86 mm
Power Consumption 10 W
Wireless Transmission Speed 1.45 Gbit/s
Frequency Band 5 GHz 2.40 GHz
Wireless LAN Standard 802.11ax
Bluetooth Standard Bluetooth 5
Encryption Standard WPA2 WPA3
Total Number of Antennas 2
Number of Internal Antennas 2
Data Encryption Yes
MIMO Technology Yes
