Description

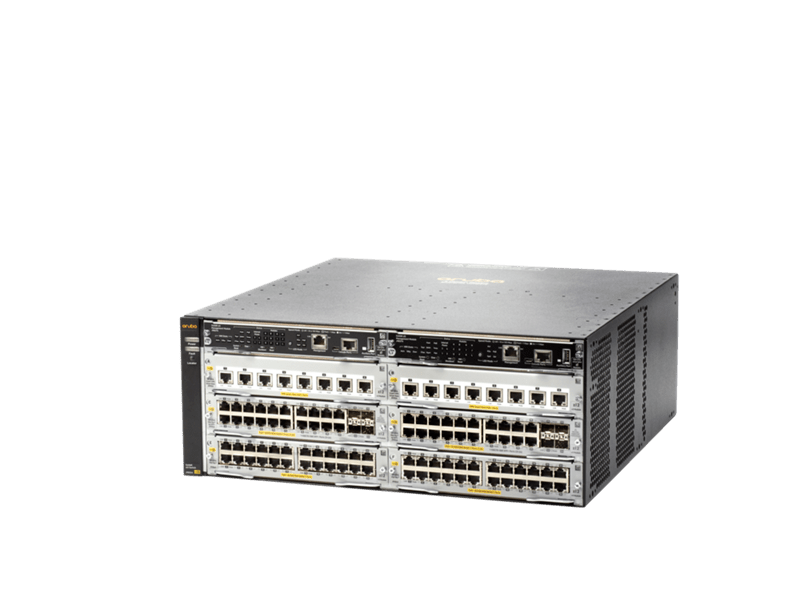

HPE Aruba Networking 5406R 16‑port SFP+ (No PSU) v3 zl2 Switch [JL095A]
Aruba 5406R v3 zl2 switch with 16 SFP+ ports and 4 open module slots (HPE Smart Rate compatible)
What's New
- Powerful HPE Aruba Layer 3 modular switch series with VSF stacking, low latency, resiliency and Dynamic Segmentation for a better mobile-first campus experience.
- HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking AirWave and HPE Aruba Networking Central support.
- HPE Smart Rate for high speed multi gigabit bandwidth and PoE+ power.
- Scalable line rate 40GbE for wireless traffic aggregation.
- Fast Software Upgrade for 5400R zI2 series VSF stack minimizes downtime.
- Ready for the software defined network with REST APIs and OpenFlow support.
Specifications
Feature | Description |
---|---|
Differentiator | Ultra-flexible 6-slot campus access solution "starter kit" with 8x 10G SFP+ ports. Perfect for aggregating 10G. This configuration is a 6-slot "starter kit" with a 6-slot 5400R chassis, two (2) J9993A 8-port 1G/10GbE SFP+ MACsec v3 modules, one (1) J9827A management module, and one (1) J9832A fan tray (power supplies sold separately). Totals are 16x 10 Gigabit ports. |
Heat Dissipation | 2450 BTU/hr (2584.75 kJ/hr) |
Input Voltage | 110 - 127 / 200 - 240 VAC, rated |
Ports |
(16) open 10GbE SFP+ transceiver slots (4) open module slots Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination |
Latency | 1000 Mb Latency: < 2.8 µs; 10 Gbps Latency: < 1.8 µs; 40 Gbps Latency: < 1.5 µs |
Routing/Switching Capacity | 960 Gbps |
Switch Fabric Speed | 1015 Gbps |
Throughput | Up to 571.4 Mpps |
Memory and Processor | Freescale P2020 dual core @ 1.2 GHz; 16 MB flash; 1 GB SD Card; 4 GB DDR3 SODIMM |
Management Features | HPE Aruba Networking AirWave Network Management; HPE Aruba Networking Central; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); SNMP manager; Out-of-band management (serial RS-232C or micro USB) |
Warranty | Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.; Software releases: for details on the software releases available with your product purchase; refer to www.hpe.com/networking/warrantysummary. |
Detailed Product Description | Aruba 5406R v3 zl2 switch with 16 SFP+ ports and 4 open module slots (HPE Smart Rate compatible) |
Weight | 12.75 kg (28.11 lb) |
Dimensions | 44.45 x 45.09 x 17.53 cm (17.5 x 17.75 x 6.9 in) |
