HPE JG510A Aruba FlexFabric 5900AF 48-Port Non-PoE Manageable Gigabit Switch w/ 4x10G SFP+, 2x40G QSFP+

HPE ArubaSKU: JG510A

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$11,100.00
Contact Us for ETA

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Overview

The HP 5900 Switch Series is a family of high-density, ultra-low-latency, top-of-rack (ToR) switches that is part of the HP FlexNetwork architecture's HP FlexFabric solution. Ideally suited for deployment at the server access layer of large enterprise data centers, the HP 5900 Switch Series is also powerful enough for deployment at the data center core layer of medium-sized enterprises.

With the increase in virtualized applications and server-to-server traffic, customers now require ToR switch innovations that will meet their needs for higher-performance server connectivity, convergence of Ethernet and storage traffic, the capability to handle virtual environments, and ultra-low-latency all in a single device.

Quality of Service (QoS)

Powerful QoS features: Flexible classification: creates traffic classes based on access control lists (ACLs), IEEE 802.1p precedence, IP, and DSCP or Type of Service (ToS) precedence; supports filter, redirect, mirror, remark, and logging. Feature support: provides support for Strict Priority Queuing (SP), Weighted Fair Queuing (WFQ), Weighted Deficit Round Robin (WDRR), SP+WDRR together, configurable buffers, Explicit Congestion Notification (ECN), and Weighted Random Early Detection (WRED).

Data center optimized

Flexible high port density: the HP 5900 Switch Series enables scaling of the server edge with 1 GbE and 10GbE ToR deployments to new heights with high-density 48-port solutions delivered in a 1RU design; the high server port density is backed by 40 GbE QSFP+ uplinks to deliver the availability of needed bandwidth for demanding applications; each 40 GbE QSFP+ port can also be configured as four 10GbE ports by using a 40-GbE-to-10GbE splitter cable
High-performance switching: cut-through and nonblocking architecture delivers low latency (~1 microsecond for 10GbE) for very demanding enterprise applications; the switch delivers high-performance switching capacity and wire-speed packet forwarding
Higher scalability: HP Intelligent Resilient Framework (IRF) technology simplifies the architecture of server access networks; up to nine HP 5900 switches can be combined to deliver unmatched scalability of virtualized access layer switches and flatter two-tier networks using IRF, which reduces cost and complexity
Advanced modular operating system: Comware v7 software's modular design and multiple processes bring native high stability, independent process monitoring, and restart; the OS also allows individual software modules to be upgraded for higher availability and supports enhanced serviceability functions like hitless software upgrades with single-chassis ISSU
TRILL and EVB/VEPA: TRansparent Interconnection of Lots of Links (TRILL) is supported to increase the scale of enterprise data centers; Edge Virtual Bridging with Virtual Ethernet Port Aggregator (EVB/VEPA) provides connectivity into the virtual environment for a data center-ready environment

Manageability

Full-featured console: provides complete control of the switch with a familiar CLI
Troubleshooting: Ingress and egress port monitoring: enable network problem solving. Traceroute and ping: enable testing of network connectivity.
Multiple configuration files: allow multiple configuration files to be stored to a flash image
sFlow (RFC 3176): provides wire-speed traffic accounting and monitoring
SNMP v1, v2c and v3: facilitate centralized discovery, monitoring, and secure management of networking devices

Resiliency and high availability

HP Intelligent Resilient Framework (IRF) technology: enables an HP FlexFabric to deliver resilient, scalable, and secured data center networks for physical and virtualized environments; groups up to nine HP 5900 switches in an IRF configuration, allowing them to be configured and managed as a single switch with a single IP address; simplifies ToR deployment and management, reducing data center deployment and operating expenses
IEEE 802.1w Rapid Convergence Spanning Tree Protocol: increases network uptime through faster recovery from failed links
IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees
Virtual Router Redundancy Protocol (VRRP): allows groups of two routers to dynamically back each other up to create highly available routed environments
Hitless patch upgrades: allows patches and new service features to be installed without restarting the equipment, increasing network uptime and facilitating maintenance

Ports

48 autosensing 10/100/1000 ports
4 fixed 1000/10000 SFP+ ports
2 QSFP+ 40-GbE ports
Included

Memory and processor

512 MB flash; packet buffer size: 9 MB; 2 GB SDRAM

Latency

10 Gb/s Latency: < 1.5 µs

Throughput

250 million pps
Routing/switching capacity
336 Gb/s

Management features

IMC - Intelligent Management Center
command-line interface
out-of-band management
SNMP Manager
Telnet
FTP

Minimum dimensions (W x D x H)
43.99 x 46.0 x 4.37 cm

Weight
13 kg

Differentiator

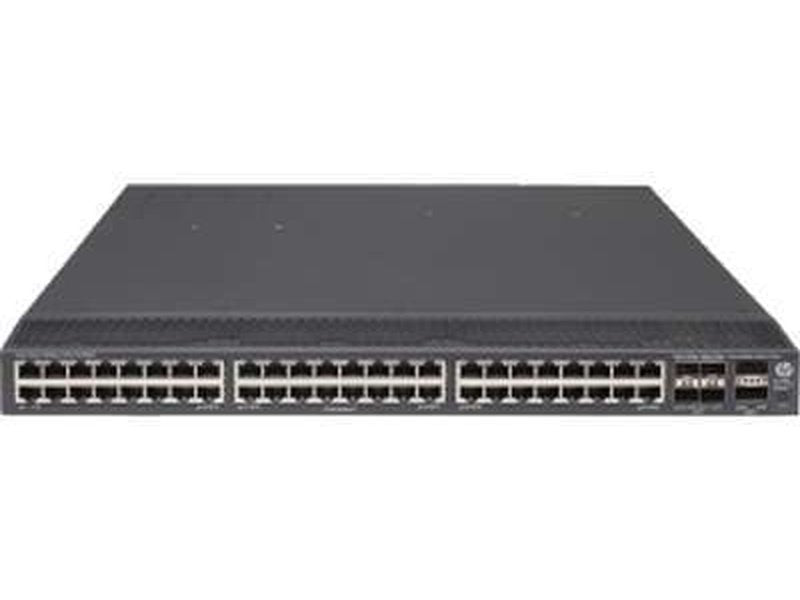

The HP 5900AF-48G-4XG-2QSFP+ Switch has 48 10/100/1000, 4 1G/10G SFP+ and 2 QSFP+ ports, dual hot-pluggable power supplies and fan trays, and ultra-low-latency. Ideally suited for deployment at the server access layer in large enterprise data centers

What's in the box
(1) HP 5900AF-48G-4XG-2QSFP+ Switch

Warranty

1 year, advance replacement, 10 calendar day, phone support, software releases
