HPE R8R48A Aruba Instant On 1430 16-Port PoE+ 124W Unmanaged Gigabit Switch

HPE ArubaSKU: R8R48A

Availability:

✅ In Stock at PC LAN Store

Price:
Sale price$465.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store or have access to your credit card details.
Enjoy 0% surcharge on credit card payments.

Description

HPE Networking Instant On Switch 16p Gigabit CL4 PoE 124W 1430 [R8R48A]



What's New

  • Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
  • No configuration or management needed.
  • Plug-and-play with fully automated functions and zero ongoing maintenance.
  • Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
  • Fan-less design for silent deployment in office spaces.



Key Features

Unmanaged Ethernet Connectivity for Small Businesses

The Aruba Instant On 1430 Switch Series is an unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in seven models in PoE and non-PoE configurations: one (1) 5-port, two (2) 8-port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models.

With PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices.

Two dedicated 1G SFP fiber ports on the 26-port model can be used for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports.

Aruba Instant On Limited Lifetime support provides 24x7 phone support for the first 90 days and chat support for the entire warranty period. Community support is included for the life of the product.



Plug-and-Play Operation

The Aruba Instant On 1430 Switch Series models are easy to use with zero configuration and no required ongoing administration.

The unmanaged PoE models delivers fully automated support for powering compatible IP phones, video surveillance cameras, or wireless access points.

No configuration beyond installation of optional 1GbE SFP transceivers on 26-port model to extend connectivity with gigabit fiber.

Install flexibility with support for table-top, under-table, wall-mount, and rack-mount options (varies per model).

Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X.



Energy Efficiency and Traffic Optimization

The Aruba Instant On 1430 Switch Series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity.

All models are fan-less for silent operation in office settings or acoustically sensitive environments and require less power to operate.

Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification.

Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers.

Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.



Specifications

Feature Description
Differentiator Affordable, plug-and-play, unmanaged series for small businesses looking for simple reliable, and low-cost network connectivity.
Offers Layer 2 Ethernet switching capabilities to connect printers and access points without complicated network configuration.
Fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models available.
Power Consumption Maximum: 147W, Idle: 5W
Input Voltage 100-127VAC / 200-240VAC, depending on model
Ports 16 RJ-45 10/100/1000 Class 4 PoE ports
Switching Capacity 32 Gbps
Throughput 23.80 Mpps
Memory and Processor 128Kb EEPROM; Packet buffer size: 2.0 Mb
Power Supply Name External Power Adapter
PoE Capability 124W Class 4 PoE
Operating Temperature 0°C to 40°C, 32°F to 104°F
Management Features Unmanaged
Warranty Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.

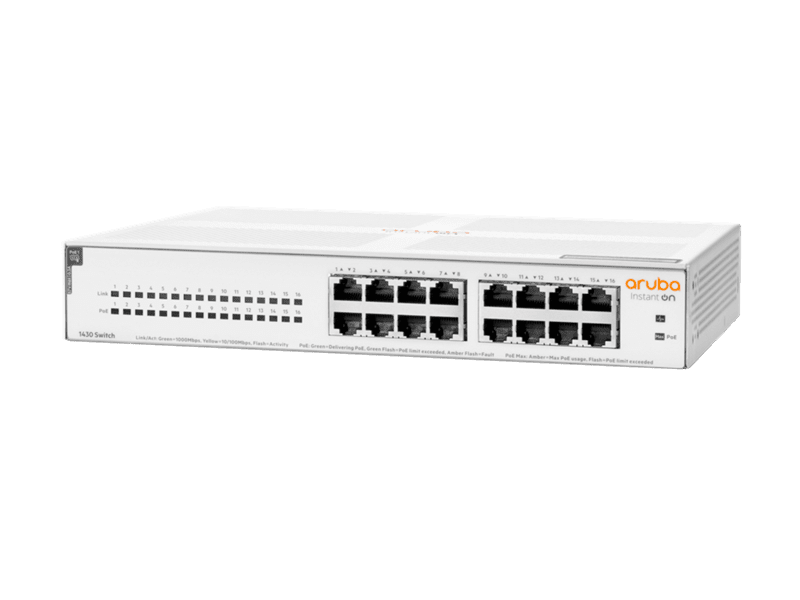

Detailed Product Description 16 RJ-45 autosensing Class4 PoE 10/100/1000 ports; 1U - Height
Weight 2.09 kg (4.60 lb)
Dimensions 26.0 x 27.5 x 4.4 cm (10.24 x 10.83 x 1.73 in)
