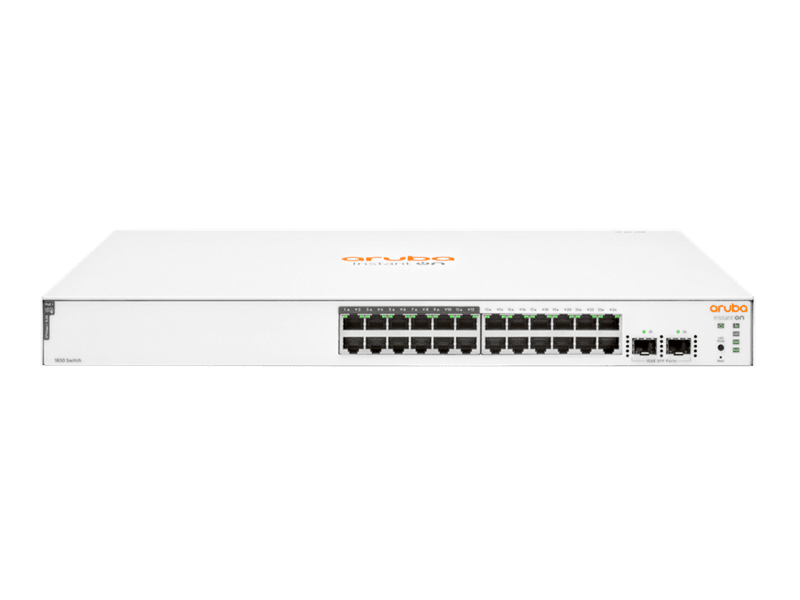

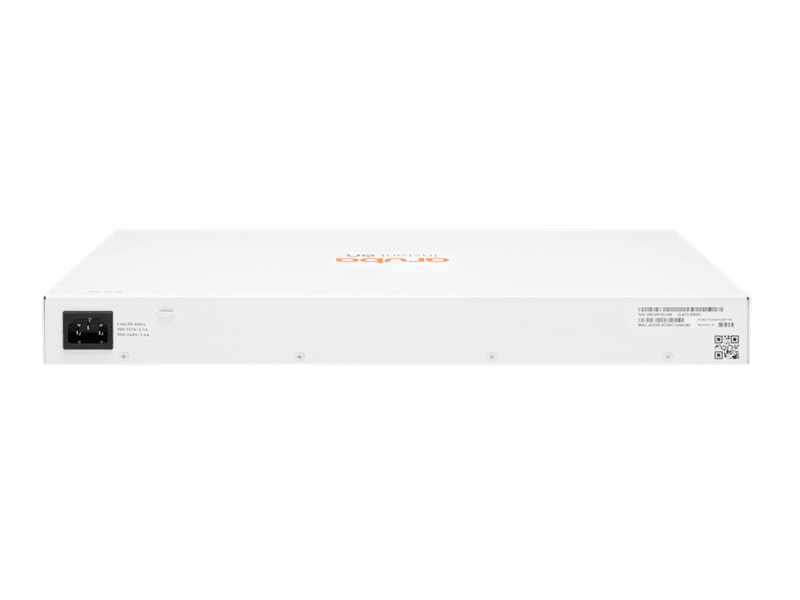

HPE JL813A Aruba Instant On 1830 24-Port (12 Port PoE) 195W Manageable Gigabit Switch w/ 2SFP

HPE ArubaSKU: JL813A

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$544.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store or have access to your credit card details.
Enjoy 0% surcharge on credit card payments.

Description

HPE Networking Instant On Switch 24p (12P CLASS4 POE) Gigabit CL4 PoE 2p SFP 195W 1830 [JL813A]

Ports:

  • 24 RJ-45 10/100/1000 (12 Class 4 PoE ports 195W)
  • 2 SFP 1GbE ports



Aruba Instant On 1830 Switch Series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications.
This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands. These entry-level, smart-managed switches offer Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.


What's New
  • Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models.
  • Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments.
  • Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
  • Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
  • Option to manage your switches through local web GUI.
  • Cost-effective PoE Support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments.



Key Features

Gigabit Connectivity for Small Businesses

Aruba Instant On 1830 Switch Series is a smart-managed Layer 2 Ethernet switch series ready to deploy in six models comprising of 8-, 24-, 48-port for non-PoE and Classs 4 PoE models.

Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.

With PoE models, you get up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port, 24-port and 48-port PoE models come with the power budget of 65W, 195W, and 370W respectively to support latest IoT devices.

8-port non-PoE switch can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.



Simplify Network Deployment and Management

The Aruba Instant On 1830 Switch Series features easy-to-use, out-of-the-box, plug-and-play deployment.

The switches can be deployed using two management modes - Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

Class 4 PoE options allow power to devices like IP phones, surveillance cameras, and access points without the cost of additional cabling.



Keep Your Business Protected with Integrated Security Features

The Aruba Instant On 1830 Switch Series is enhanced with security features such as VLANs, automatic Denial-of-service protection, Global Storm Control, and TPM (Trusted Platform module) based security to guard your network from unwanted or unauthorized access.

Global Storm Control Protects against conditions where incoming packets flood the LAN, causing network performance degradation for unicast traffic with an unknown destination, and for broadcast and multicast traffic.

Includes a Trusted Platform Module (TPM) for protected hardware-based generation and storage of cryptographic keys used for connection to the Aruba Instant On cloud portal.



Better Energy Efficient Features for Reducing Environmental Footprint

The Aruba Instant On 1830 Switch Series has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity.

Energy-efficient cooling includes variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption.

Features compact and fan-less 8-port and 24-port non-PoE models for acoustically-sensitive environments.

PoE Scheduling allows users to configure a specific day/time of the week (e.g. business hours) for Instant On switches to supply power to connected devices (e.g. surveillance cameras, access points, etc.).


Specifications

Feature Description
Differentiator Entry-level, smart-managed, Gigabit Layer 2 switches. Designed for small businesses with evolving networking demands.
Easy-to-deploy, secure, and affordable solution. Setup, monitor, and manage through Instant On mobile app, cloud-based web portal, or local web GUI.
Power Consumption Maximum: 100-127V: 244.6W, 200-220V: 237.2W; Idle: 100-127V: 14.5W, 200-220V: 13.4W
Input Voltage 100 - 240 VAC
Ports 24 RJ-45 10/100/1000 Class 4 PoE ports, 2 SFP 1GbE ports
Switching Capacity 52 Gbps
Throughput 38.68 Mpps
Memory and Processor ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
PoE Capability 195W
Operating Temperature 0-40°C, 0-10,000 ft
Management Features Aruba Instant On Cloud; Web browser; SNMP Manager
Warranty Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.
Weight 3.47 kg (7.65 lb)
Dimensions 25.30 x 44.30 x 4.39 cm (9.96 x 17.44 x 1.73 in)
