Description

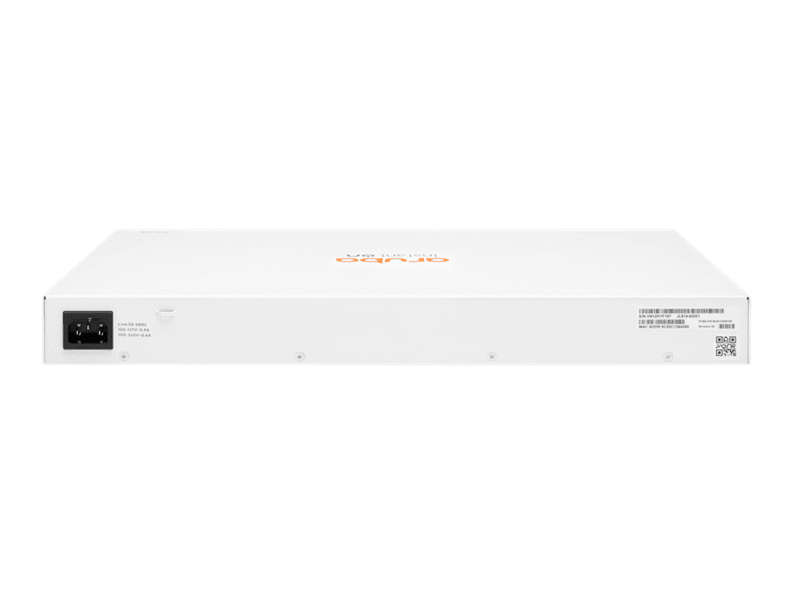

HPE Networking Instant On Switch 48p Gigabit 4p SFP 1830 [JL814A]
Aruba Instant On 1830 Switch Series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications.
This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands. These entry-level, smart-managed switches offer Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.
What's New
- Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models.
- Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments.
- Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
- Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
- Option to manage your switches through local web GUI.
- Cost-effective PoE Support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments.
Specifications
Feature | Description |
---|---|
Differentiator | Entry-level, smart-managed, Gigabit Layer 2 switches designed for small businesses. |
Easy-to-deploy, secure, and affordable solution. Setup, monitor, and manage through Instant On mobile app, cloud-based web portal, or local web GUI. | |
Power Consumption | Maximum: 100-127V: 40.2W, 200-220V: 40W; Idle: 100-127V: 17.7W, 200-220V: 17.7W |
Input Voltage | 100 - 240 VAC |
Ports | 48 RJ-45 10/100/1000 ports, 4 SFP 1GbE ports |
Switching Capacity | 104 Gbps |
Throughput | 77.37 Mpps |
Memory and Processor | ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB |
PoE Capability | - |
Operating Temperature | 0-40°C, 0-10,000 ft |
Management Features | Aruba Instant On Cloud; Web browser; SNMP Manager |
Warranty | Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration. |
Weight | 3.54 kg (7.80 lb) |
Dimensions | 25.30 x 44.30 x 4.39 cm (9.96 x 17.44 x 1.73 in) |
