Description

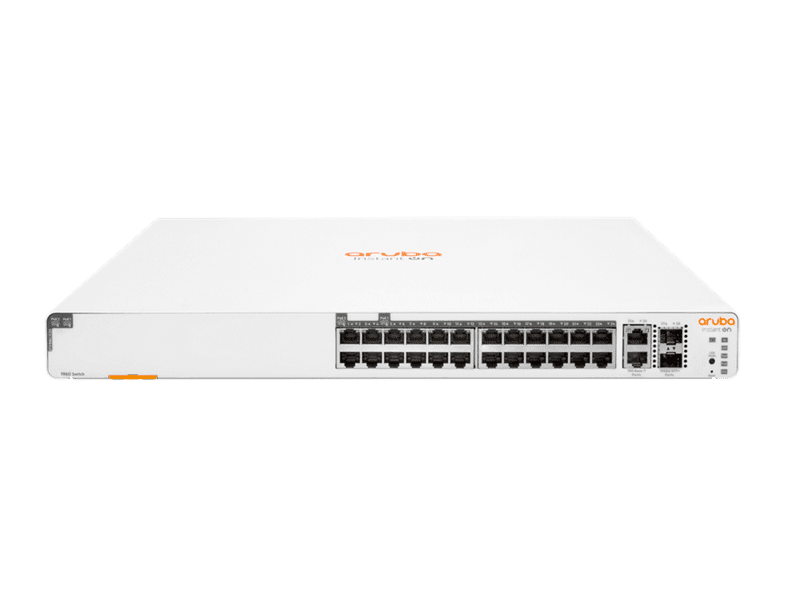

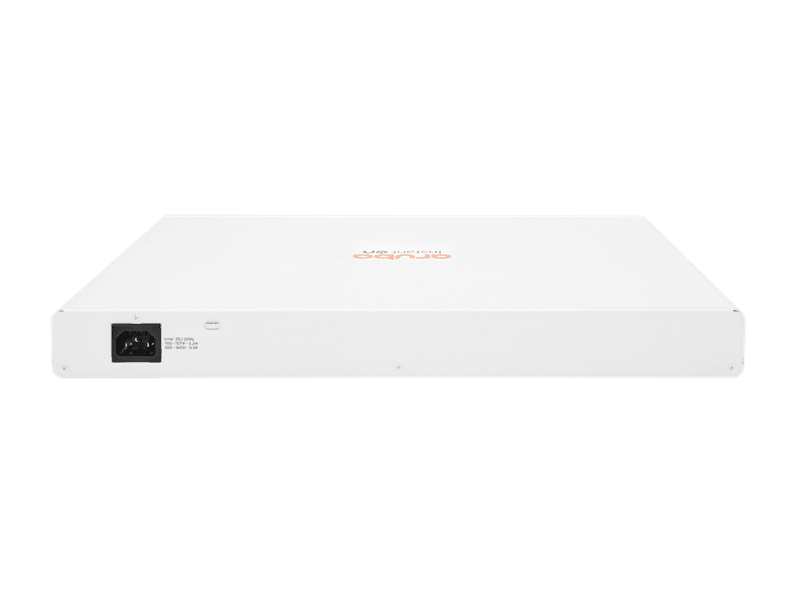

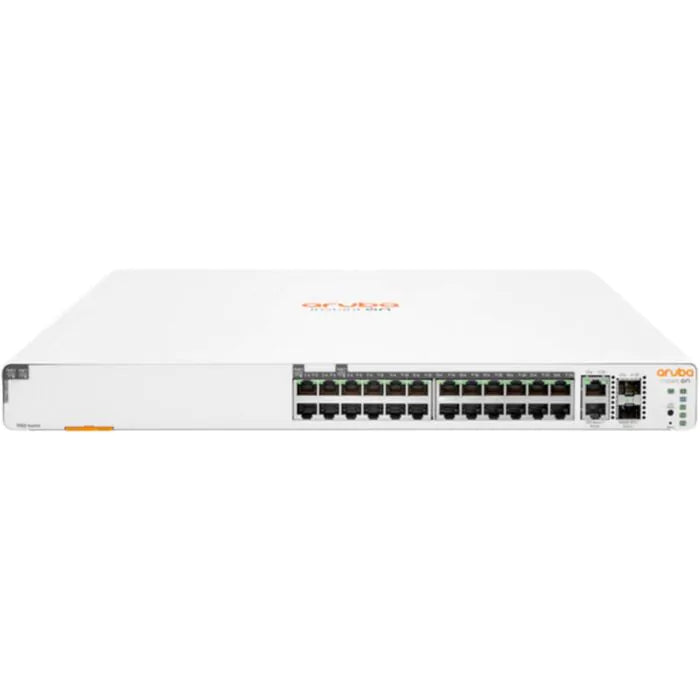

HPE Networking Instant On Switch 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W 1960
What's New
- Simplify network management by stacking up to (four) 4 Aruba Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
- Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
- The Aruba 1960 aggregation switch comes with twelve (12) 10GBase-T and four (4) SFP+ ports, providing 10G connectivity to servers, network storage devices and access switches alike.
- For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
- Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
- Limited Lifetime Warranty.
Key Features
High-level Gigabit with 10GbE Networking for Advanced Small Businesses
Each model of the Aruba Instant On 1960 Switch Series includes four 10GbE connections to connect to servers, network storage devices, or to other switches.
Two connections of 10GBASE-T deliver 10GbE over copper Category 5/6a cabling for simple, affordable, high-bandwidth connections to a maximum distance of 100 meters.
With PoE models, up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones, and up to 60W PoE power delivery is available for Class 6 PoE devices like pan-tilt zoom cameras and video-enabled IP-phones.
Simplify Network Deployment and Management for Small Organizations
The Aruba Instant On 1960 Switch series offers a complete portfolio for increased small business flexibility. It consists of six models including two (2) 24-port and two (2) 48-port models in PoE and non-PoE configurations, a 12-port multi-rate switch, and a 12-port 10-Gigabit aggregation switch.
The 12-port, 24-port, and 48-port PoE models come with a power budget of 480W, 370W and 600W respectively to support the latest PoE-powered IoT devices.
The Aruba Instant On 1960 Switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
Each switch has a pull-out tag, known as a luggage tag, on the front panel of the switch.
The tag includes a QR code that includes switch ID information (SKU number, SKU name, serial number, and MAC address) for easy switch onboarding through Instant On mobile app.
Ease of Use with Cloud-Managed Stacking
The Aruba Instant On mobile app and cloud-based web portal make cloud-managed stacking easy — just follow the recommendations to stack up to four (4) Aruba Instant On 1960 switches and manage as a single entity.
The Aruba Instant On mobile app automatically detects members, making multiple stack members easy to setup and manage remotely.
Automated configurations and streamlined workflows allow users to manage all stack members through one single dashboard without the need for device reboot.
Robust Security to Protect Your Network
The Aruba Instant On 1960 Switch Series lets you use VLANs and Access Control Lists to set bounds on what data can be seen by which users.
Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network.
Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
Specifications
Feature | Specification |
---|---|
Differentiator | High-performance, smart-managed stackable switch for small and growing businesses. Supports up to four 1960 switches at 1G and 10G speeds with single IP management. Set up, monitor, and manage locally or via cloud. |
Power Consumption |
Maximum: 500W (100-127V), 480W (200-220V) Idle: 40W (100-127V), 80W (200-220V) |
Input Voltage | 100 - 240 VAC |
Ports | 24 x RJ-45 10/100/1000 PoE (CL4 and CL6) ports, 2 x SFP+ 10GbE ports, 2 x 10GBASE-T ports |
Switching Capacity | 128 Gbps |
Stacking Capabilities | Stacks up to 4 units |
Throughput | 95 Mpps |
Memory and Processor | Single Core ARMv7 Cortex-A9 @ 800MHz |
PoE Capability | Total 370 W PoE Power Class 6: Up to 240 W Class 4: Up to 370 W |
Operating Temperature | 0 - 40°C, 0 - 10,000 ft |
Management Features | Aruba Instant On Cloud; Web browser; SNMP Manager |
Warranty | Limited Lifetime Warranty 24x7 phone support for 90 days Chat support for the entire warranty duration |
Weight | 4.7 kg (10.4 lb) |
Dimensions | 35.05 x 44.25 x 4.4 cm (13.80 x 17.42 x 1.73 in) |
